| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 750MHz | |
| ● | Pass Band Frequency | 600 ~ 900MHz | |
| ● | Pass Band Insertion Loss | ≤1.5dB | |
| ● | Pass Band Ripple | ≤0.6dB | |
| ● | Pass Band VSWR | ≤1.5:1 | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 350MHz | ≥70dB @ 1200 ~ 2700MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 20W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

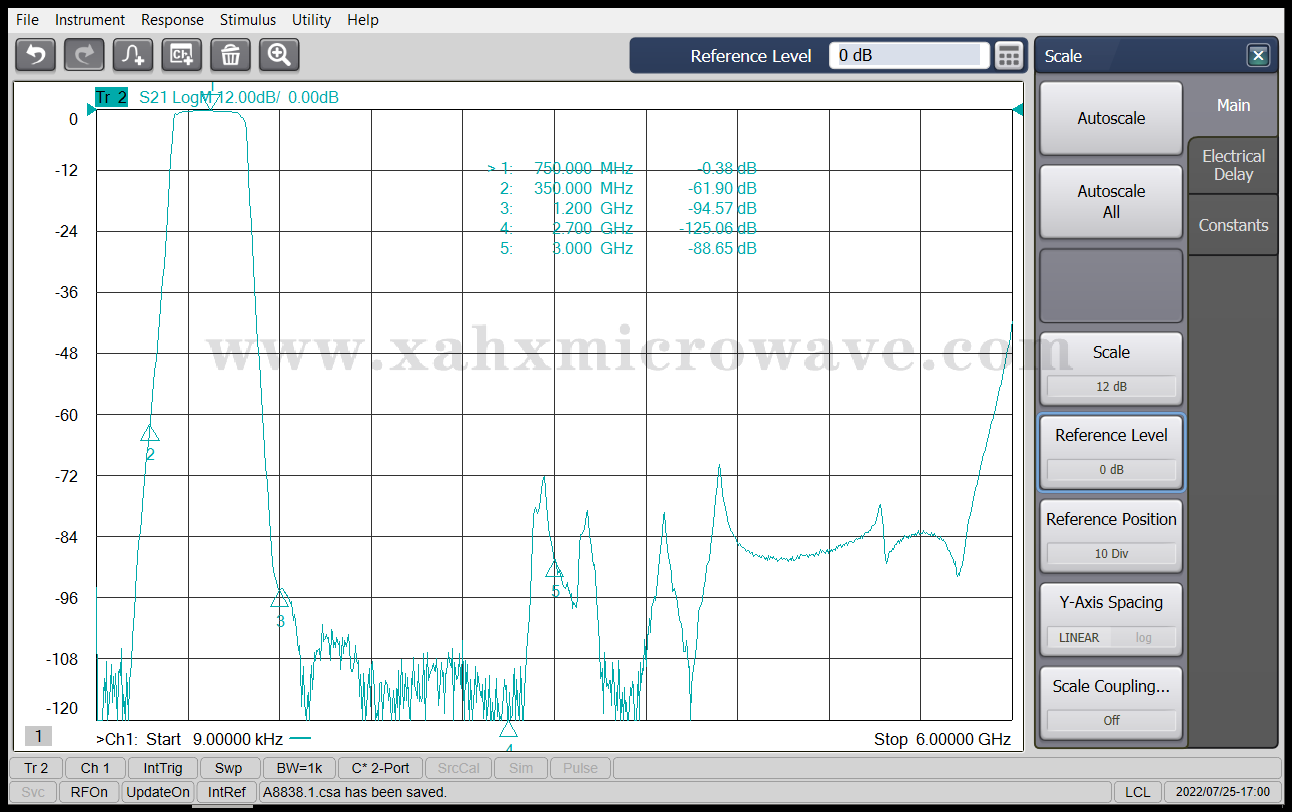

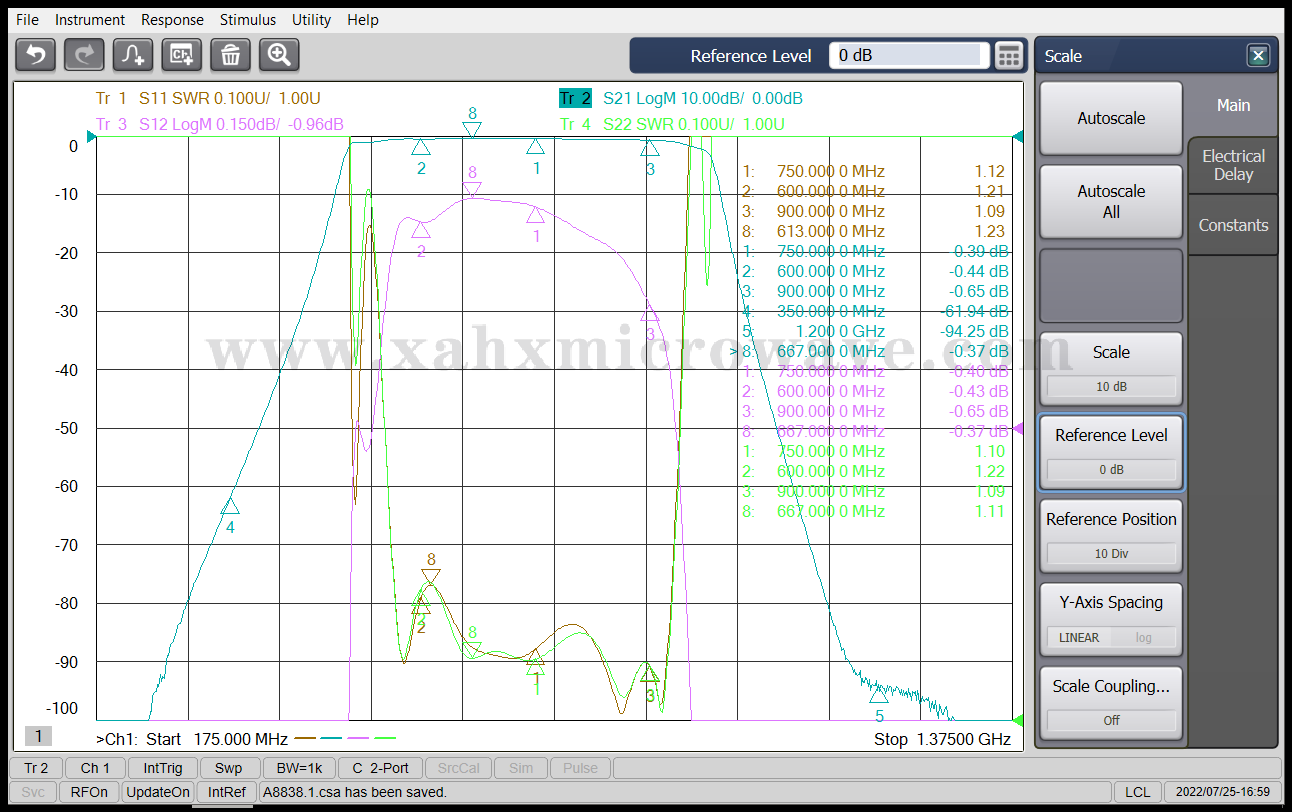

| Test Curve | |||
