Technical Data Sheet
●	Center Frequency(F0)	15.55GHz
●	Pass Band Frequency	14.8 ~ 16.3GHz
●	Pass Band Insertion Loss	≤1.7dB
●	Pass Band Ripple	≤0.8dB
●	Pass Band Return Loss	≥20dB
●	Stop Band Rejection	≥80dB @ DC ~ 14.15GHz	≥50dB @ 16.7 ~ 16.95GHz
		≥50dB @ 14.15 ~ 14.4GHz	≥80dB @ 16.95 ~ 27GHz
●	Impedance	50 Ohms
●	Power Handling	5.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black

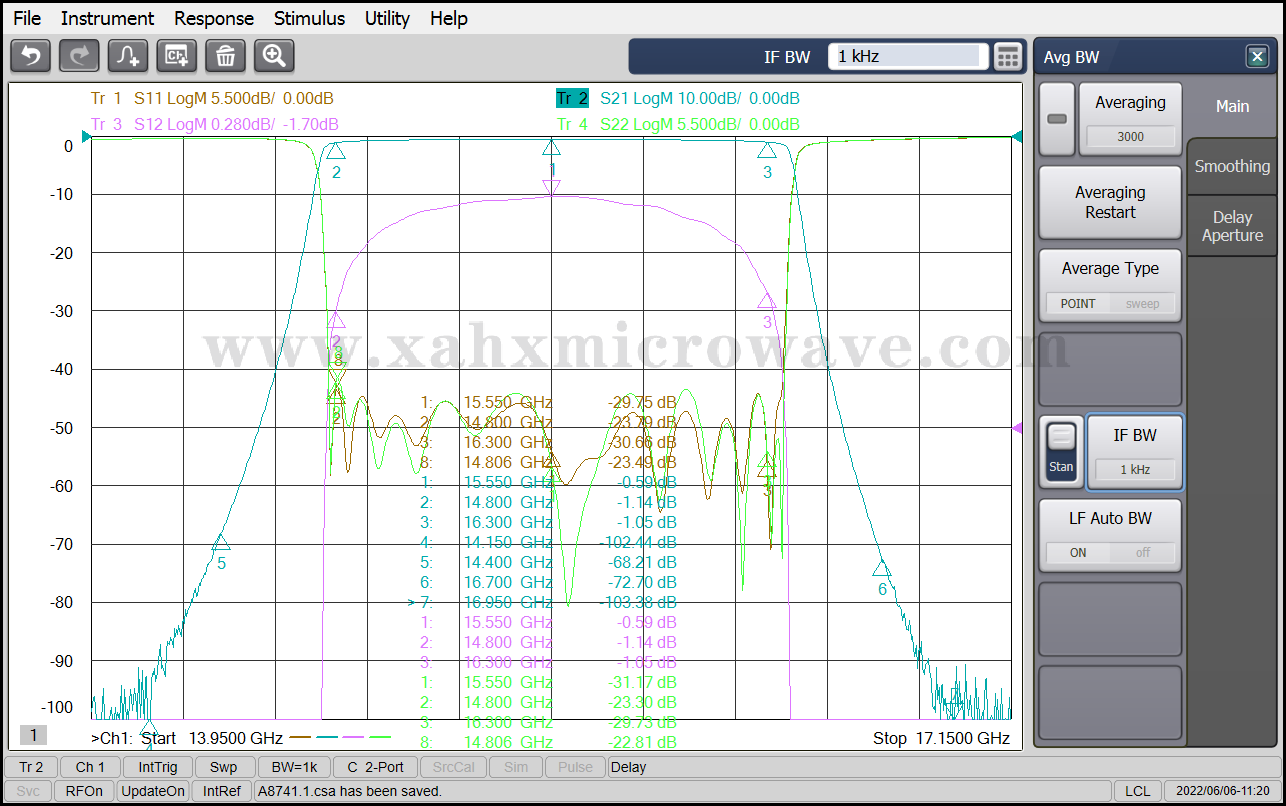

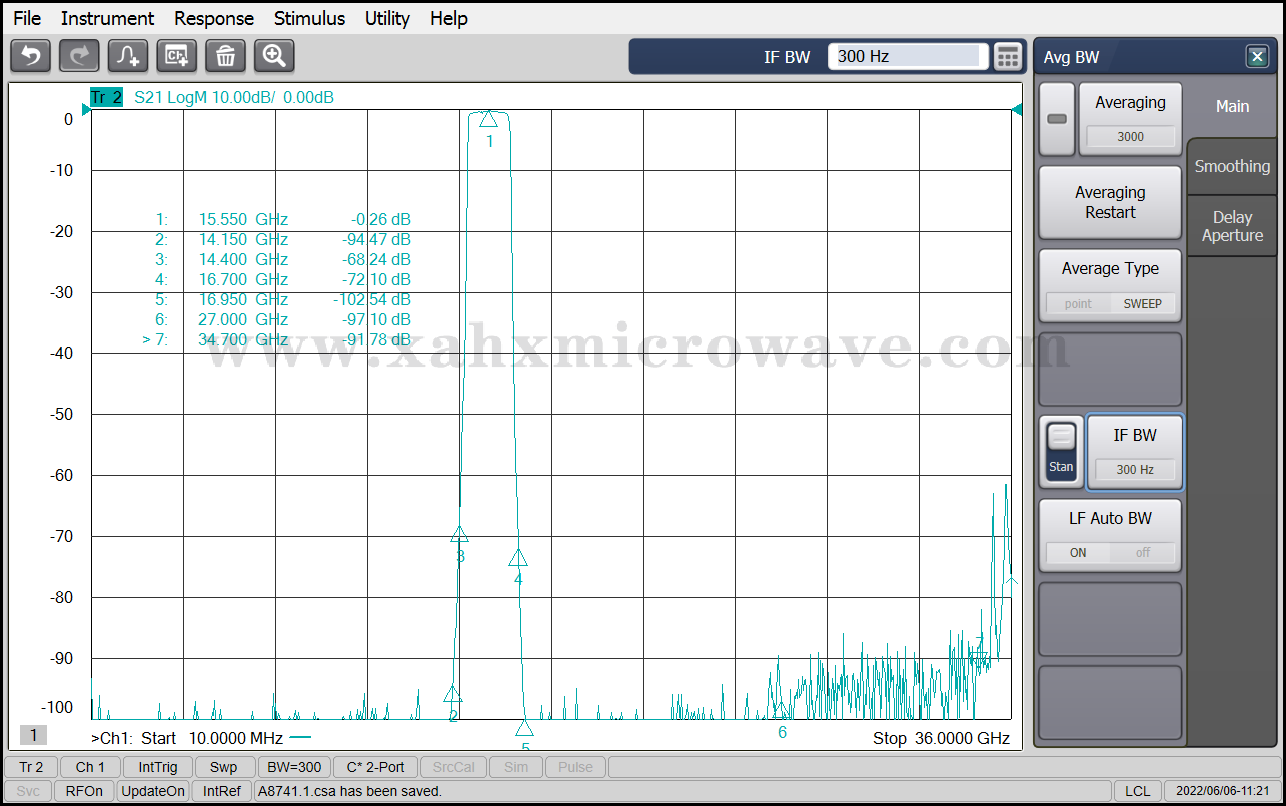

Test Curve
