| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 100MHz | |
| ● | 1.0dB Pass Band Bandwidth | 10MHz (95 ~ 105MHz) | |
| ● | Pass Band Insertion Loss | ≤2.0dB | |
| ● | Pass Band VSWR | ≤1.5:1 | |
| ● | Stop Band Attenuation | ≥60dB @ DC ~ 60MHz | ≥60dB @ 145 ~ 300MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 1.0W Max. | |
| ● | Connectors | ø0.5*10mm PIN | |
| ● | Surface Finish | The Original Silver Color | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

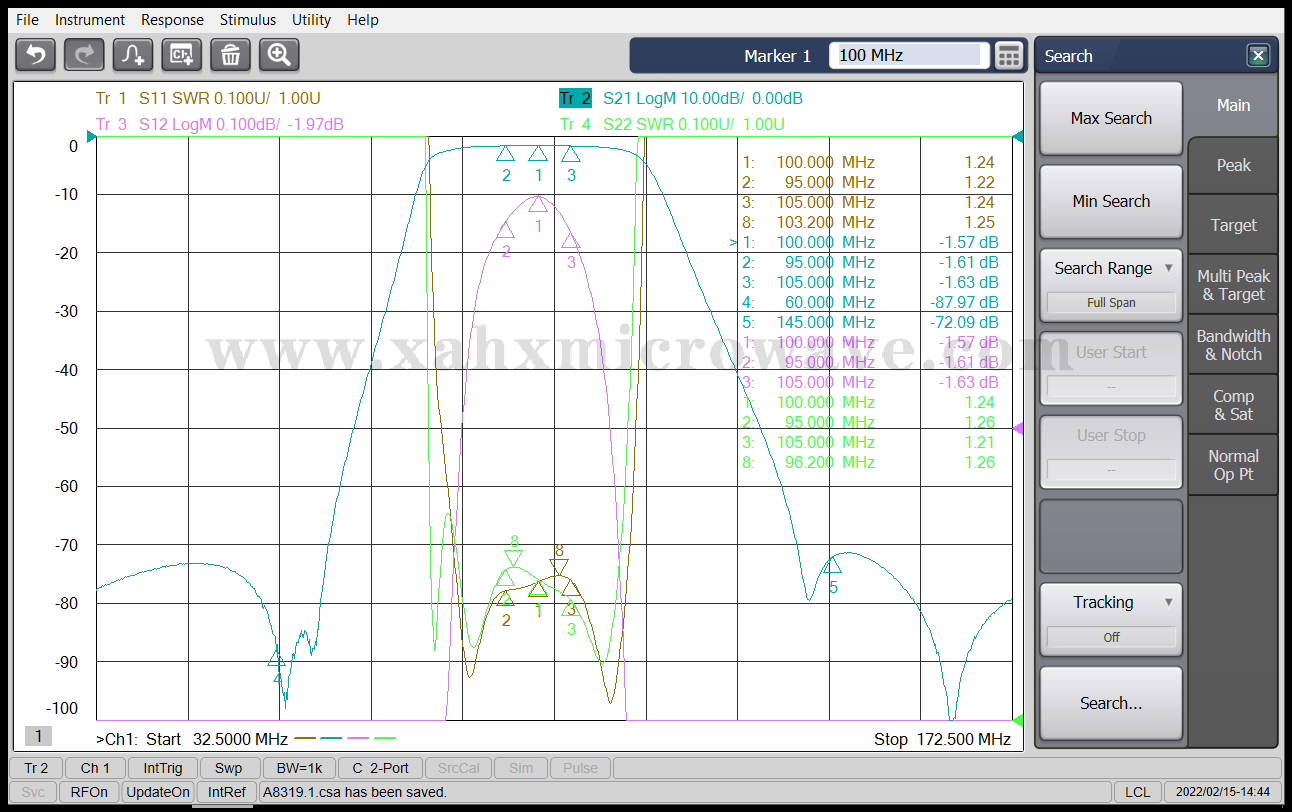

| Test Curve | |||
