| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 875MHz | |
| ● | Pass Band Frequency | 750 ~ 1000MHz | |
| ● | Pass Band Insertion Loss | ≤2.0dB | |
| ● | Pass Band Ripple | ≤1.0dB | |
| ● | Pass Band VSWR | ≤1.5:1 | |
| ● | Stop Band Attenuation | ≥70dB @ DC ~ 600MHz | ≥70dB @ 1150 ~ 2000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

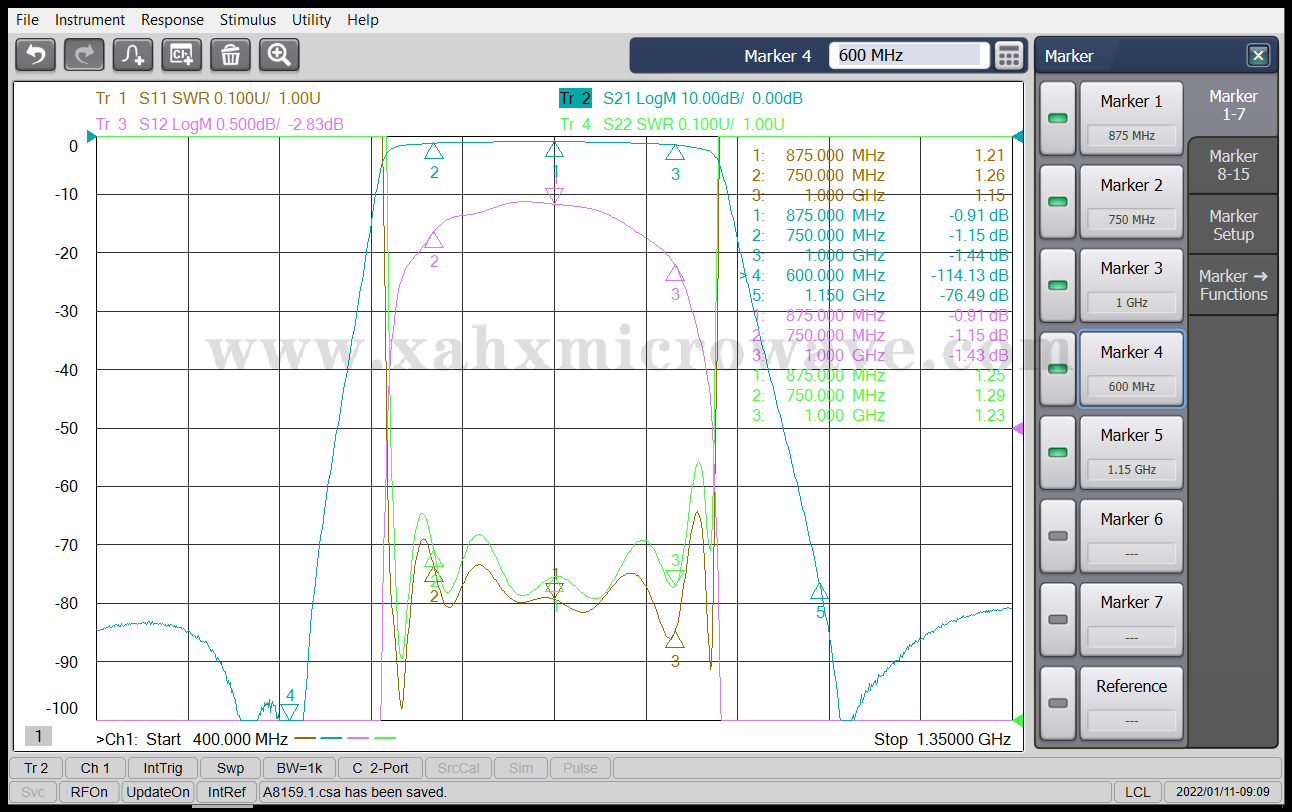

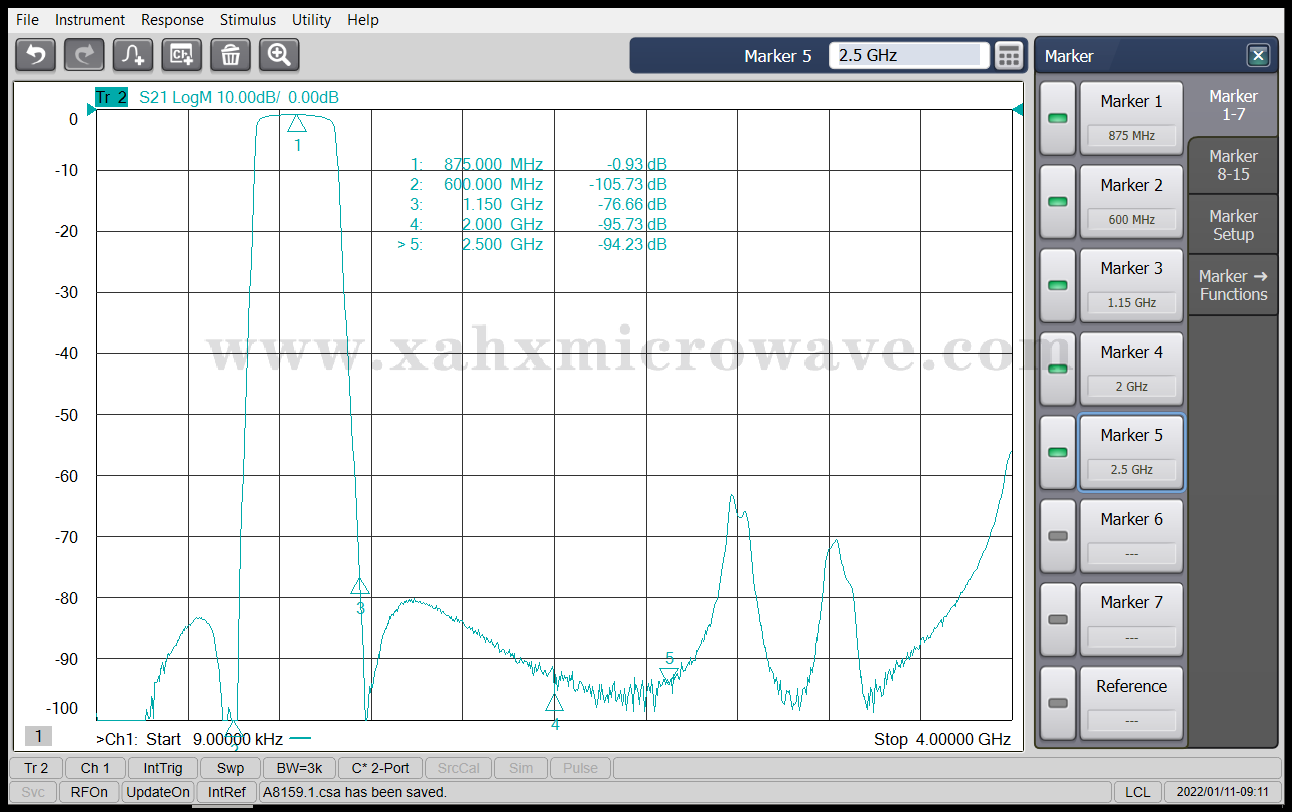

| Test Curve | |||
