S/N

Item

Parameters

1

Center Frequency(F0)

9.9GHz

2

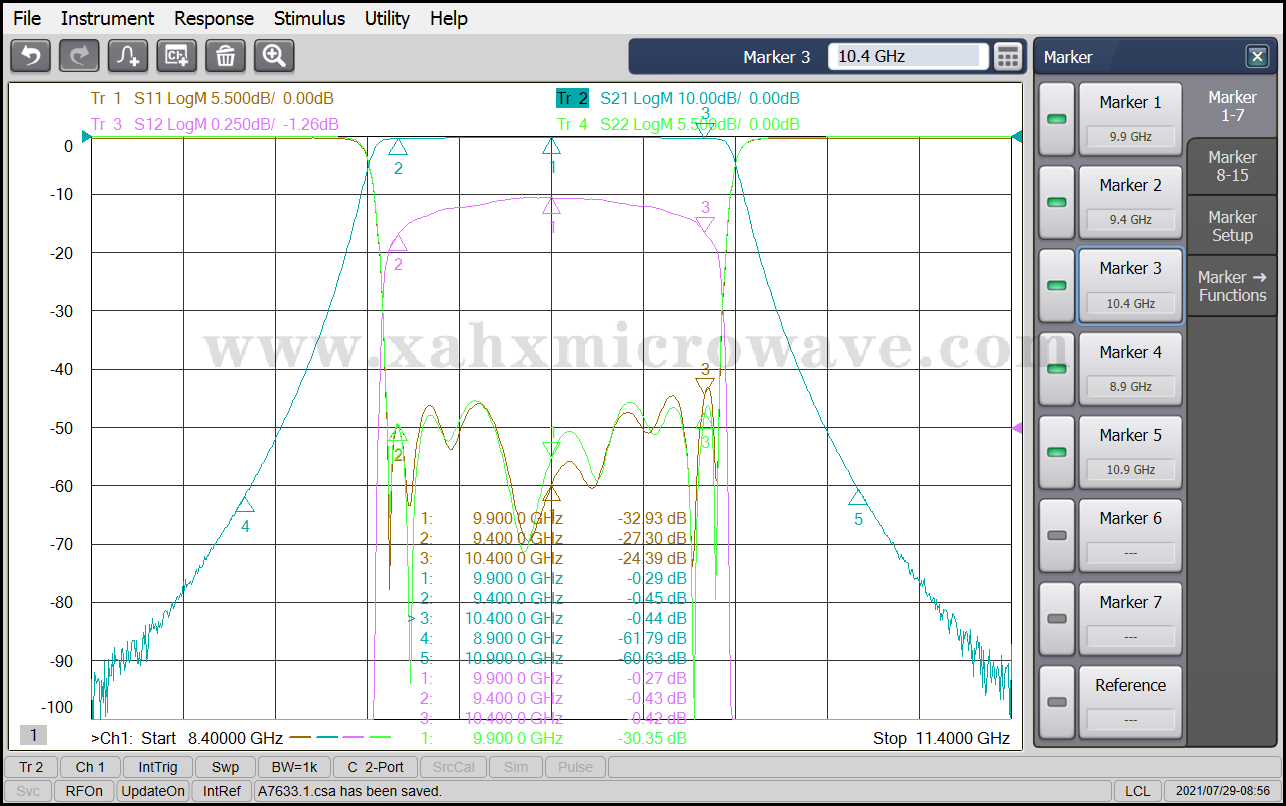

Pass Band Frequency

9.4 ~ 10.4GHz

3

Pass Band Insertion Loss

≤1.0dB

4

Pass Band Ripple

≤0.5dB

5

Pass Band Return Loss

≥20dB

6

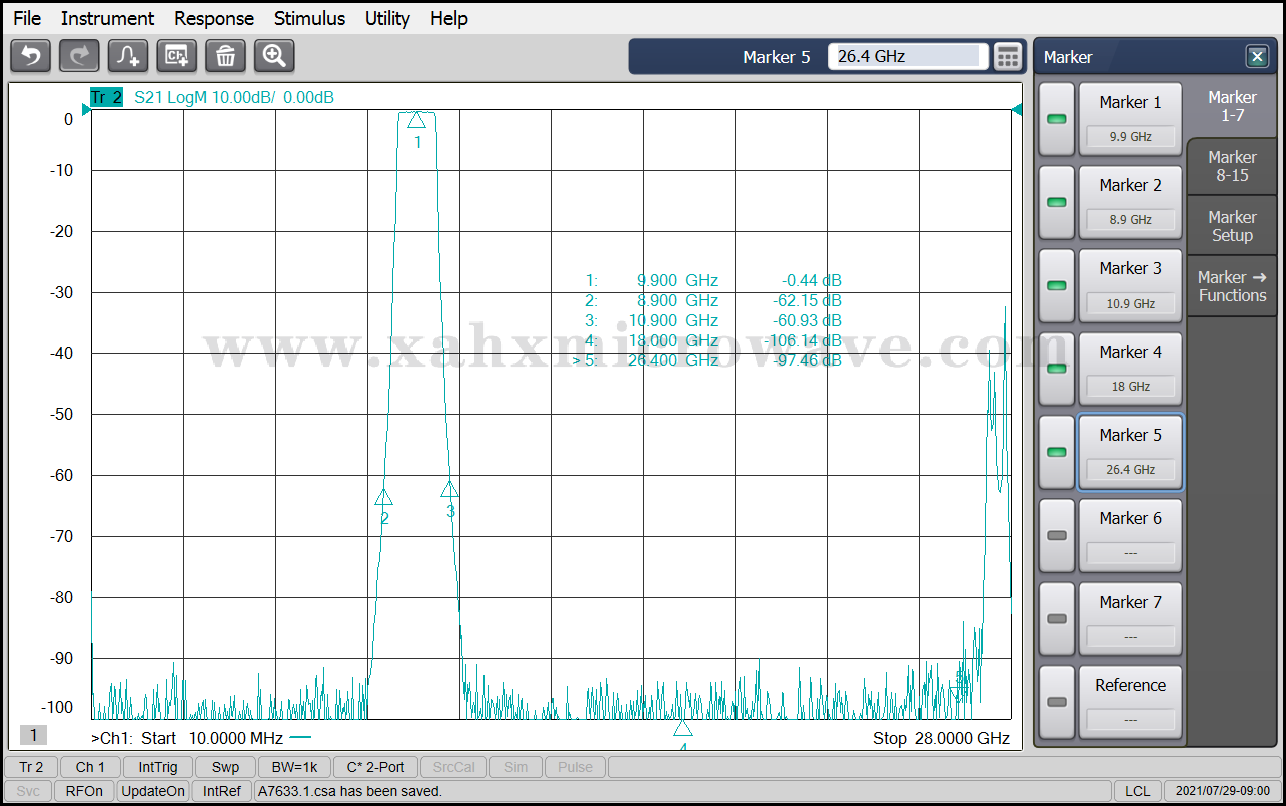

Stop Band Rejection

≥50dB @ DC ~ 8.9GHz

≥50dB @ 10.9 ~ 18GHz

7

Impedance

50 Ohms

8

Power

5W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
