Serial

Parameters

1

Center Frequency(F0)

5.0GHz

2

3.0dB Pass Band Frequency

≈4.0～6.0GHz

3

1.0dB Pass Band Frequency

4.2～5.7GHz

4

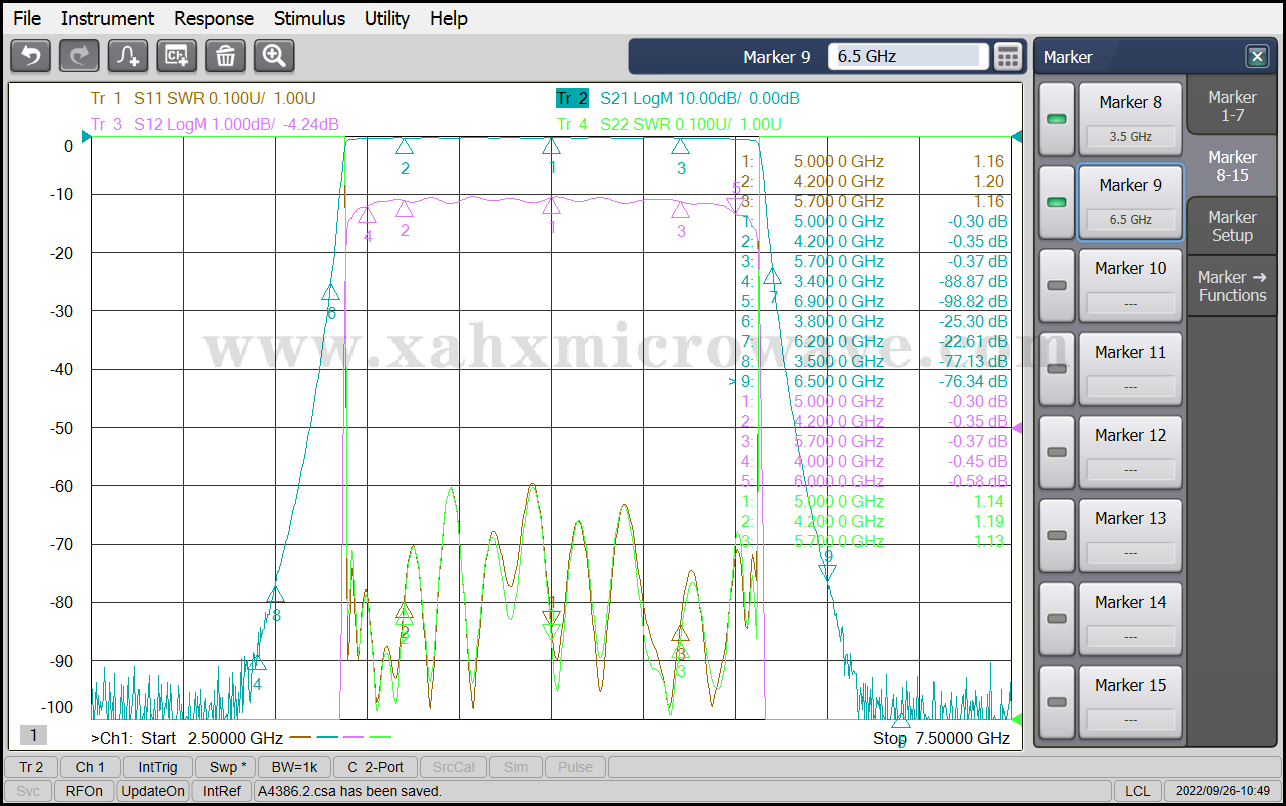

Pass Band Insertion Loss

≤1.0dB

5

Pass Band VSWR

≤1.7:1

6

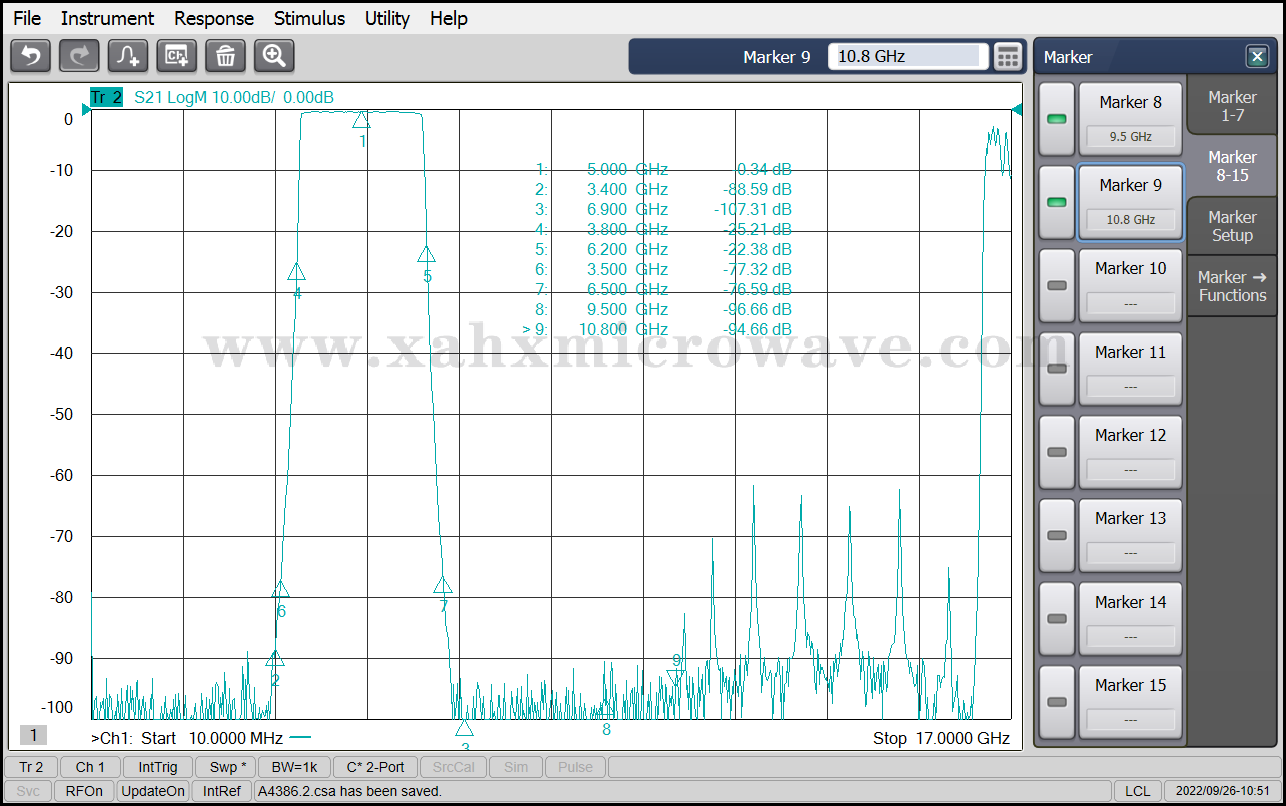

Stop Band Rejection

≥45dB @ DC～3.4GHz

≥45dB @ 6.9～9.5GHz

≥10dB @ 3.8GHz & 6.2GHz

≥60dB @ 3.5GHz & 6.5GHz

7

Impedance

50 ohms

8

Power Handling

≤15W

9

Connectors

SMA-Female

10

Surface Finish

Black Paint

11

Net Weight

TBD

12

Configuration

As Below (Size Unit: mm)
