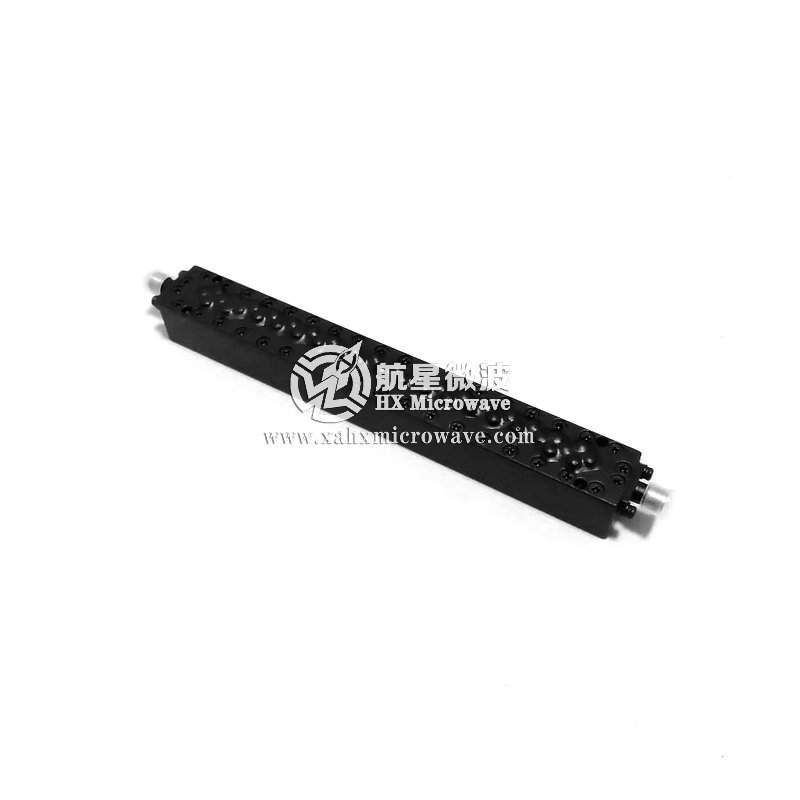

Comb Band Pass Filter

Technical Data Sheet

S/N	Item	Parameters
1	Center Frequency(F0)	4.25GHz
2	Pass Band Frequency	3.9 ~ 4.6GHz
3	Pass Band Insertion Loss	≤2.0dB
4	Pass Band VSWR	≤1.3:1
5	Stop Band Rejection	≥60dB @ DC ~ 3.7GHz	≥60dB @ 4.8 ~ 9.0GHz
6	Impedance	50 Ohms
7	Power	5W Max.
8	Connectors	SMA-Female
9	Surface Finish	Painted Black
10	Temperature Range	-20℃ ~ +60℃
11	Material	Housing: H62 Copper alloy Cover: H62 Copper alloy Tuning screw: H62 Copper alloy	Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel
12	Dimensions	140*20*15.5mm
13	Net weight	TBD
