| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 1.25GHz | |
| ● | Pass Band Frequency | 1.0 ~ 1.5GHz | |
| ● | Pass Band Insertion Loss | ≤1.0dB @ 1.0 ~ 1.5GHz | |
| ● | Pass Band Ripple | ≤0.6dB | |
| ● | Pass Band Return Loss | ≥14dB | |
| ● | Stop Band Rejection | ≥70dB @ DC ~ 0.9GHz | ≥70dB @ 1.6 ~ 2.3GHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

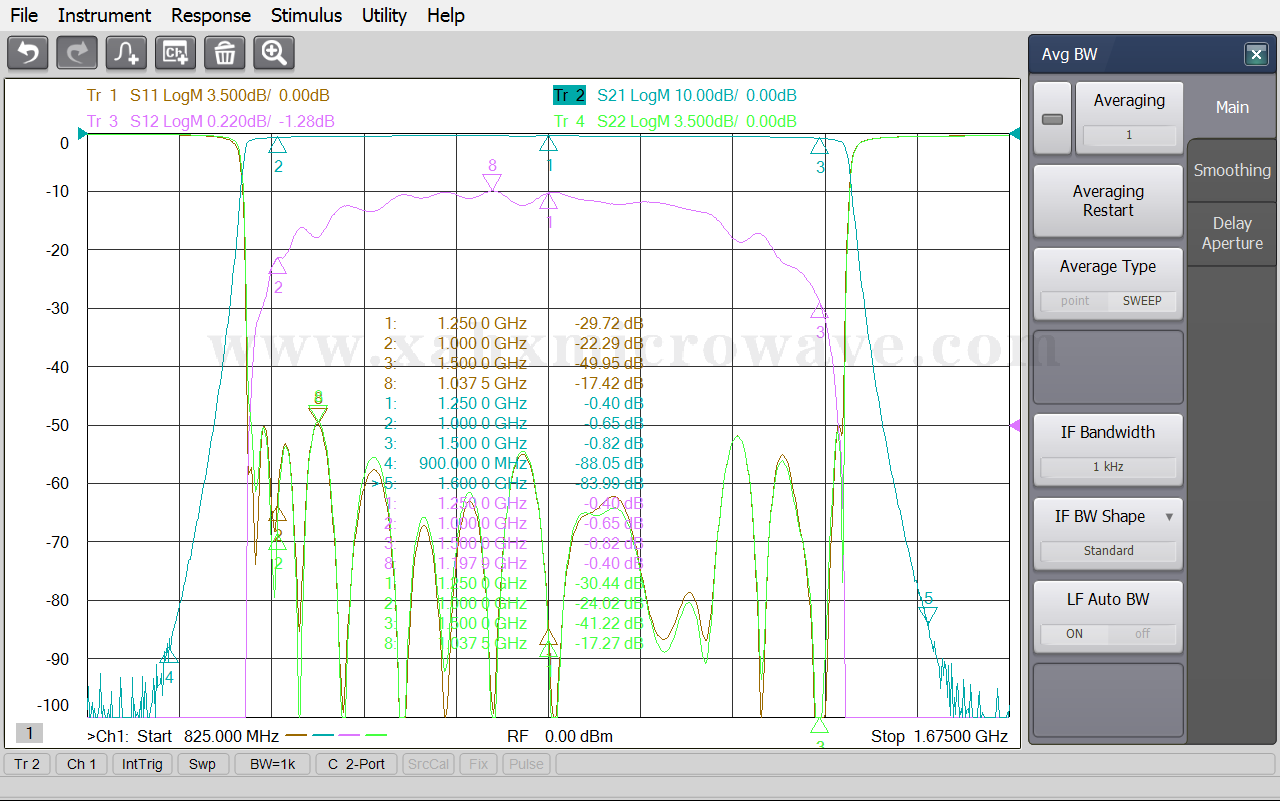

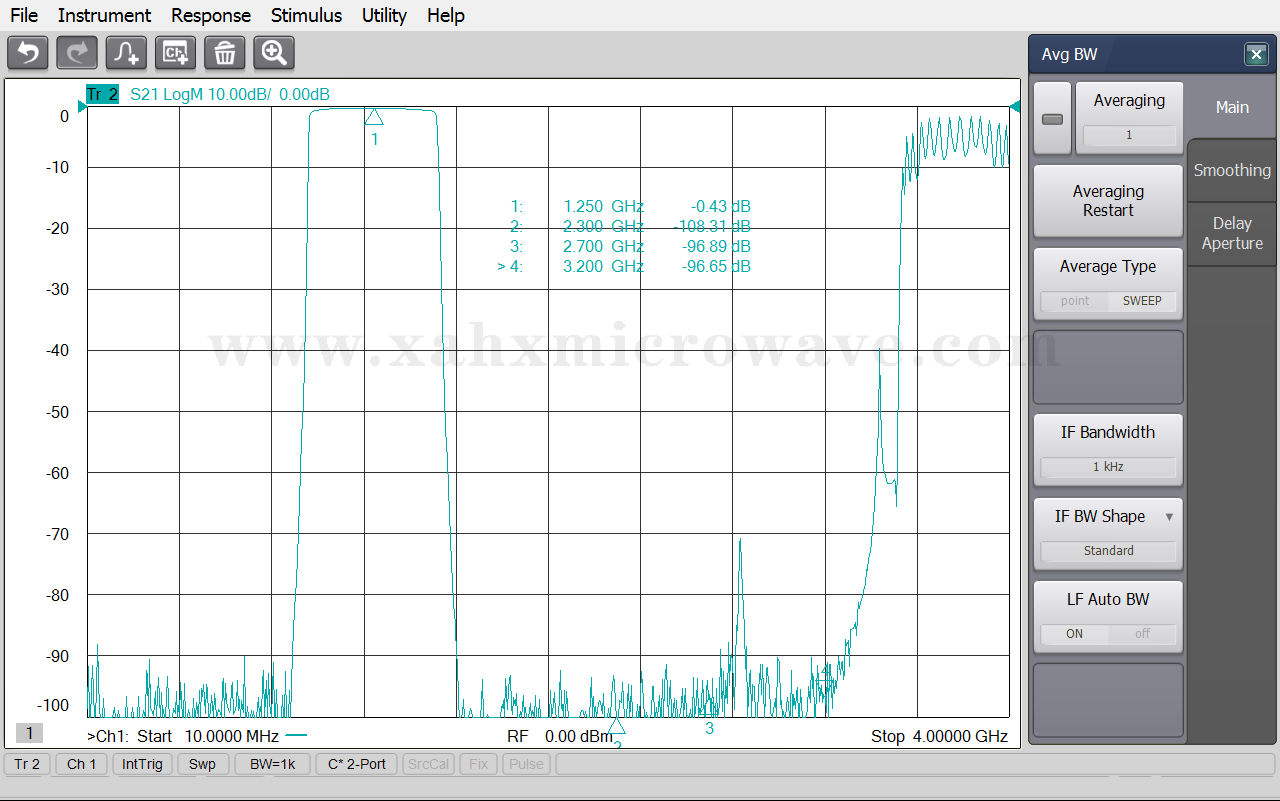

| Test Curve | |||
