| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 3031MHz | |
| ● | Pass Band Frequency | 3021 ~ 3041MHz | |
| ● | Pass Band Insertion Loss | ≤3.2dB | |
| ● | Pass Band Ripple | ≤0.65dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 2971MHz | ≥40dB @ 3061 ~ 3091MHz |
| ≥40dB @ 2971 ~ 3001MHz | ≥80dB @ 3091 ~ 12000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

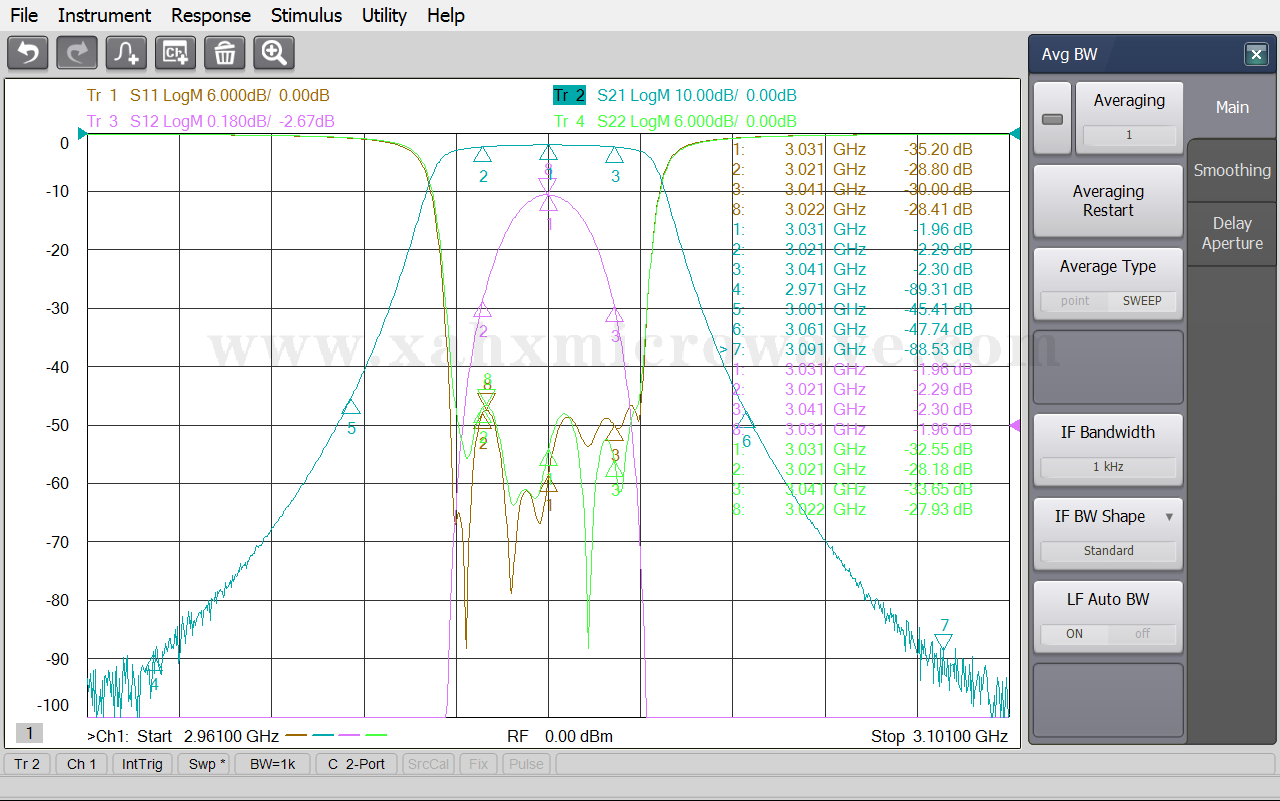

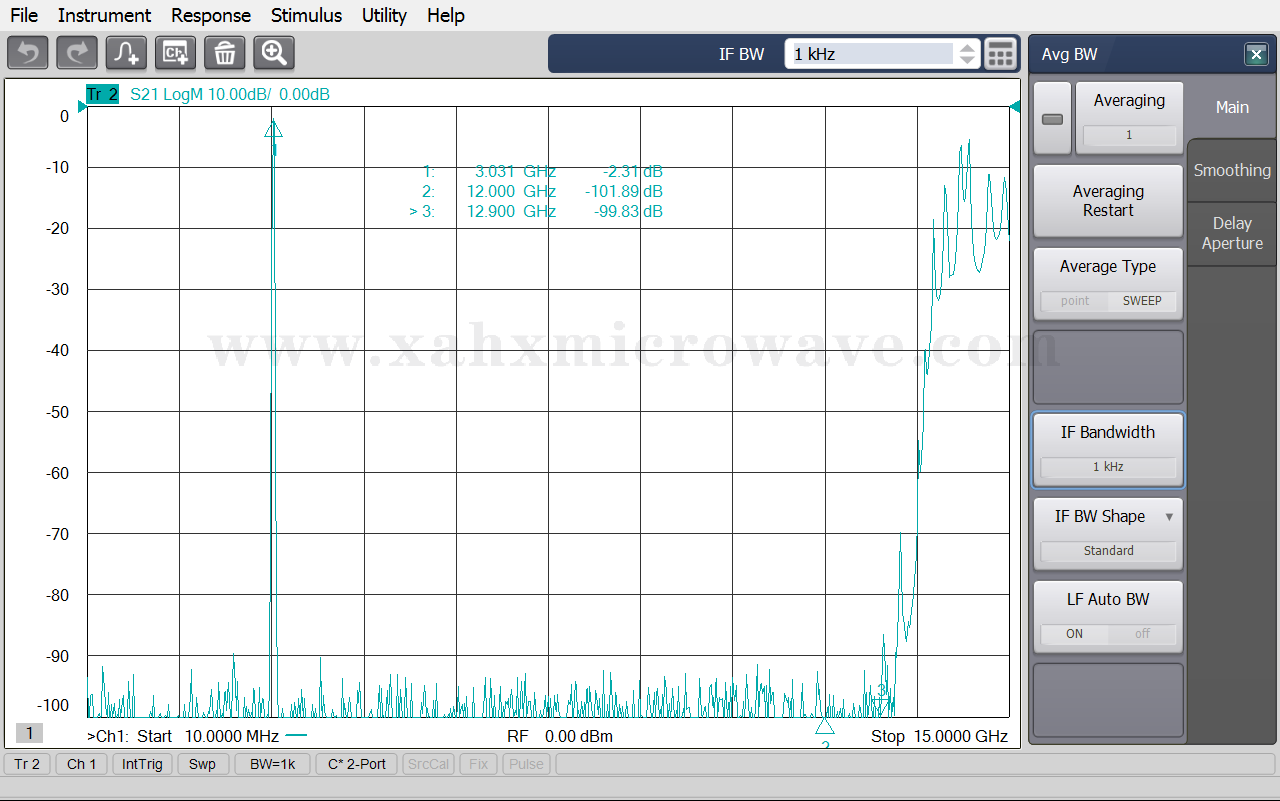

| Test Curve | |||
