| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 1892MHz | |
| ● | Pass Band Frequency | 1884 ~ 1900MHz | |
| ● | Pass Band Insertion Loss | ≤3.5dB | |
| ● | Pass Band Ripple | ≤1.8dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Rejection | ≥30dB @ DC ~ 1879MHz | ≥30dB @ 1905 ~ 5000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 20W Max. | |
| ● | Connectors | N-Female | |
| ● | Surface Finish | Painted Black | |

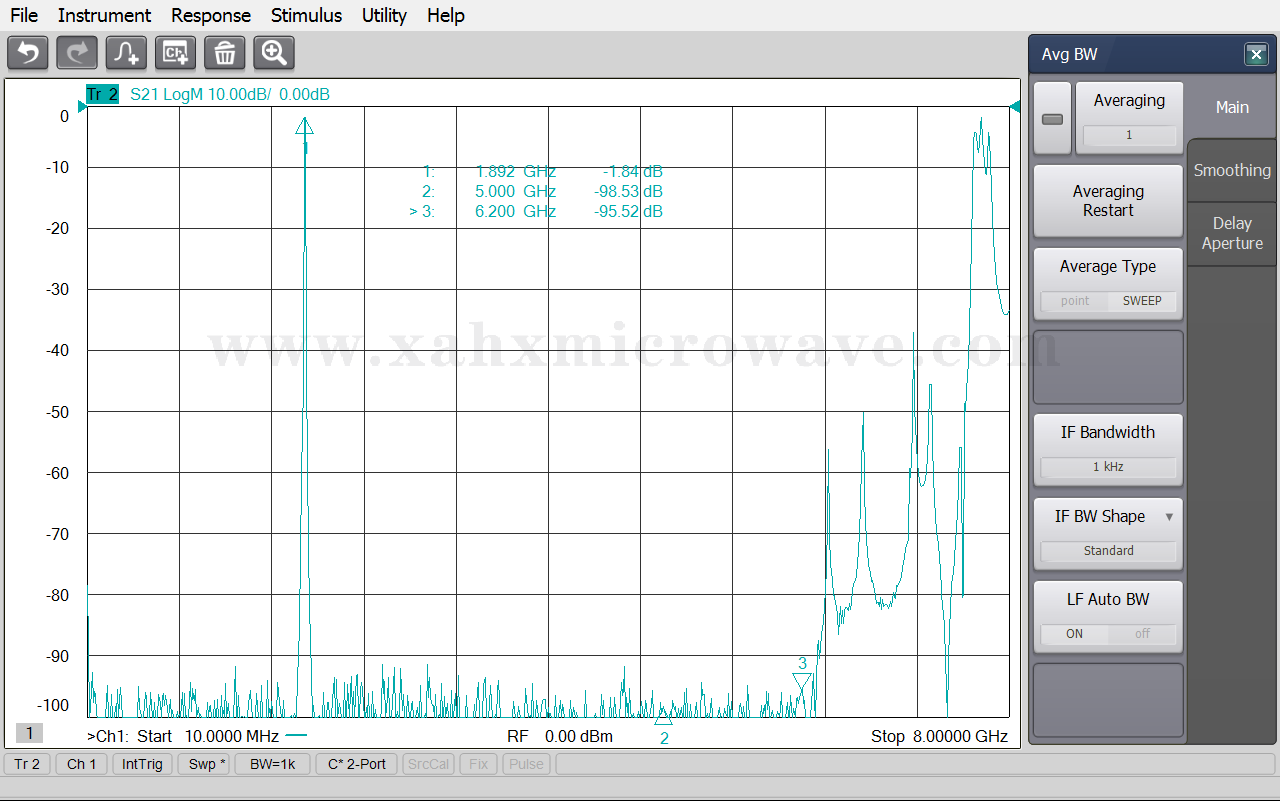

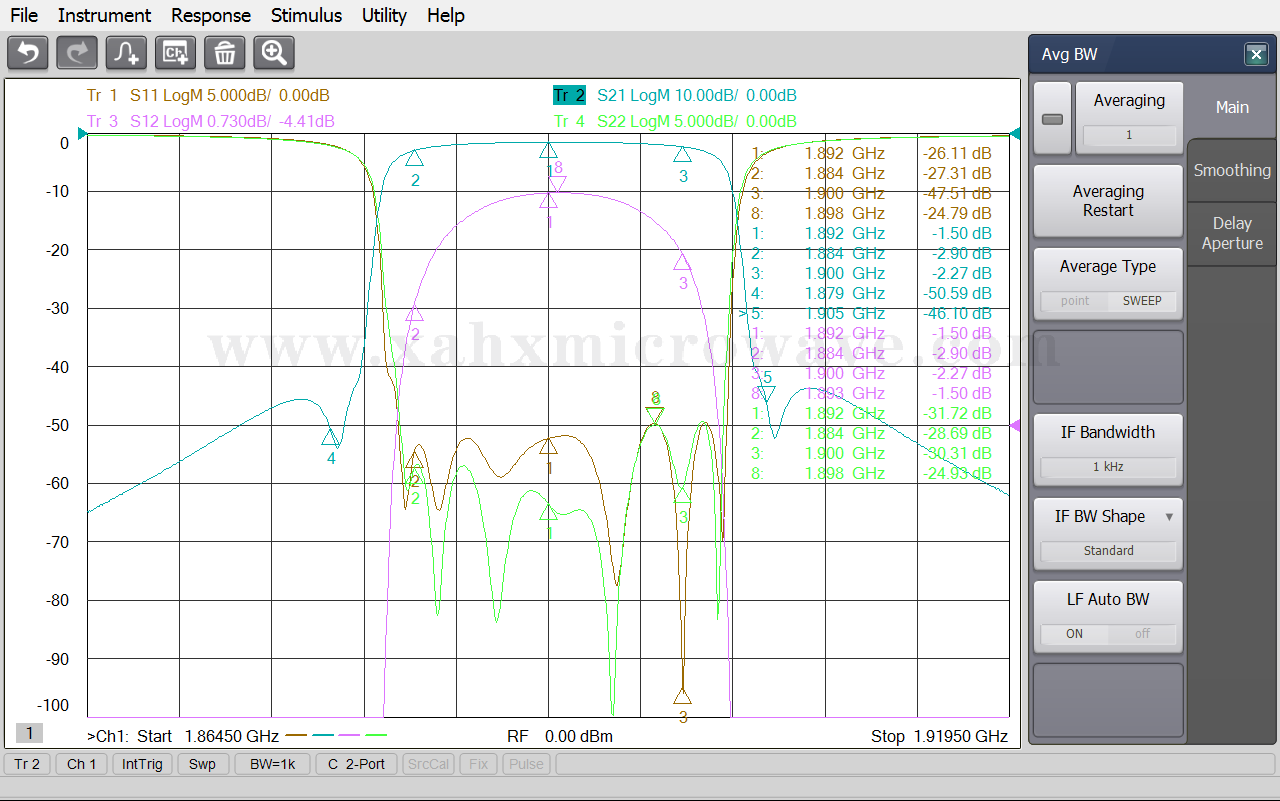

| Test Curve | |||
