| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 1350MHz | |
| ● | Pass Band Frequency | 1050 ~ 1650MHz | |
| ● | Pass Band Insertion Loss | ≤1.0dB | |
| ● | Pass Band Ripple | ≤0.5dB | |
| ● | Pass Band Return Loss | ≥14dB | |
| ● | Pass Band Group Delay | ≤18ns | |
| ● | Stop Band Rejection | ≥50dB @ DC ~ 950MHz | ≥50dB @ 1750~ 3000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 20W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

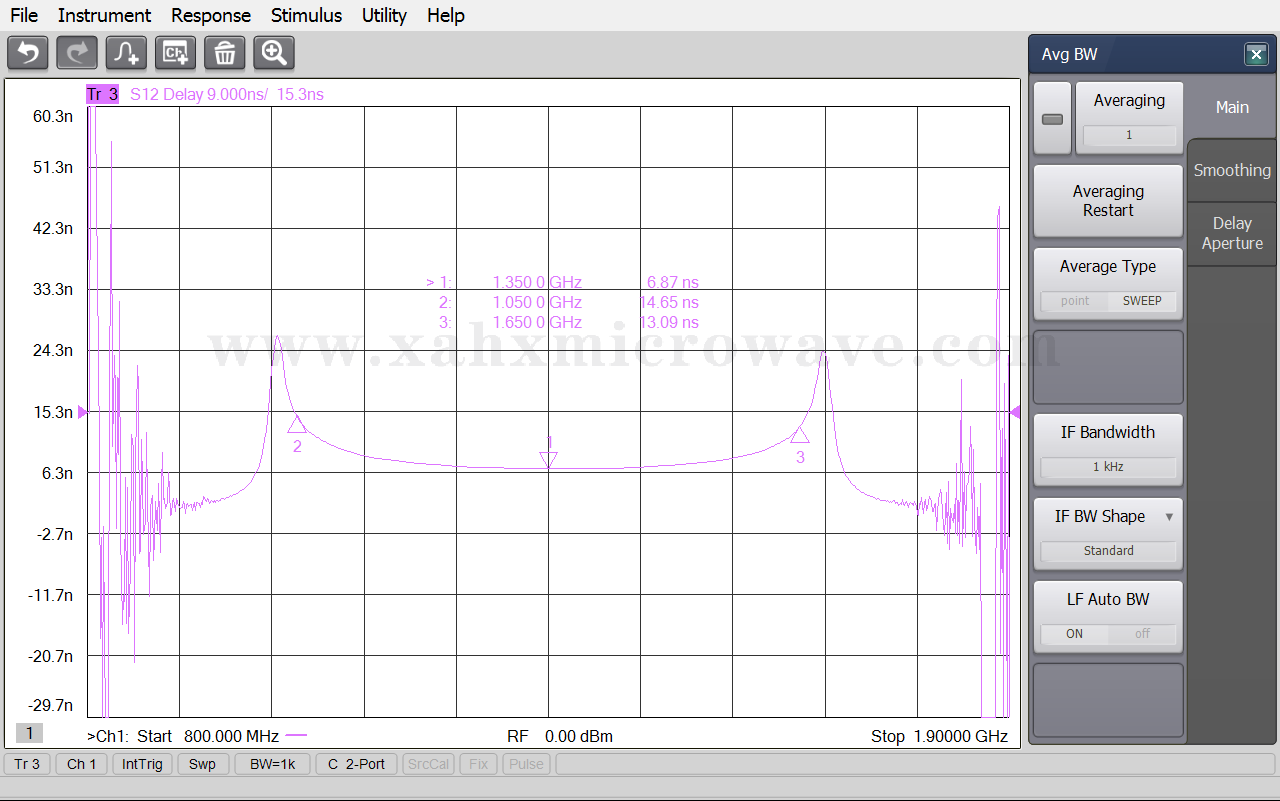

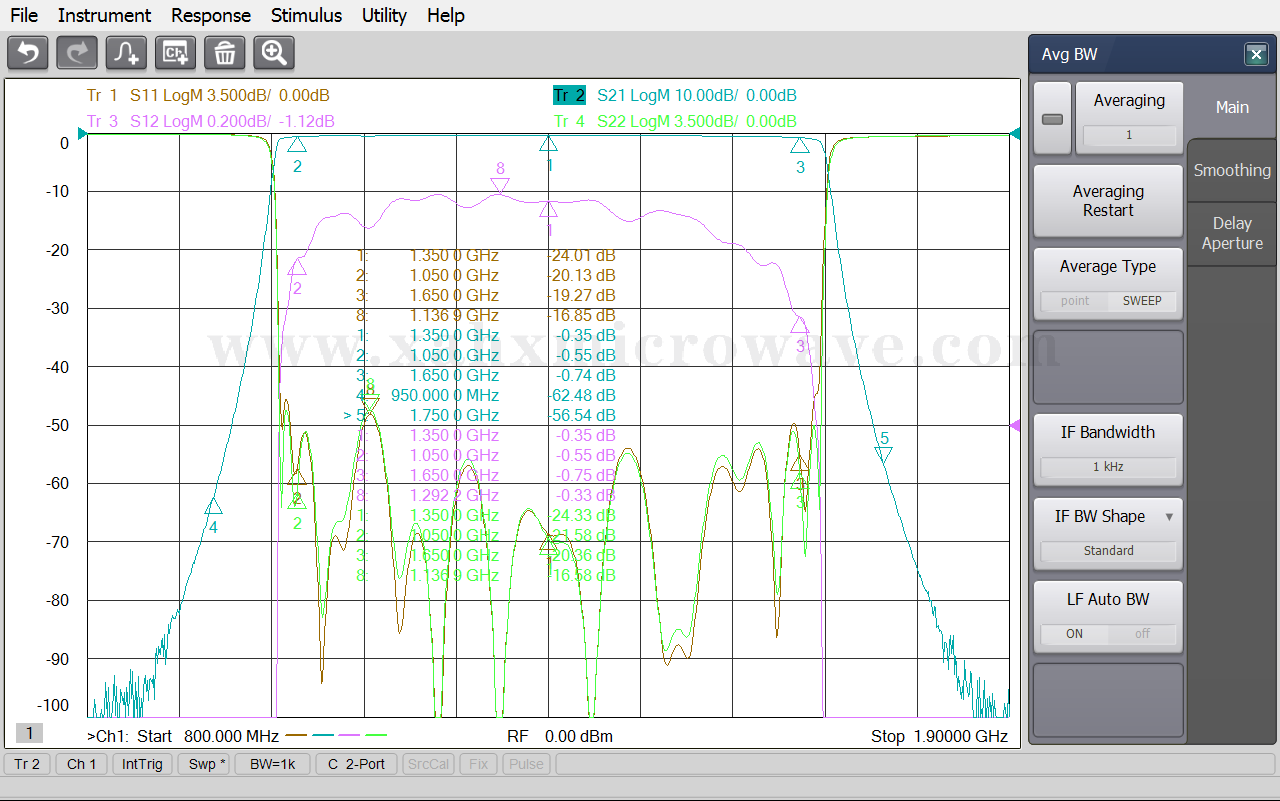

| Test Curve | |||
