| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 620MHz | |
| ● | Pass Band Frequency | 420 ~ 820MHz | |
| ● | Pass Band Insertion Loss | ≤1.5dB | |
| ● | Pass Band Ripple | ≤1.0dB | |
| ● | Pass Band VSWR | ≤1.5:1 | |
| ● | Stop Band Rejection | ≥50dB @ DC ~ 330MHz | ≥50dB @ 930 ~ 2000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | N-Male / N-Female | |

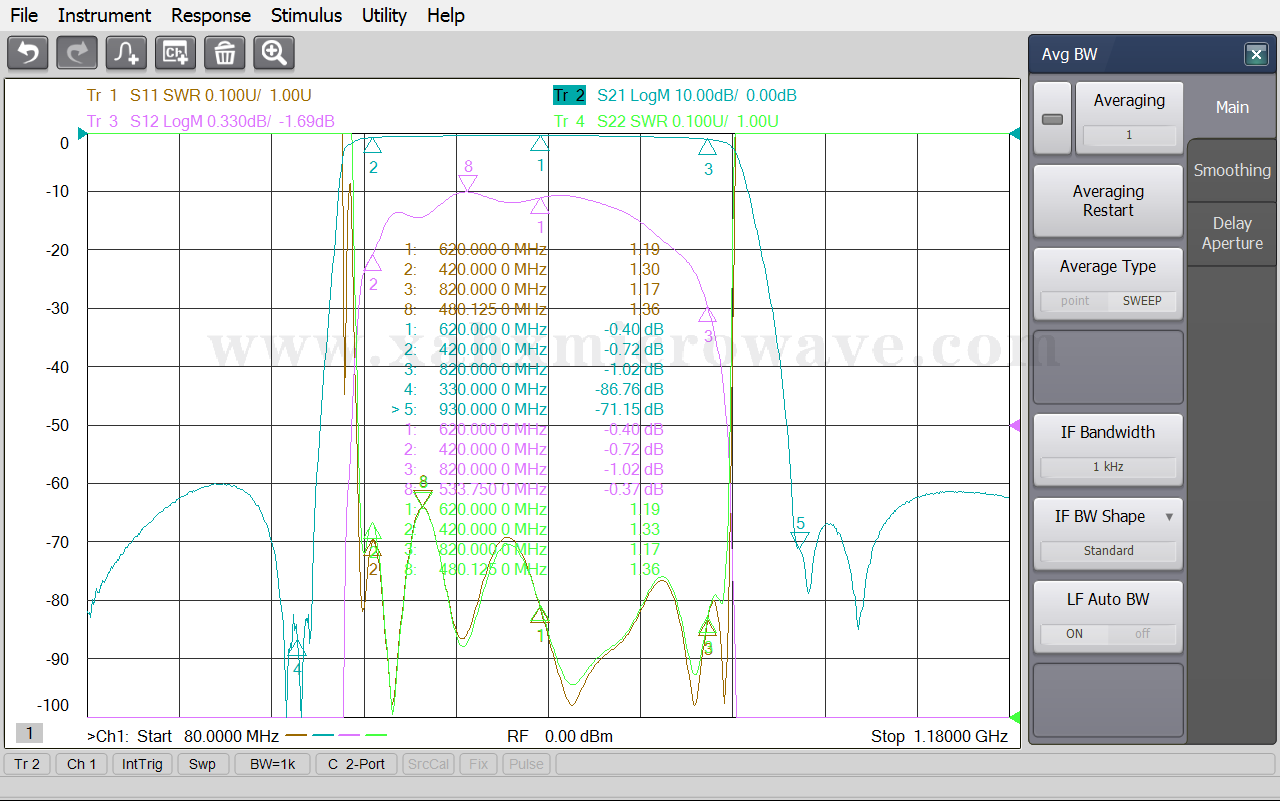

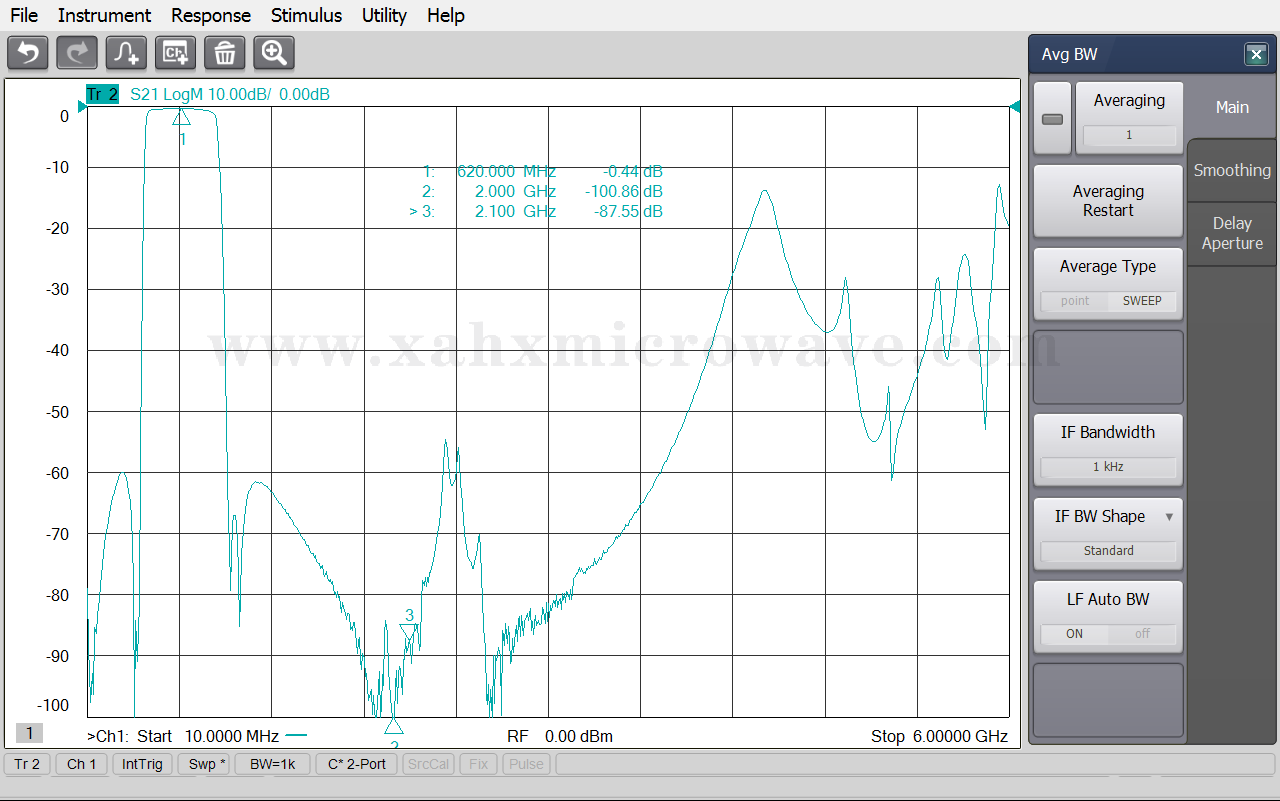

| Test Curve | |||
