| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 6640MHz | |
| ● | Pass Band Frequency | 6615 ~ 6665MHz | |
| ● | Pass Band Insertion Loss | ≤1.5dB | |
| ● | Pass Band Ripple | ≤0.4dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 6305MHz | ≥40dB @ 6815 ~ 6975MHz |
| ≥40dB @ 6305 ~ 6465MHz | ≥80dB @ 6975 ~ 15000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -20℃ ~ +60℃ | |

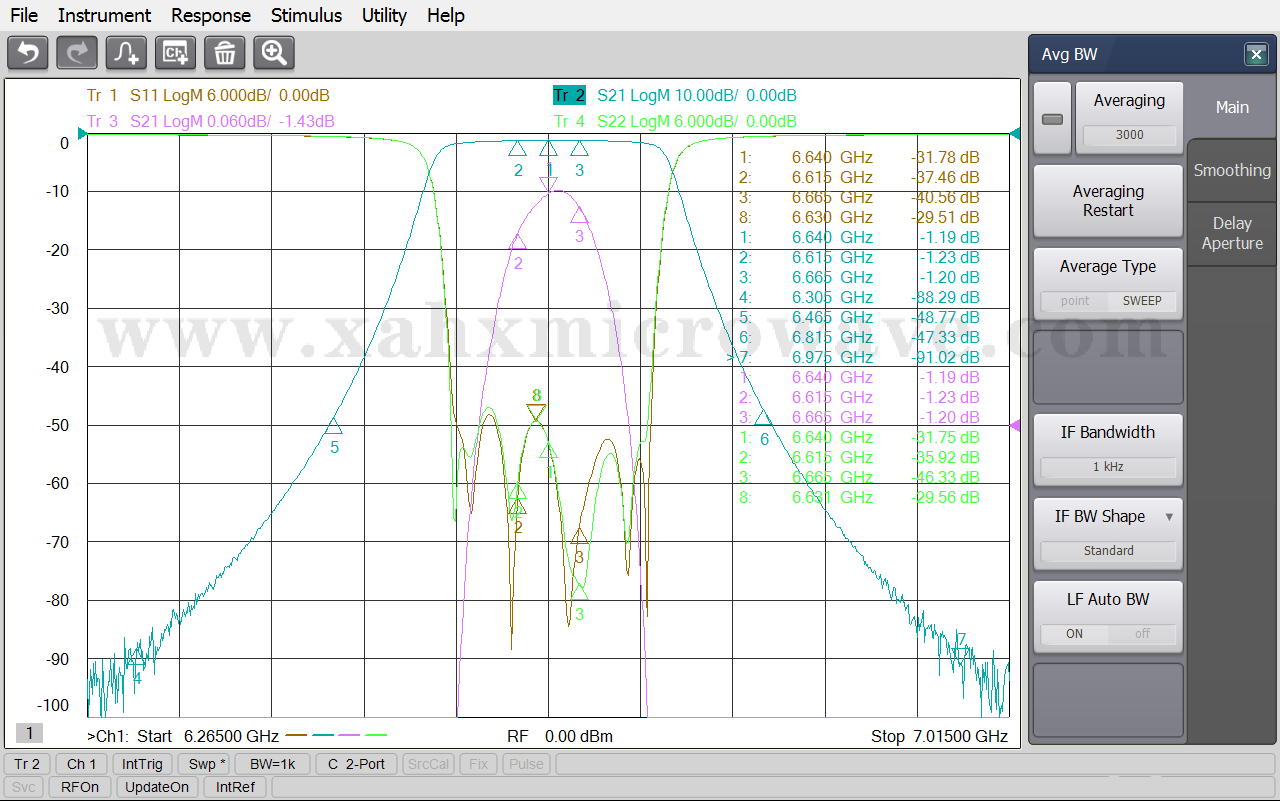

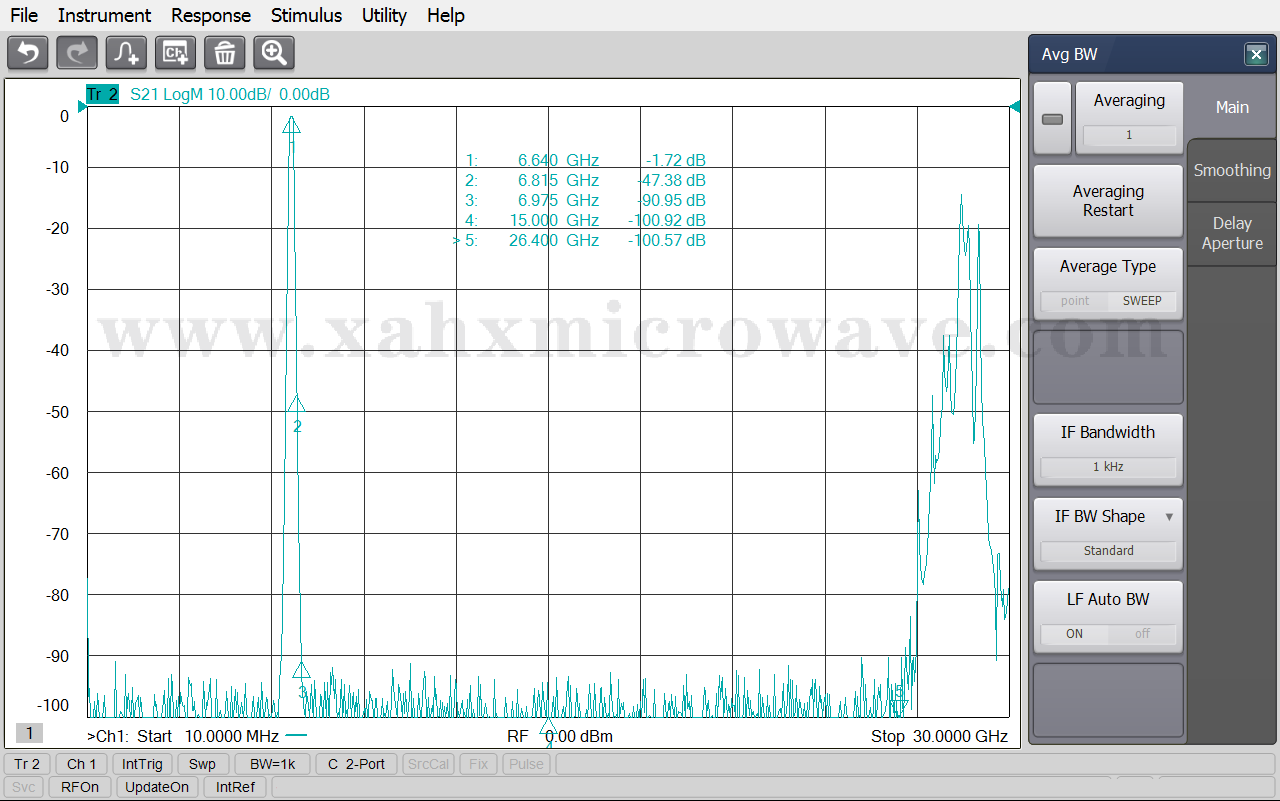

| Test Curve | |||
