| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 10500MHz | |
| ● | Pass Band Frequency | 10000 ~ 11000MHz | |
| ● | Pass Band Insertion Loss | ≤1.3dB | |
| ● | Pass Band Ripple | ≤0.7dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 9250MHz | ≥40dB @ 11300 ~ 11500MHz |
| ≥65dB @ 9250 ~ 9500MHz | ≥65dB @ 11500 ~ 11750MHz | ||
| ≥40dB @ 9500 ~ 9700MHz | ≥80dB @ 11750 ~ 23000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

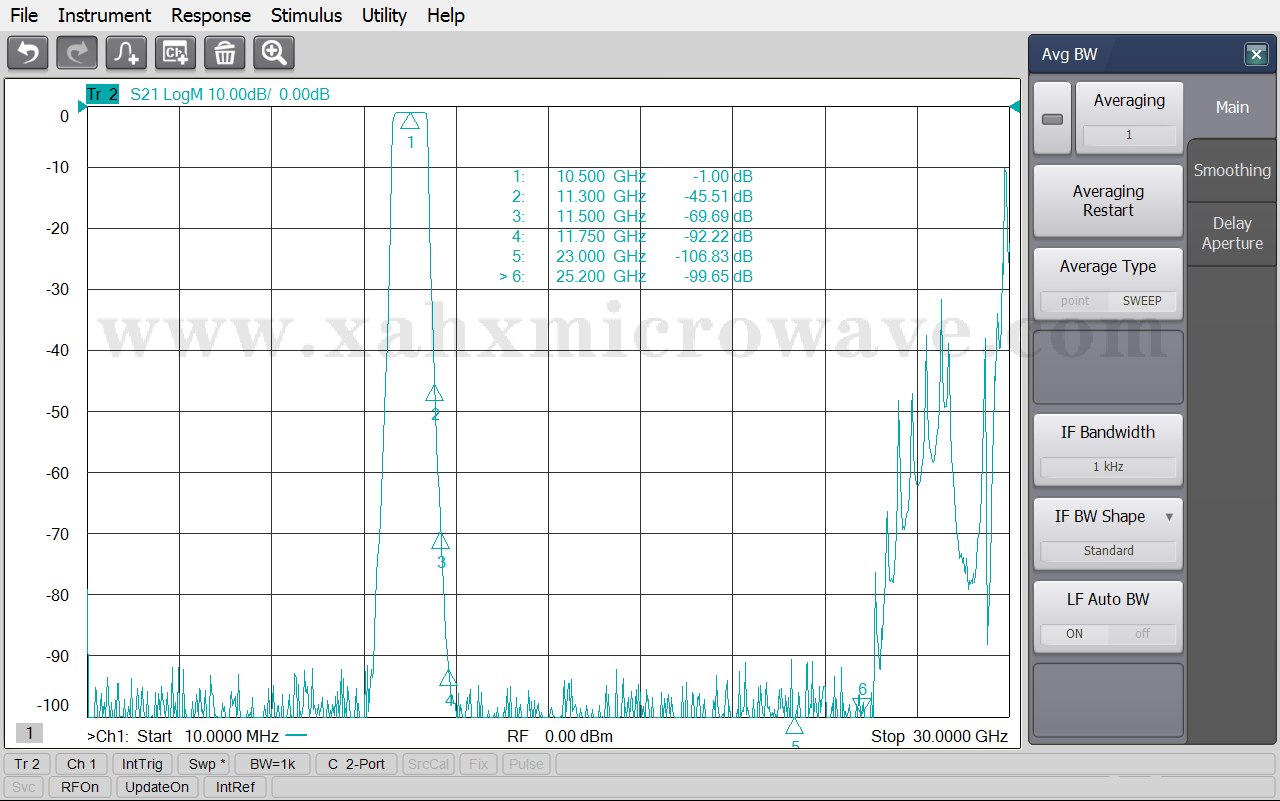

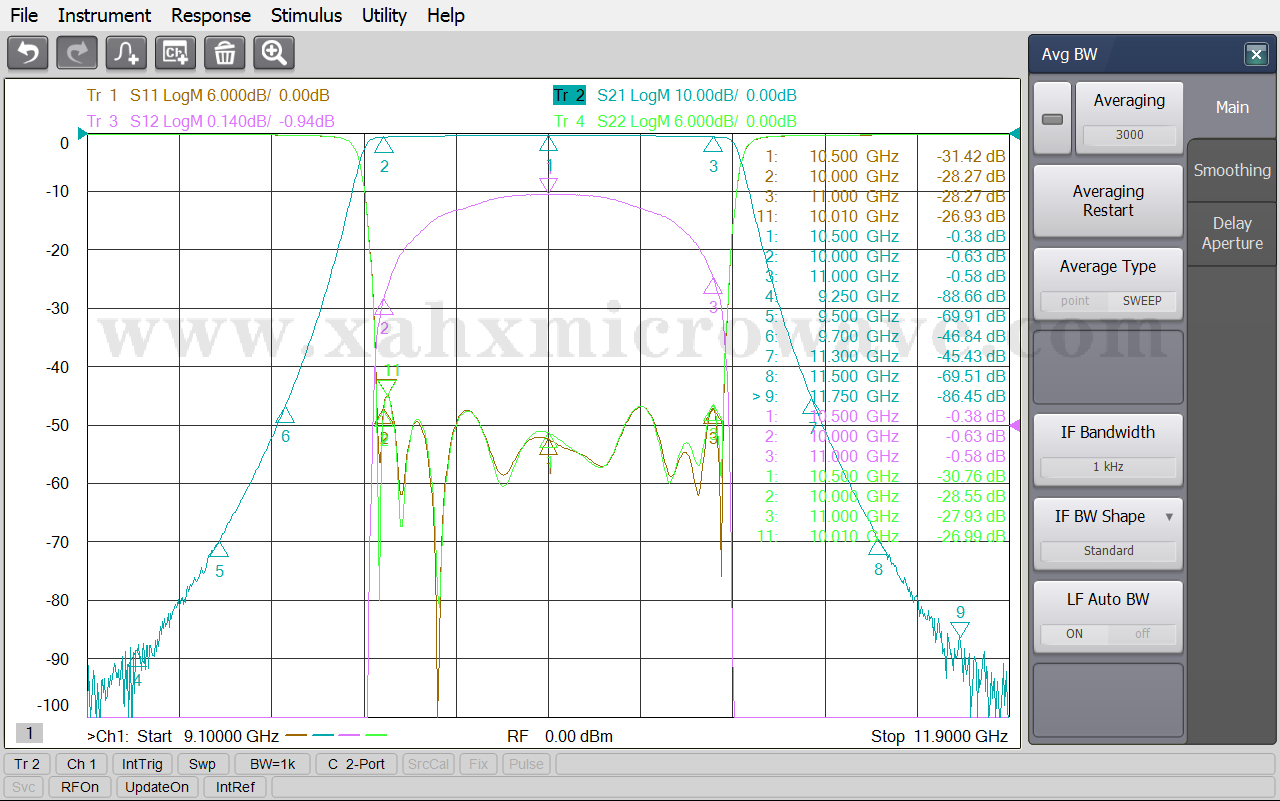

| Test Curve | |||
