| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 3785MHz | |
| ● | 3dB Bandwidth | 20MHz (3775 ~ 3795MHz) | |
| ● | Insertion Loss @ F0 | ≤1.5dB @ 3785MHz | |
| ● | Return Loss @ F0 | ≥18dB @ 3785MHz | |
| ● | Stop Band Rejection | ≥55dB @ DC ~ 3650MHz | ≥55dB @ 3920 ~ 8000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | +15℃ ~ +30℃ | |

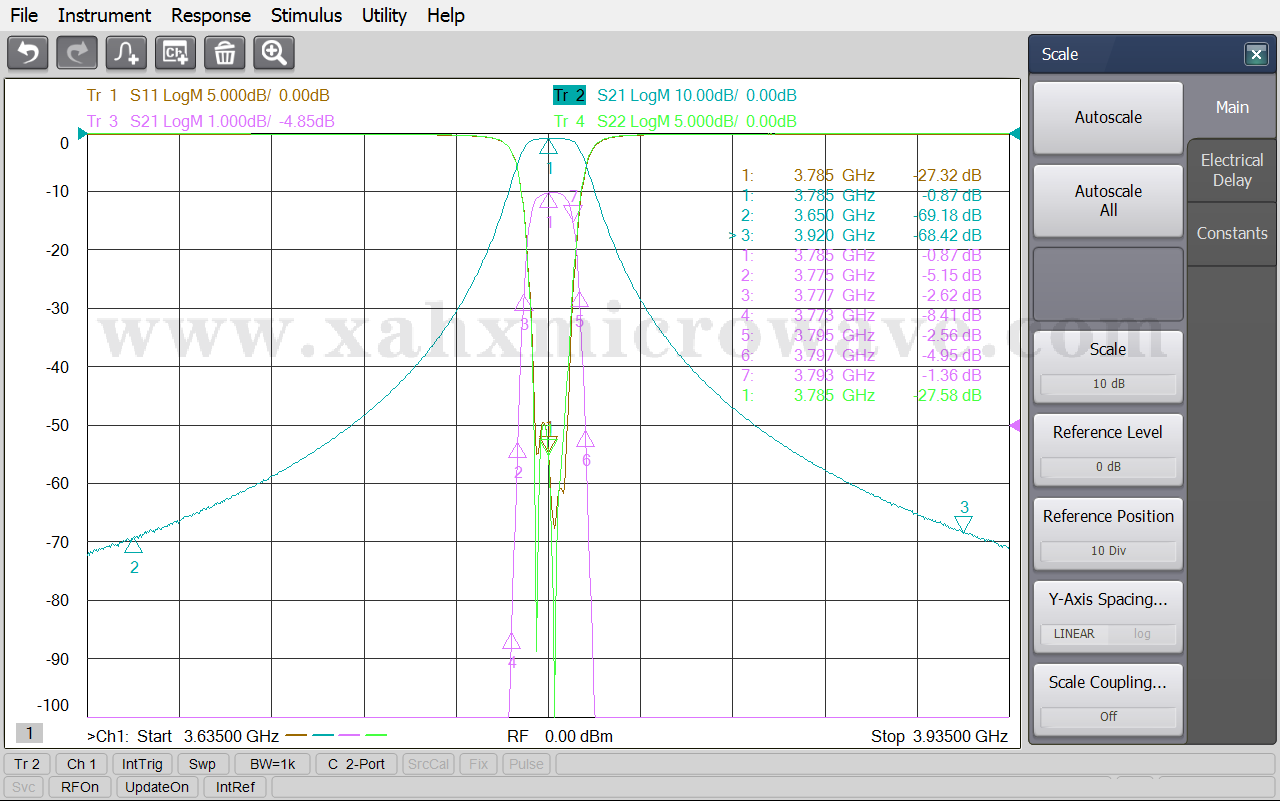

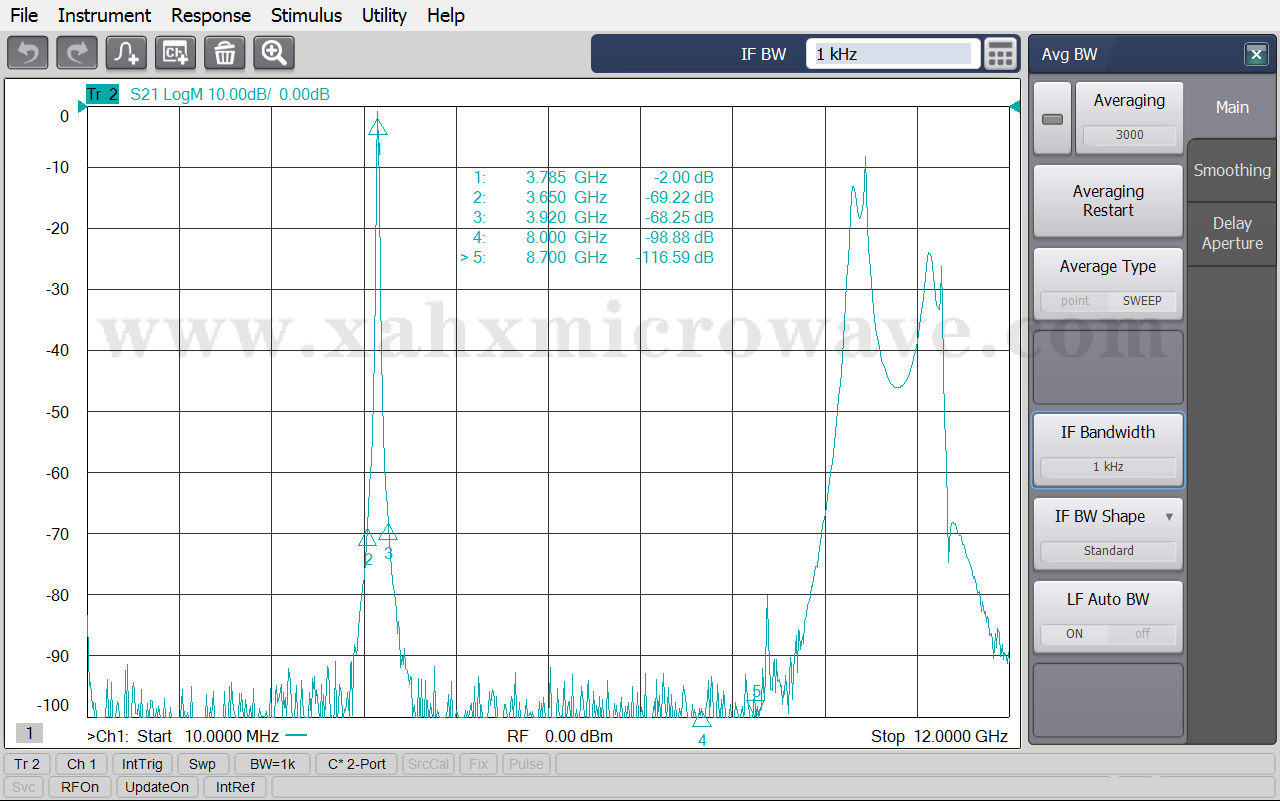

| Test Curve | |||
