| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 6707MHz | |
| ● | Pass Band Frequency | 6580 ~ 6834MHz | |
| ● | Pass Band Insertion Loss | ≤0.9dB | |
| ● | Pass Band Ripple | ≤0.35dB | |
| ● | Pass Band Return Loss | ≥22dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 6207MHz | ≥55dB @ 7047 ~ 7207MHz |
| ≥55dB @ 6207 ~ 6367MHz | ≥80dB @ 7207 ~ 19000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

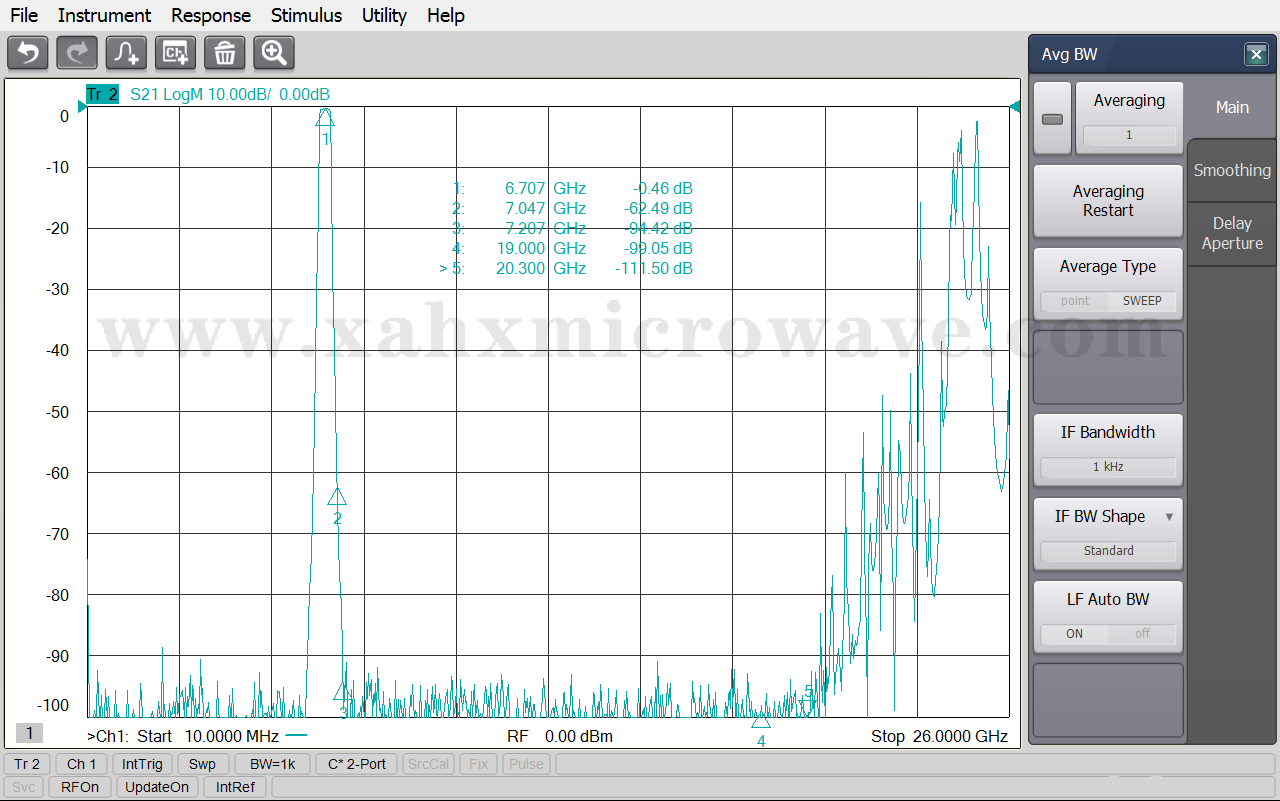

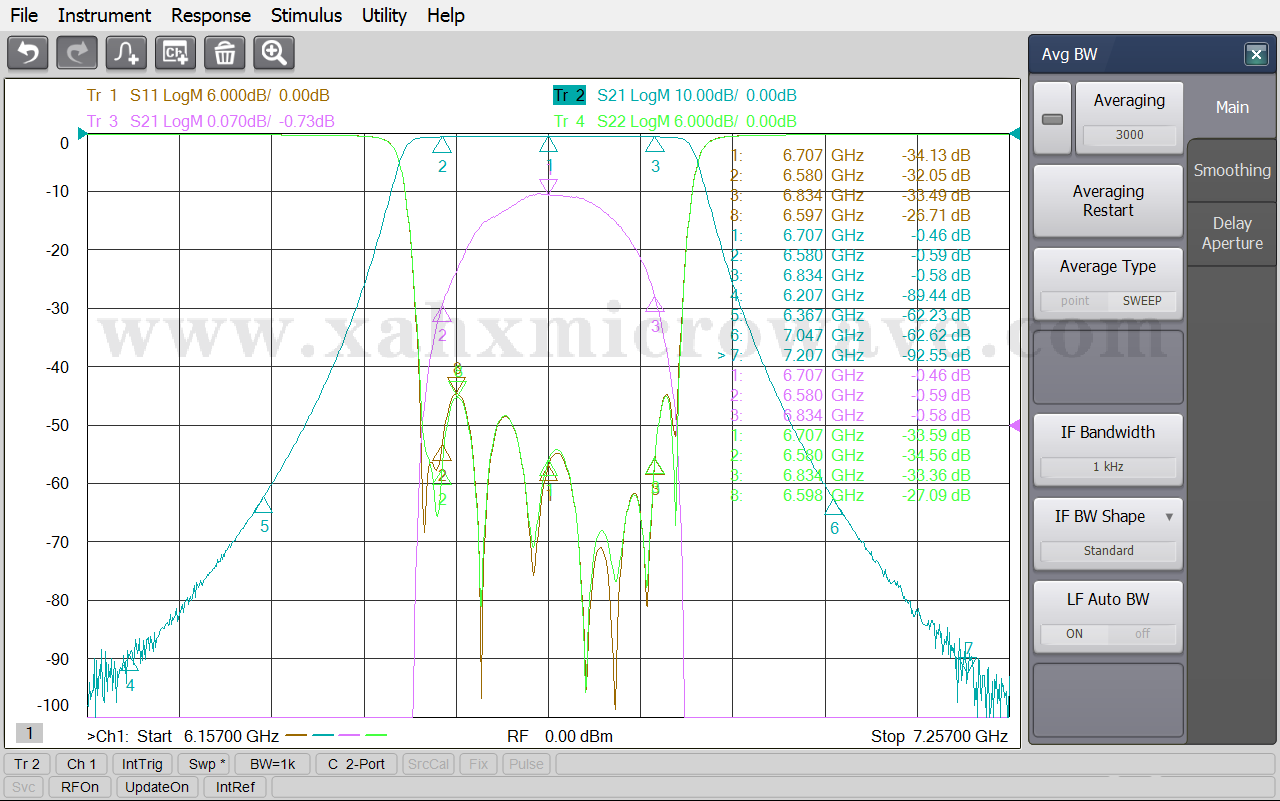

| Test Curve | |||
