| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 1800MHz | |
| ● | Pass Band Frequency | 1798 ~ 1802MHz | |
| ● | Pass Band Insertion Loss | ≤2.0dB | |
| ● | Pass Band Ripple | ≤0.3dB | |
| ● | Pass Band Return Loss | ≥20dB | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 1785MHz | ≥40dB @ 1815 ~ 6000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 20W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

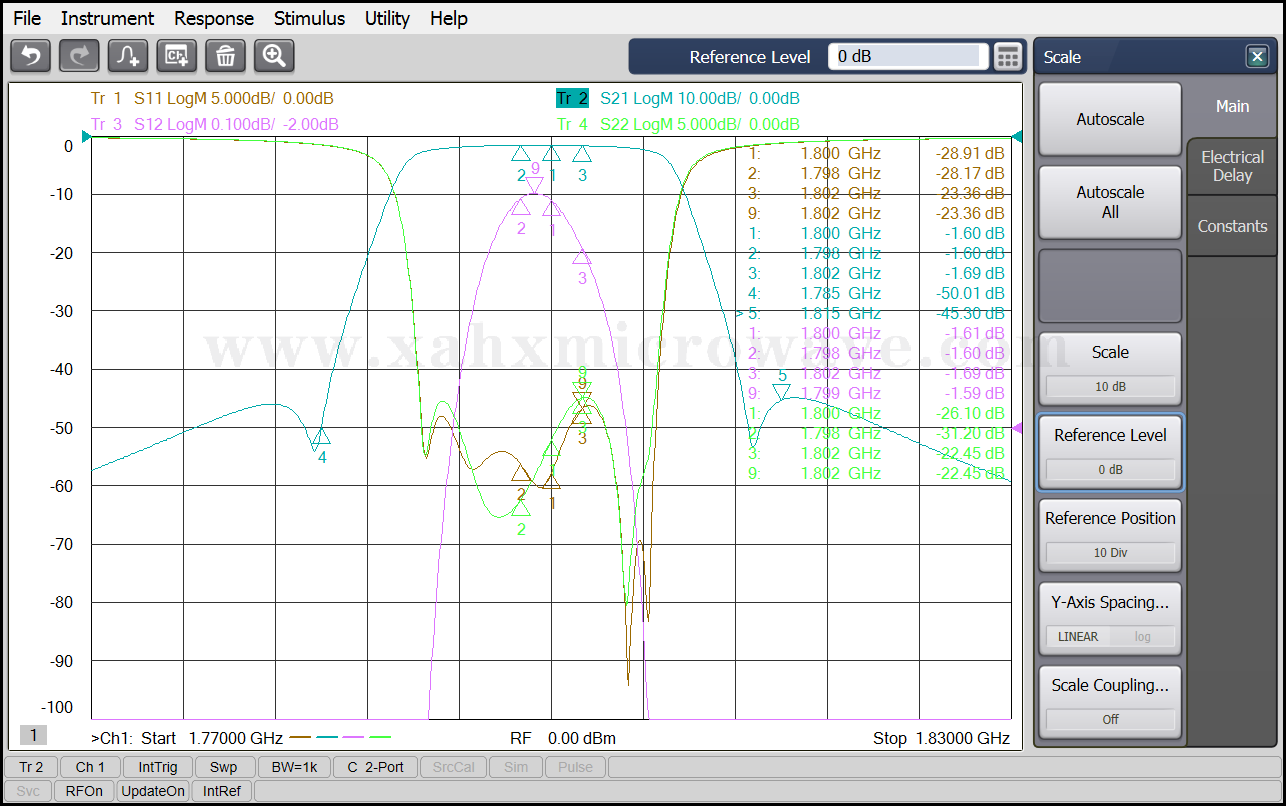

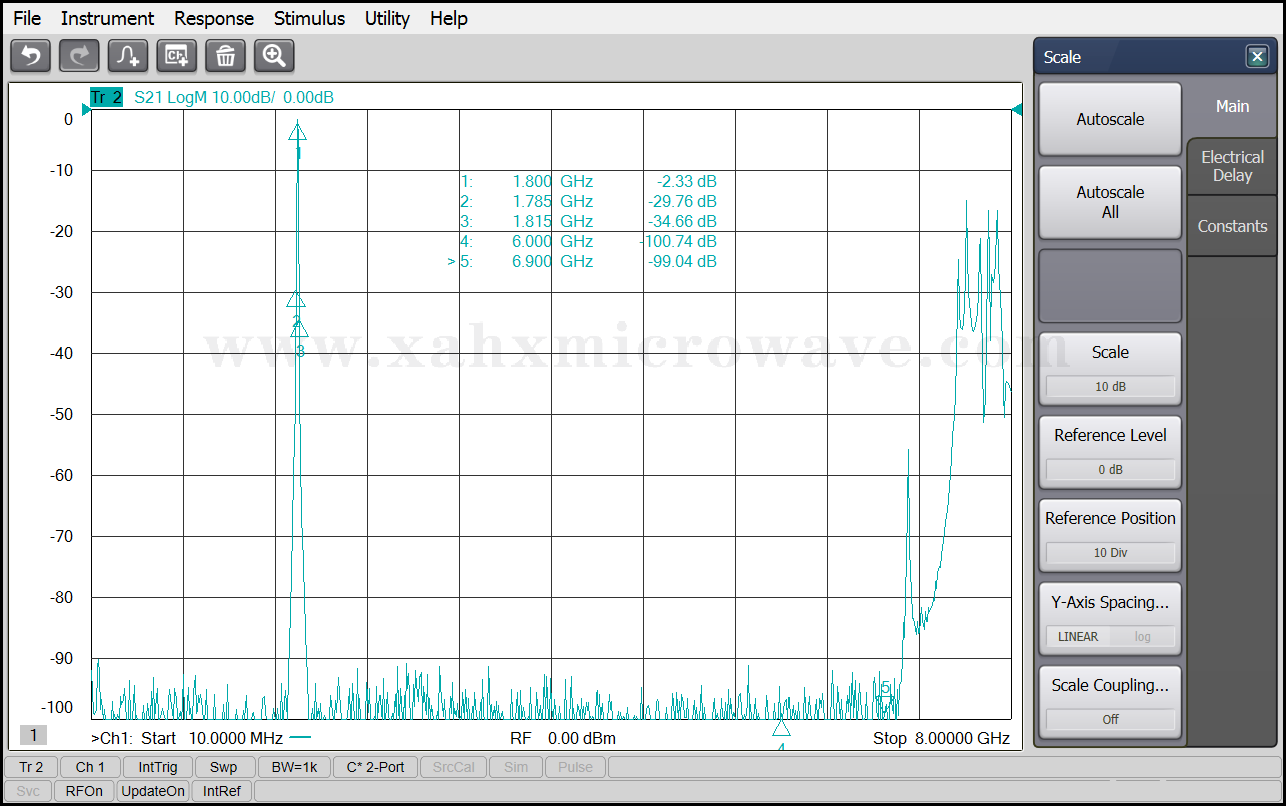

| Test Curve | |||
