| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 3900MHz | |
| ● | Pass Band Frequency | 3000 ~ 4800MHz | |
| ● | Pass Band Insertion Loss | ≤1.0dB | |
| ● | Pass Band Ripple | ≤0.55dB | |
| ● | Pass Band Return Loss | ≥18dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 2050MHz | ≥80dB @ 5250 ~ 12000MHz |
| ≥65dB @ 2050 ~ 2350MHz | |||
| ≥55dB @ 2350 ~ 2500MHz | |||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

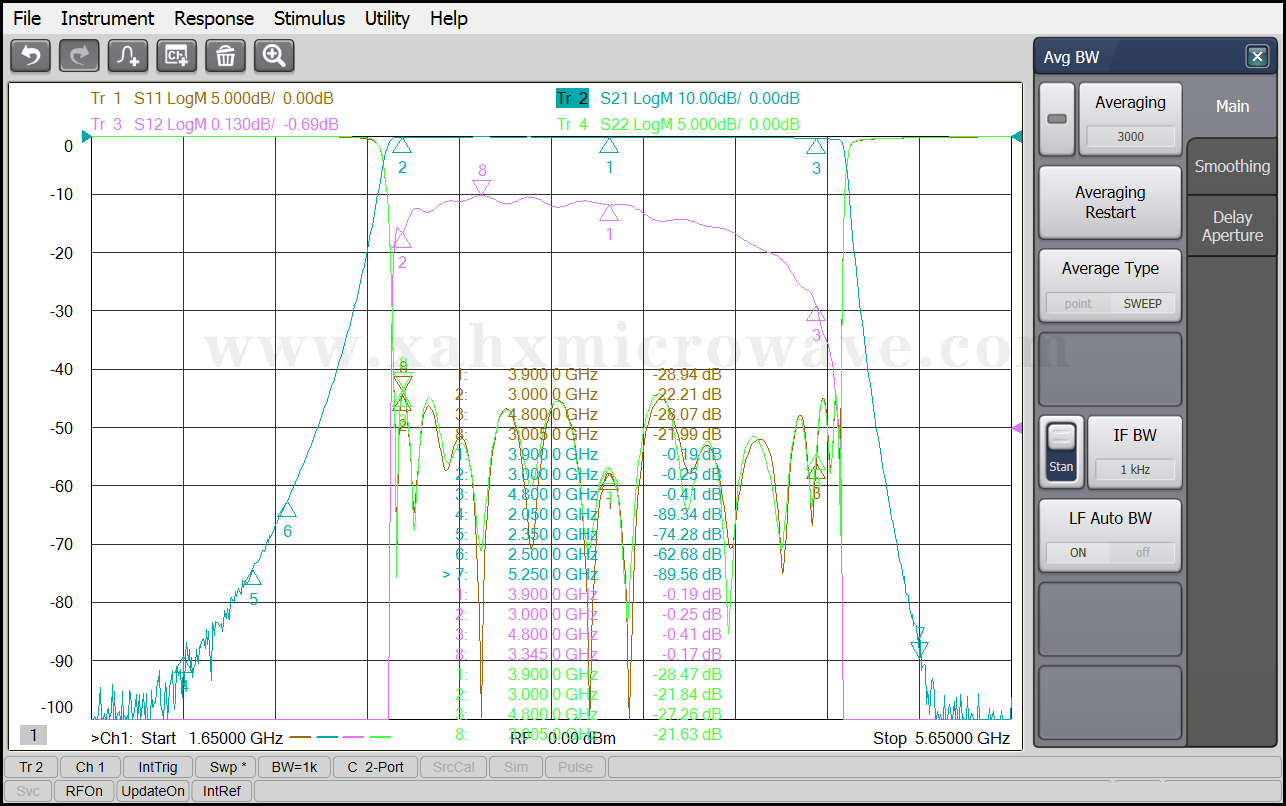

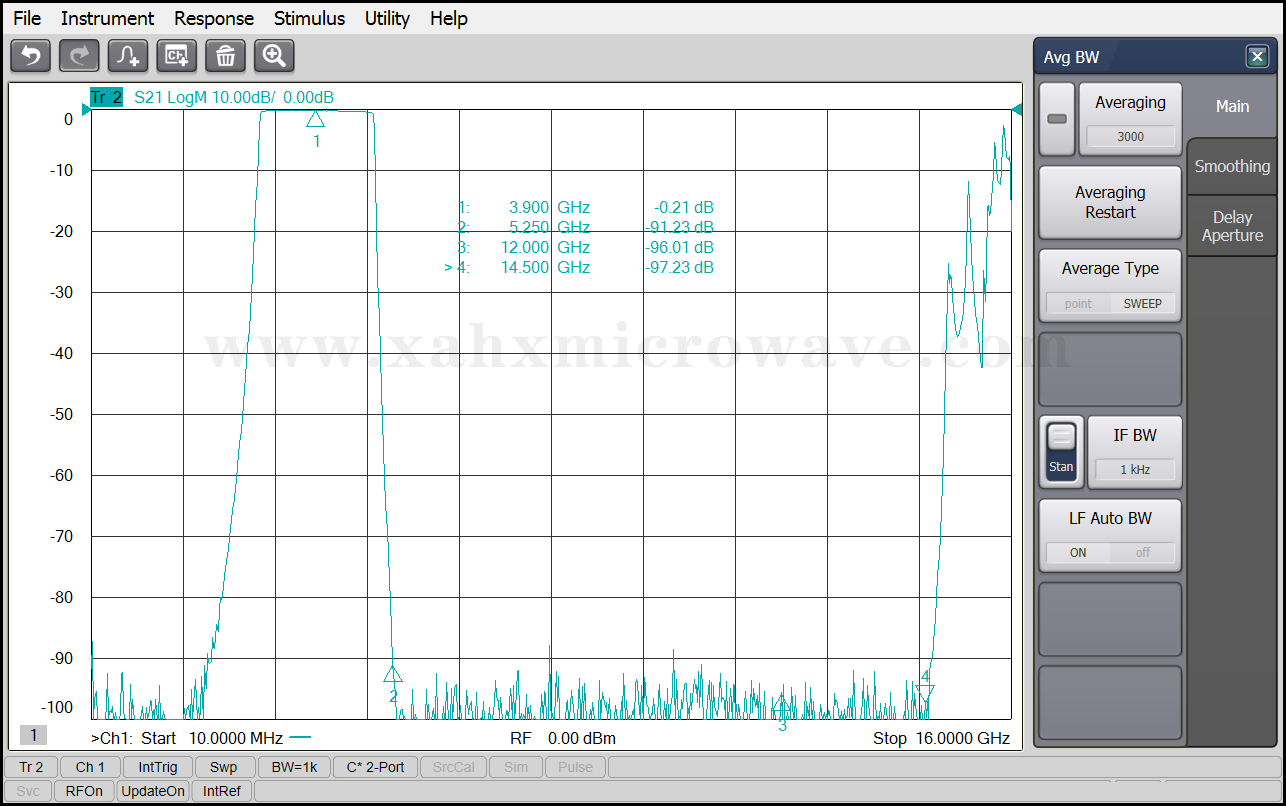

| Test Curve | |||
