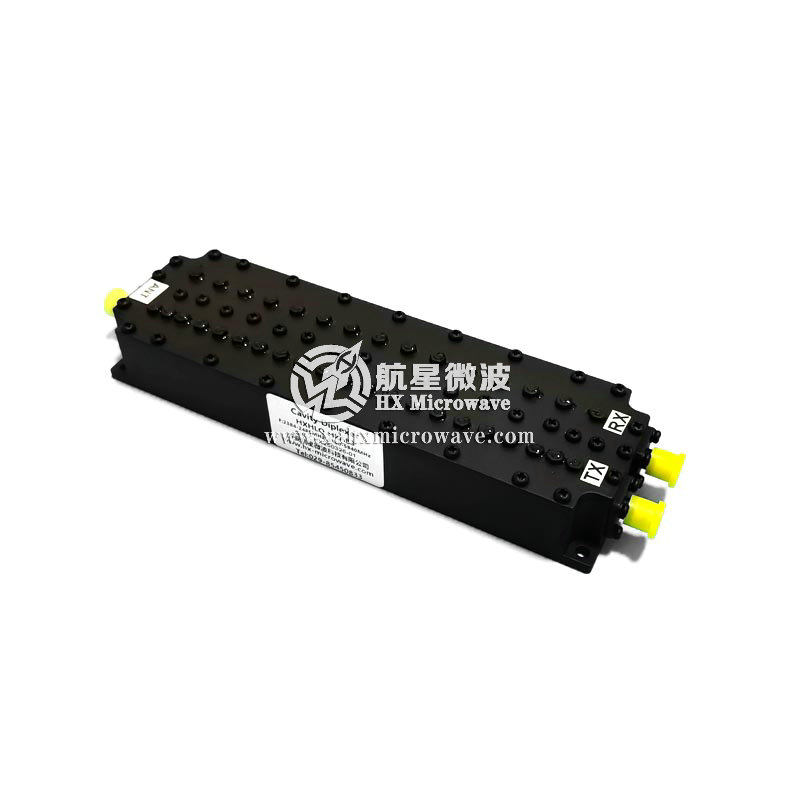

| Technical Data Sheet | |||
| RX | TX | ||
| 1 | Center Frequency(F0) | 2434.5MHz | 5545MHz |
| 2 | Pass Band Frequency | 2384~ 2485MHz | 5150~ 5940MHz |
| 3 | Pass Band Insertion Loss | ≤1.0dB | ≤1.0dB |
| 4 | VSWR | ≤1.40:1 | ≤1.40:1 |
| 5 | Stop Band Rejection | ≥50dB @DC~ 2284MHz | ≥50dB @DC~ 4850MHz |
| ≥50dB @2585~ 6000MHz | ≥50dB @6240~ 8000MHz | ||
| 6 | Average Power | 50W Max. | |
| 7 | Impedance | 50 Ohms | |
| 8 | Connectors | SMA-Female | |
| 9 | Surface Finish | Painted Black | |
| 10 | Temperature Range | -20℃ ~ +60℃ | |
| 11 | Dimensions | 150*45*25mm | |
| 12 | Working Environment | Indoor | |
| Test Curve | |||
