Technical Data Sheet | ||
● | Way | 2 |
● | Frequency Range | 10 ~ 50GHz |
● | Insertion Loss | ≤2.2dB (Does not contain theory loss 3.01dB) |
● | VSWR | Input: ≤2.0:1 ; Output: ≤2.0:1 |
● | Amplitude Balance | ≤ ±1.0dB |
● | Phase Balance | ≤ ±15° |
● | Isolation | ≥12dB |
● | Impedance | 50 Ohms |
● | Power | Forward: 10W Max. ; Reverse: 0.5W Max. |
● | Connectors | 2.4mm(Q)-Female |
● | Surface Finish | Painted Black |
● | Temperature Range | -40℃ ~ +80℃ |

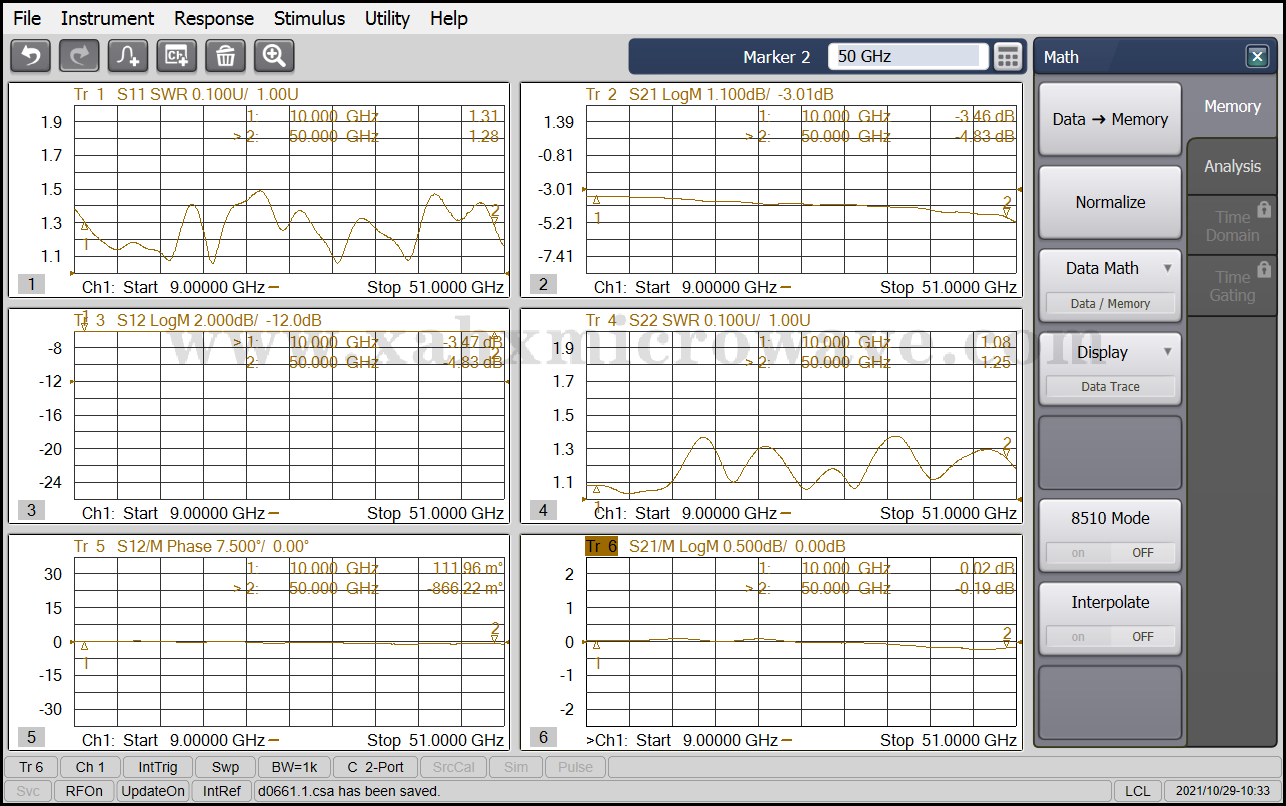

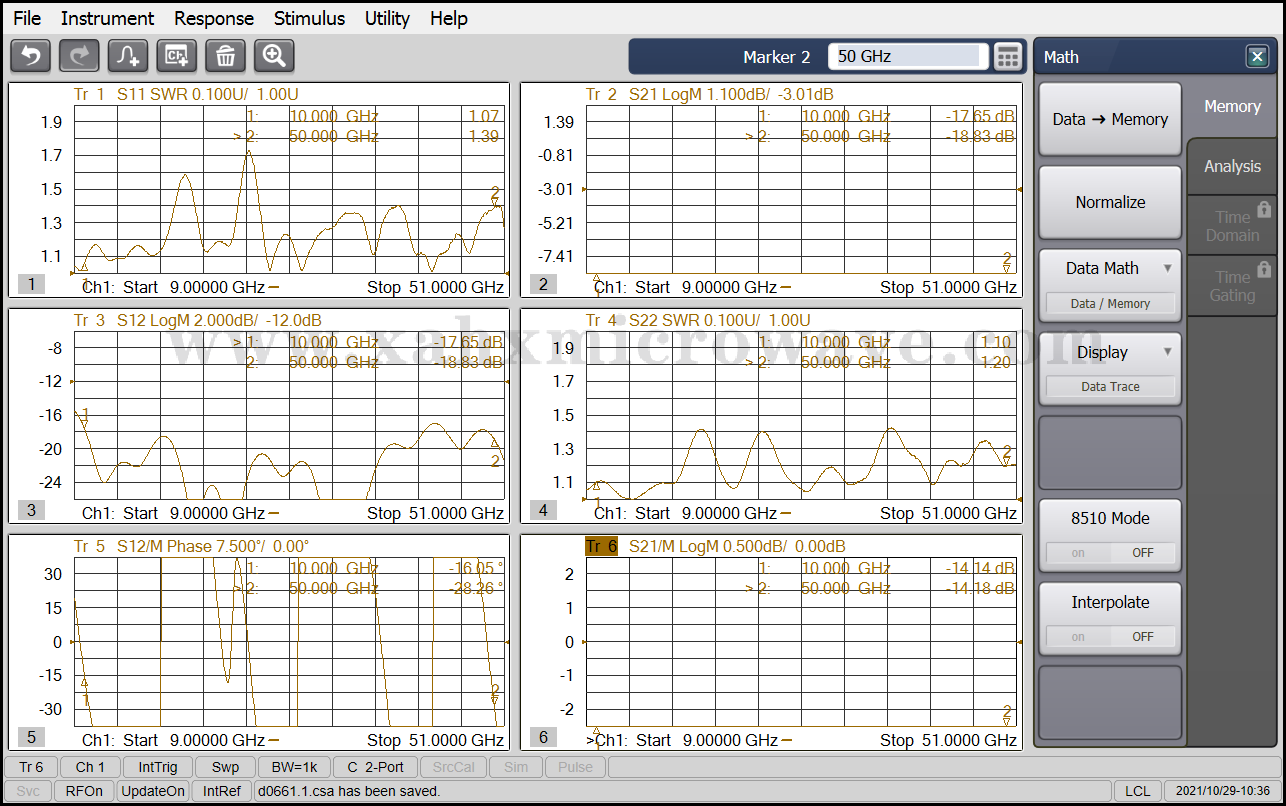

Test Curve |
