200W Attenuator

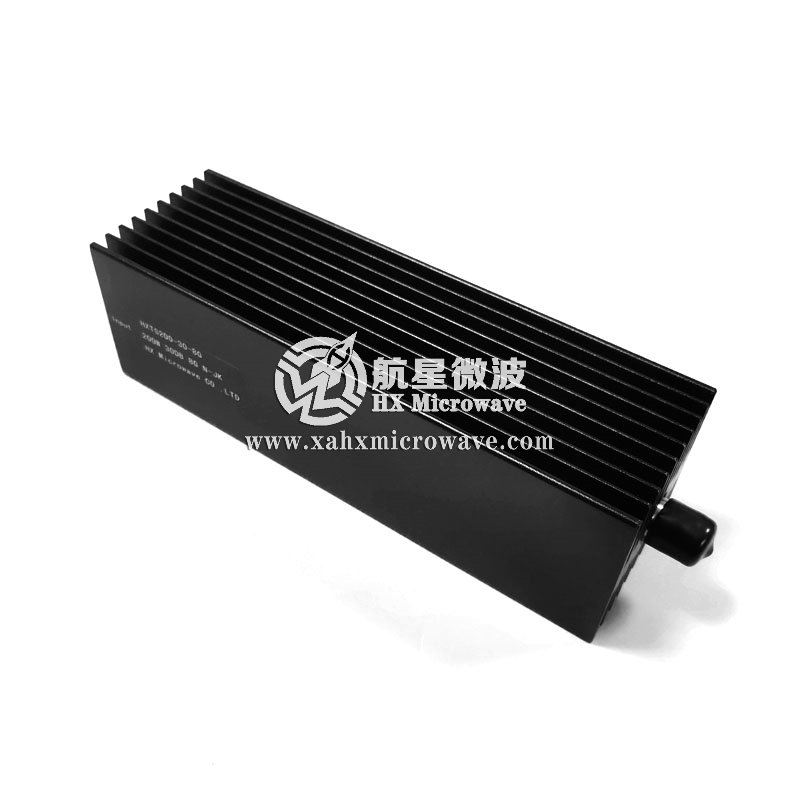

  • 200W RF Coaxial Attenuator DC-18GHz 1-50DB N,7/16,TNC
200W RF Coaxial Attenuator DC-18GHz 1-50DB N,7/16,TNC

200W RF Coaxial Attenuator DC-18GHz 1-50DB N,7/16,TNC

  • Power：200W
  • Frequency:DC-2.5GHz_DC-4GHz_DC-6GHz_DC-8GHz_DC-10GHz_DC-12.4GHz_DC-18GHz
  • Attenuation value:1-50DB
  • Connector：N,7/16
  • Product description: Good heat dissipation, high cost performance ♦ Low VSWR ♦ High precision attenuation ♦ Resistance to pulse ♦ Wide working frequency ♦ Working temperature and 55 ℃ ~ + 125 ℃
  • PDF technical index download
200W Coaxial Attenuato
Technology Manual
Model Number Freq. Range Attenuation Value/Tolerance VSWR Max
10dB 20dB 30dB 40dB
HXTS200-XX-2.5-X DC-2.5GHz ±0.8 ±0.5 ±0.5 ±0.5 / 1.2
HXTS200-XX-4-X DC-4GHz ±1.0 ±0.5 ±0.5 ±0.5 / 1.25
HXTS200-XX-6-X DC-6GHz / ±0.6 ±0.6 ±0.6 / 1.3
HXTS200-XX-8-X DC-8GHz / ±0.75 ±0.75 ±0.75 / 1.35
HXTS200-XX-10-X DC-10GHz / / ±1.0 ±1.0 / 1.45
Model Number Freq. Range Attenuation Value/Tolerance VSWR Max
10dB 20dB 30dB 40dB 50dB
HXTS200G-XX-8-X DC-8GHz -2.5/+1.0 -2.5/+1.5 ±1.5 ±1.5 ±1.5 1.25
HXTS200G-XX-12.4-X DC-12.4GHz -2.5/+1.0 -2.5/+1.5 -1.5/+1 -1/+3 -1.5/+2.5 1.4
HXTS200G-XX-18-X DC-18GHz -2.5/+4.0 -2.5/+5.0 -2/+3.5 -2/+3.5 -2/+3 1.5
