High Pass Filter

  • 1.2-8GHz High Pass Filter

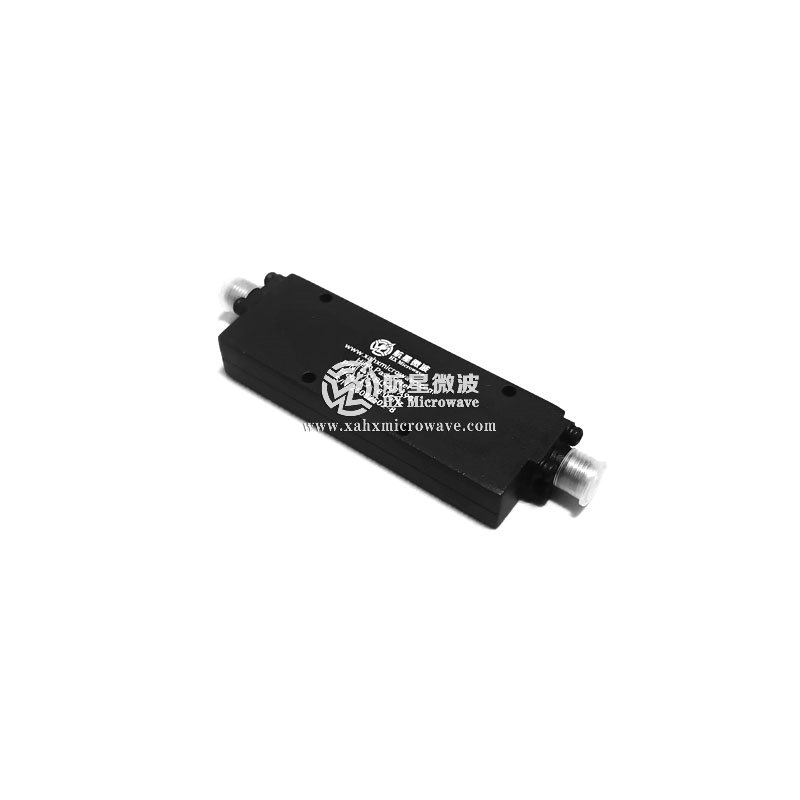

1.2-8GHz High Pass Filter

1.2-8GHz High Pass Filter

  • P/N：HXLBQ-GTA90
  • Pass Band Frequency：1.2～8.0GHz
  • Stop Band Attenuation：≥40dB
  • Connectors：SMA-Female
  • Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
  • PDF technical index download
Technical Data Sheet
● Cut Off Frequency 1.2GHz
● Pass Band Frequency 1.2～8.0GHz
● Pass Band Insertion Loss ≤1.5dB @ 1.2～1.4GHz
≤1.0dB @ 1.4～8.0GHz
● Pass Band VSWR ≤1.5:1
● Stop Band Attenuation ≥40dB @ DC～0.95GHz
● Impedance 50 ohms
● Power ≤15W
● Connectors SMA-Female

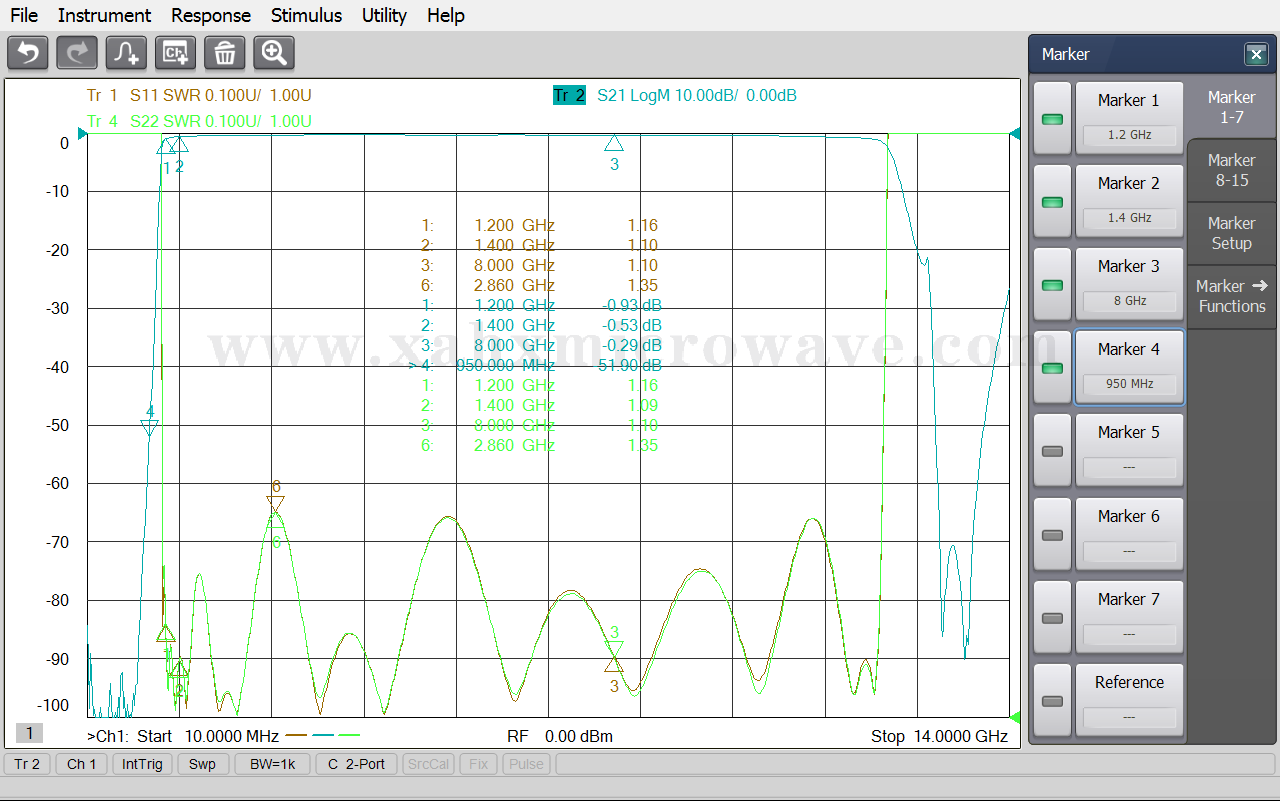

Test Curve
