High Pass Filter

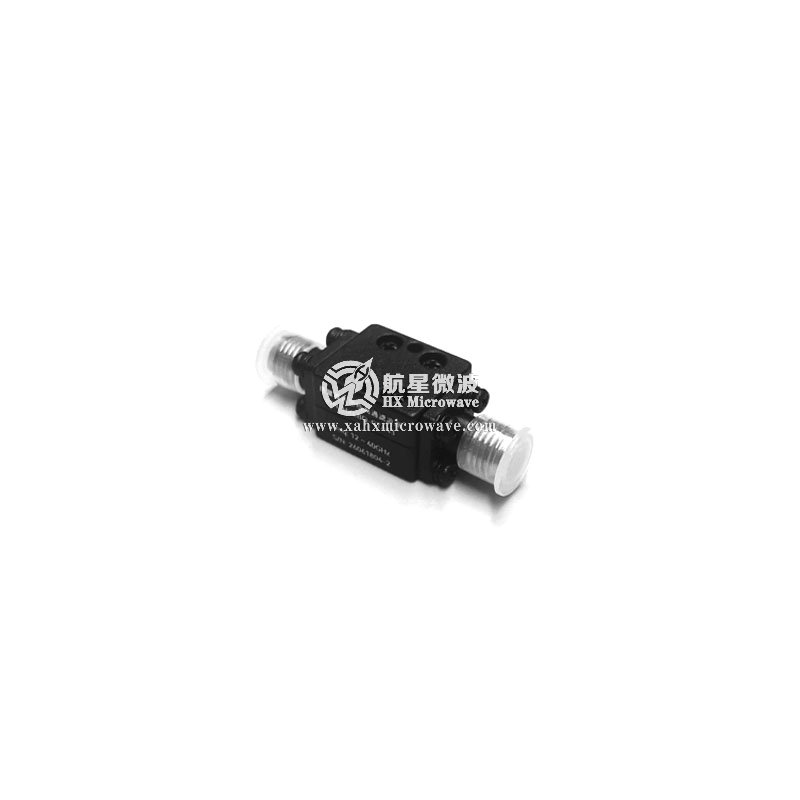

12-40GHz High Pass Filter

P/N：HXLBQ-GTA43
Pass Band Frequency:12-40GHZ
Stop Band Attenuation：≥50dB
Insertion loss：≤1.0dB
Product description: Product Features ♦ Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Out of band suppression ♦ Operating temperature range: -40~+70°C
PDF technical index download

Technical Data Sheet
●	Cut Off Frequency	12GHz
●	Pass Band Frequency	12 ~ 40GHz
●	Pass Band Insertion Loss	≤2.0dB @ 12 ~ 12.8GHz
●	Pass Band Insertion Loss	≤1.0dB @ 12.8 ~ 40GHz
●	Pass Band VSWR	≤1.6:1
●	Stop Band Attenuation	≥50dB @ DC ~ 10GHz
●	Impedance	50 Ohms
●	Power Handling	15W Max.
●	Connectors	2.92mm(K)-Female
●	Surface Finish	Guide Oxygen or Painted Black
●	Temperature Range	-55℃ ~ +85℃

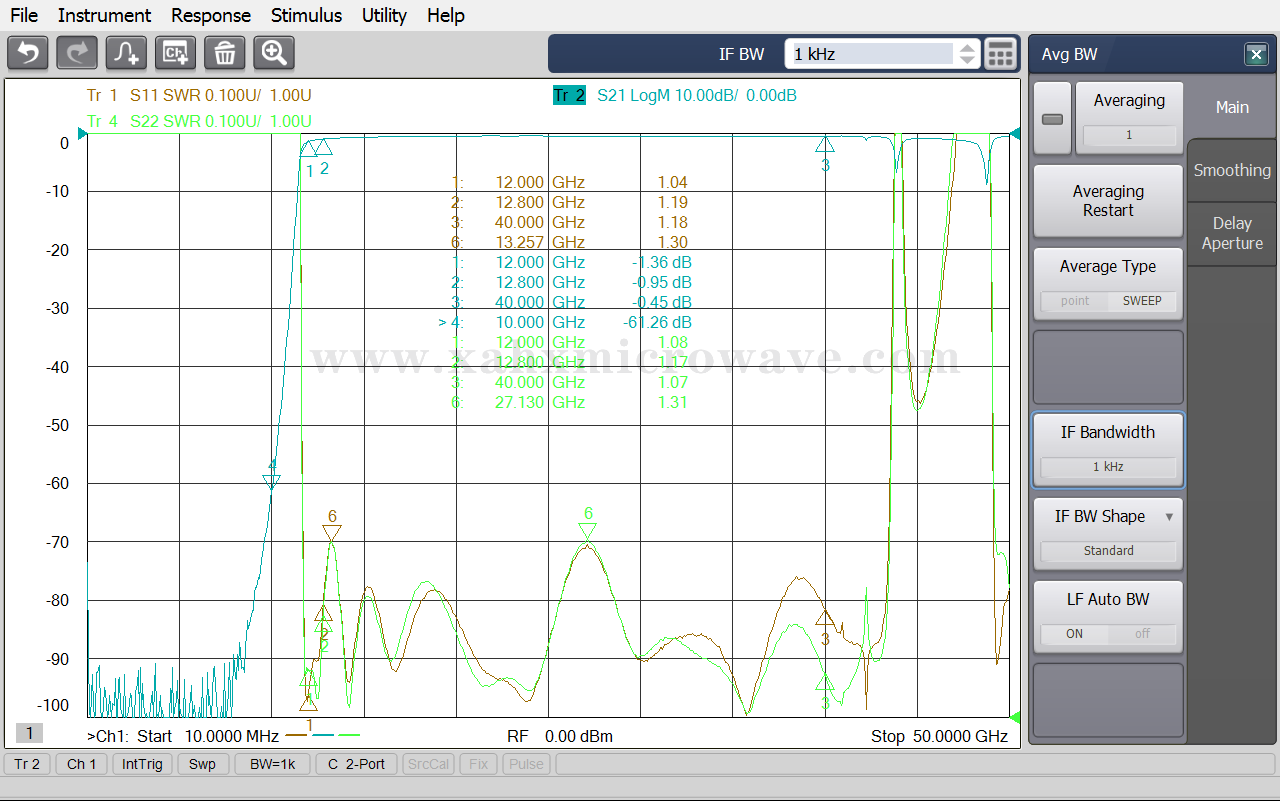

Test Curve
