High Pass Filter

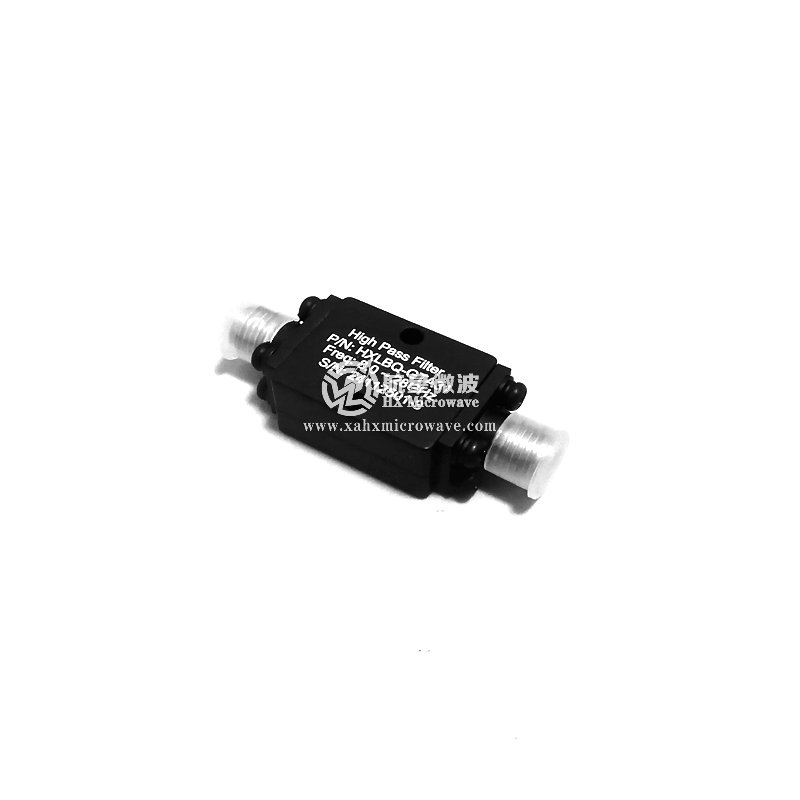

  • 8-28GHz High Pass Filter
8-28GHz High Pass Filter

8-28GHz High Pass Filter

  • P/N:HXLBQ-GTA31
  • Pass Band Frequency:8.0-28GHZ
  • Stop Band Attenuation:≥50dB
  • Insertion loss:≤1.0dB
  • Product description: Product Features ♦ Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Out of band suppression ♦ Operating temperature range: -40~+70°C
  • PDF technical index download

Technical Data Sheet
Cut Off Frequency 8.0GHz
Pass Band Frequency 8.0 ~ 28GHz
Pass Band Insertion Loss ≤1.5dB @ 8.0 ~ 8.3GHz
≤1.0dB @ 8.3 ~ 28GHz
Pass Band VSWR ≤1.5:1
Stop Band Attenuation ≥50dB @ DC ~ 6.65GHz
Impedance 50 Ohms
Power Handling 15W Max.
Connectors SMA-Female
Surface Finish Guide Oxygen or Painted Black
Temperature Range -55℃ ~ +85℃
Test Curve
