High Pass Filter

  • 2.25-19GHz High Pass Filter
2.25-19GHz High Pass Filter

2.25-19GHz High Pass Filter

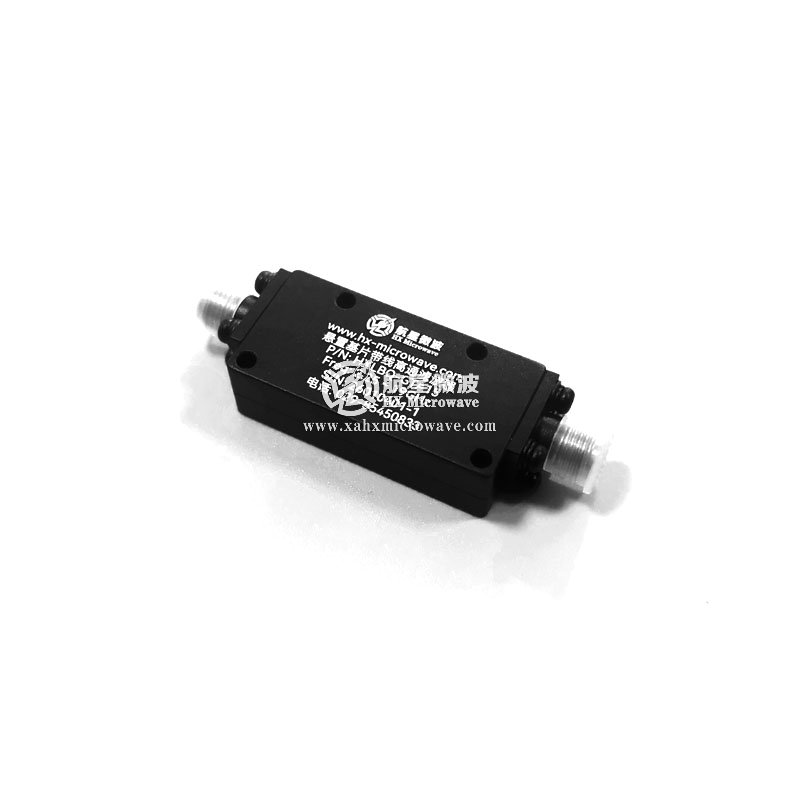

  • P/N:HXLBQ-GTA15
  • Pass Band Frequency:2.25-19GHZ
  • Stop Band Attenuation:≥50dB
  • Connectors:SMA-Female
  • Product description: Product Features ♦ Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Out of band suppression ♦ Operating temperature range: -40~+70°C
  • PDF technical index download

Technical Data Sheet
Cut Off Frequency 2.25GHz
Pass Band Frequency 2.25 ~ 19GHz
Pass Band Insertion Loss ≤1.5dB @ 2.25 ~ 2.35GHz
≤1.0dB @ 2.35 ~ 19GHz
Pass Band VSWR ≤1.5:1
Stop Band Attenuation ≥50dB @ DC ~ 1.77GHz
Impedance 50 Ohms
Power Handling 15W Max.
Connectors SMA-Female
Surface Finish Guide Oxygen or Painted Black
Temperature Range -55℃ ~ +85℃
Test Curve
