| Technical Data Sheet | ||
| ● | Pass Band Frequency | DC ~ 3.5GHz |
| ● | Pass Band Insertion Loss | ≤1.0dB |
| ● | Pass Band VSWR | ≤1.8:1 |
| ● | Stop Band Rejection | ≥60dB @ 5.0 ~ 7.5GHz |
| ● | Impedance | 50 Ohms |
| ● | Average Power | 200W Max. |
| ● | Connectors | N-Female |
| ● | Surface Finish | Painted Black Or Natural Color |
| ● | Temperature Range | -30℃ ~ +70℃ |

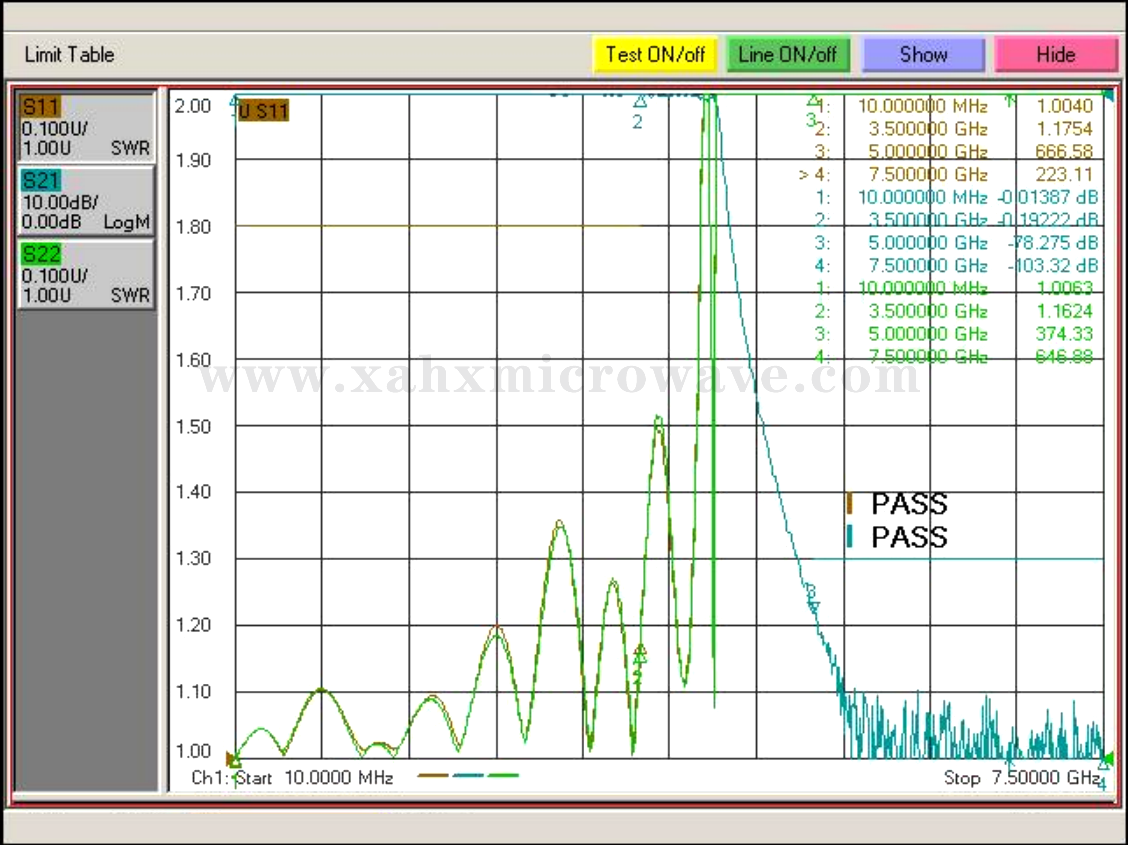

| Test Curve | ||
