| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 3050MHz | |
| ● | 3.0dB Bandwidth | 400MHz (2850 ~ 3250MHz) | |
| ● | Insertion Loss @ F0 | ≤1.0dB @ 3050MHz | |
| ● | Return Loss | ≥23dB @ 2900 ~ 3200MHz | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 2500MHz | ≥40dB @ 3400 ~ 3600MHz |
| ≥40dB @ 2500 ~ 2700MHz | ≥80dB @ 3600 ~ 8000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

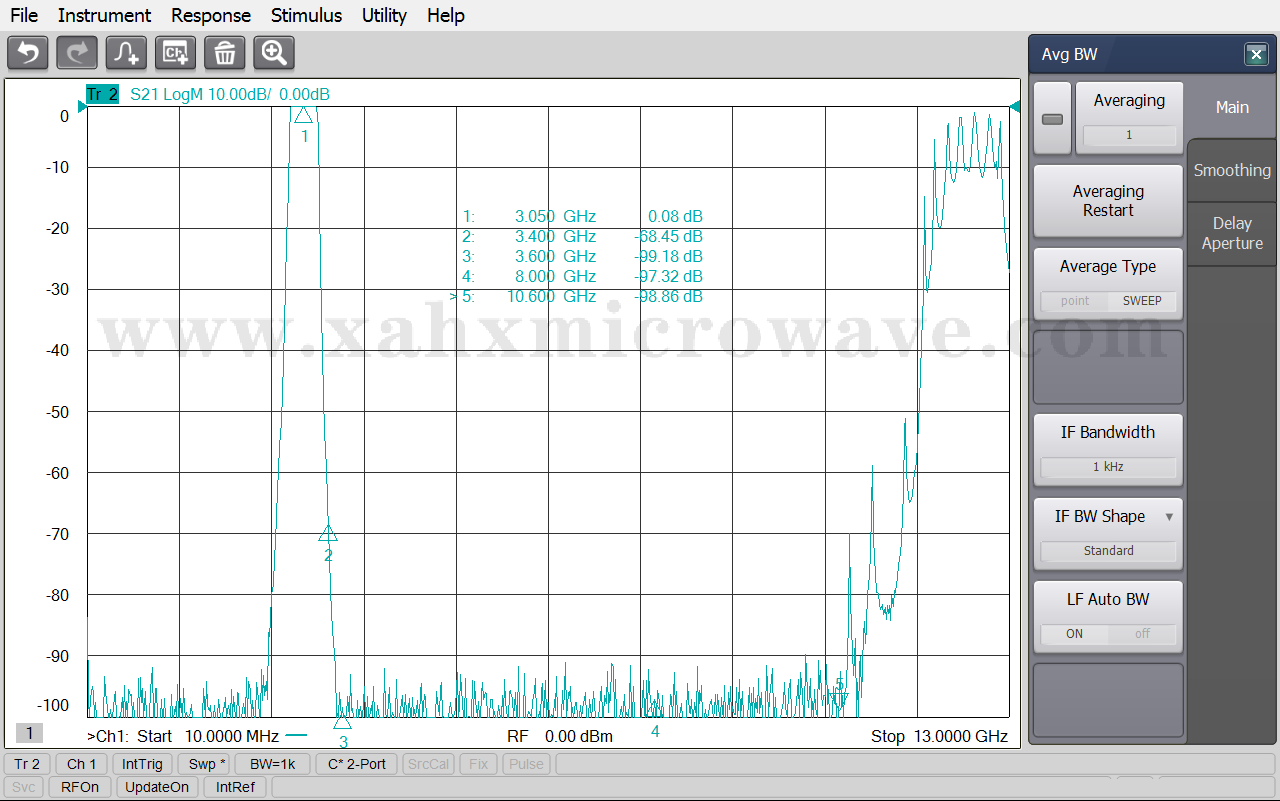

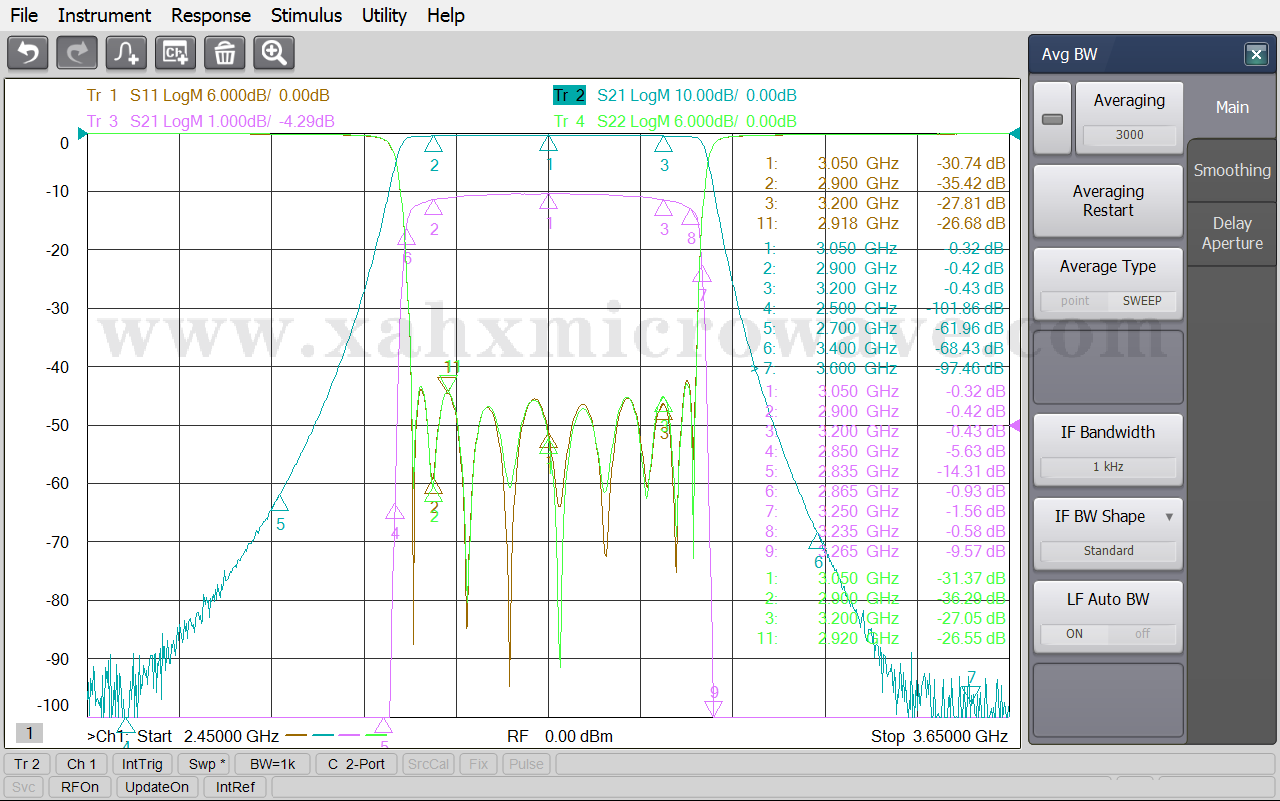

| Test Curve | |||
