  • 4900-6100MHz Comb Band Pass Filter
4900-6100MHz Comb Band Pass Filter

4900-6100MHz Comb Band Pass Filter

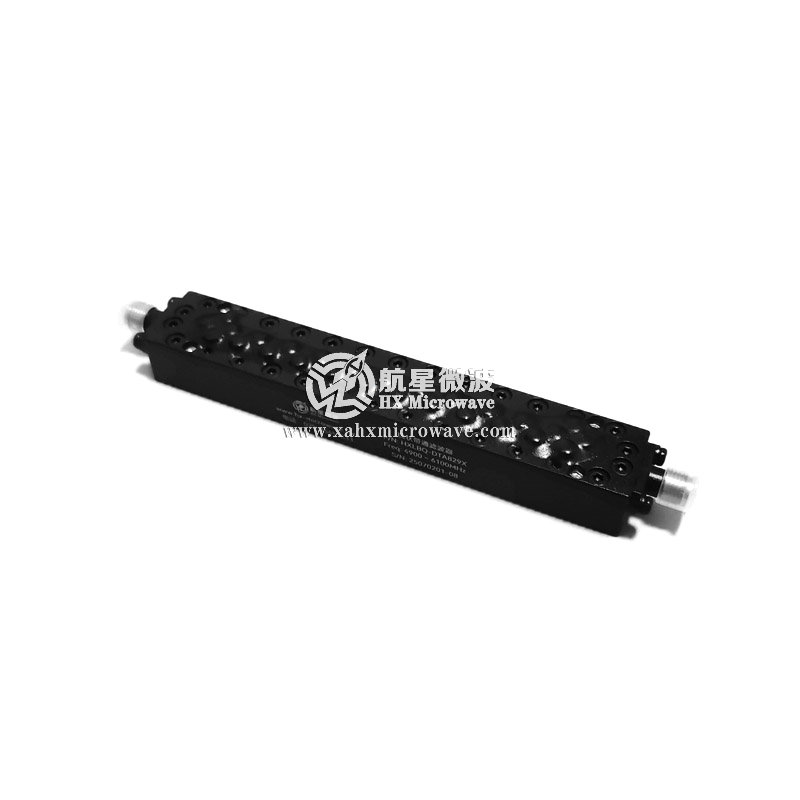

  • P/N：HXLBQ-DTA829X
  • 3.0dB Bandwidth@:(4900-6100MHz)
  • Stop Band Rejection：≥40dB
  • Connectors：SMA-Female
  • Product description:
  • PDF technical index download
Technical Data Sheet
● Center Frequency(F0) 5500MHz
● 3.0dB Bandwidth 1200MHz (4900 ~ 6100MHz)
● Insertion Loss @ F0 ≤1.0dB @ 5500MHz
● Return Loss ≥20dB @ 5000 ~ 6000MHz
● Stop Band Rejection ≥80dB @ DC ~ 4400MHz ≥40dB @ 6300 ~ 6600MHz
≥40dB @ 4400 ~ 4700MHz ≥80dB @ 6600 ~ 13000MHz
● Impedance 50 Ohms
● Power Handling 10W Max.
● Connectors SMA-Female
● Surface Finish Painted Black
● Temperature Range -30℃ ~ +70℃

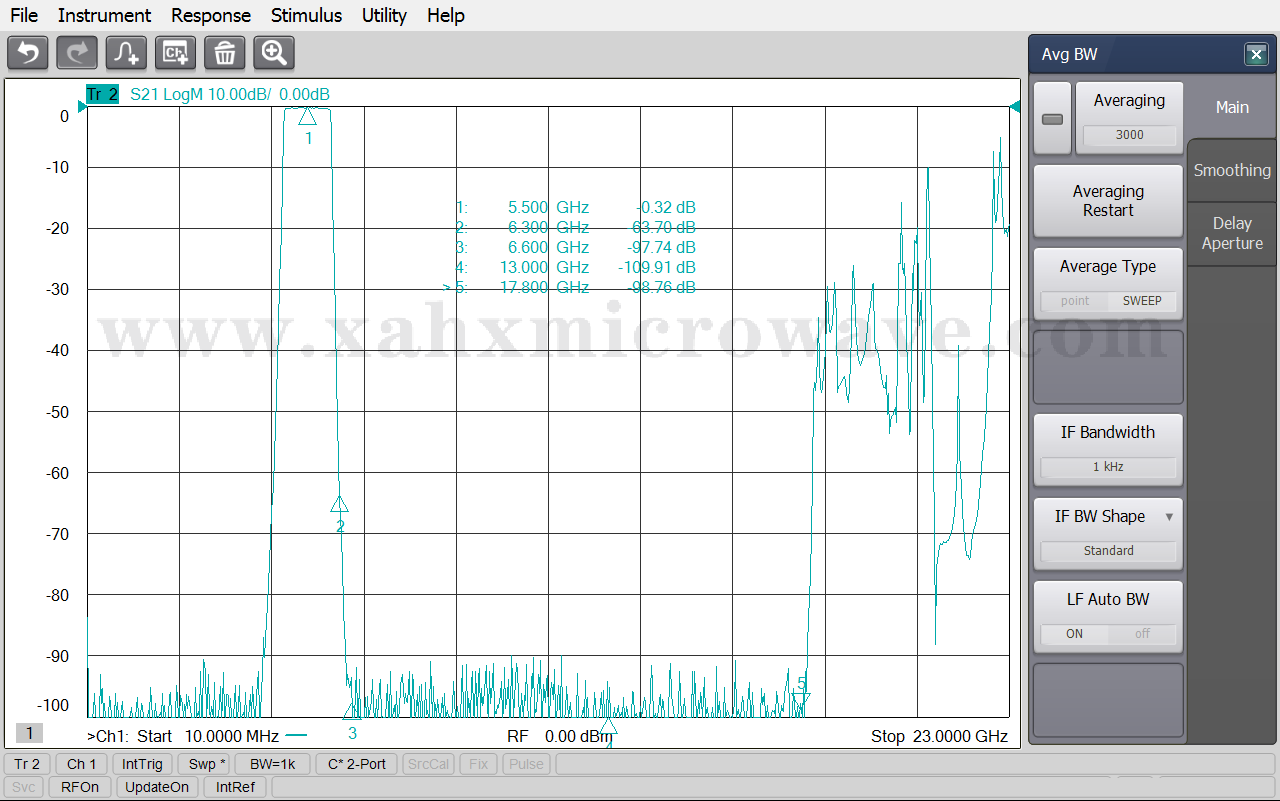

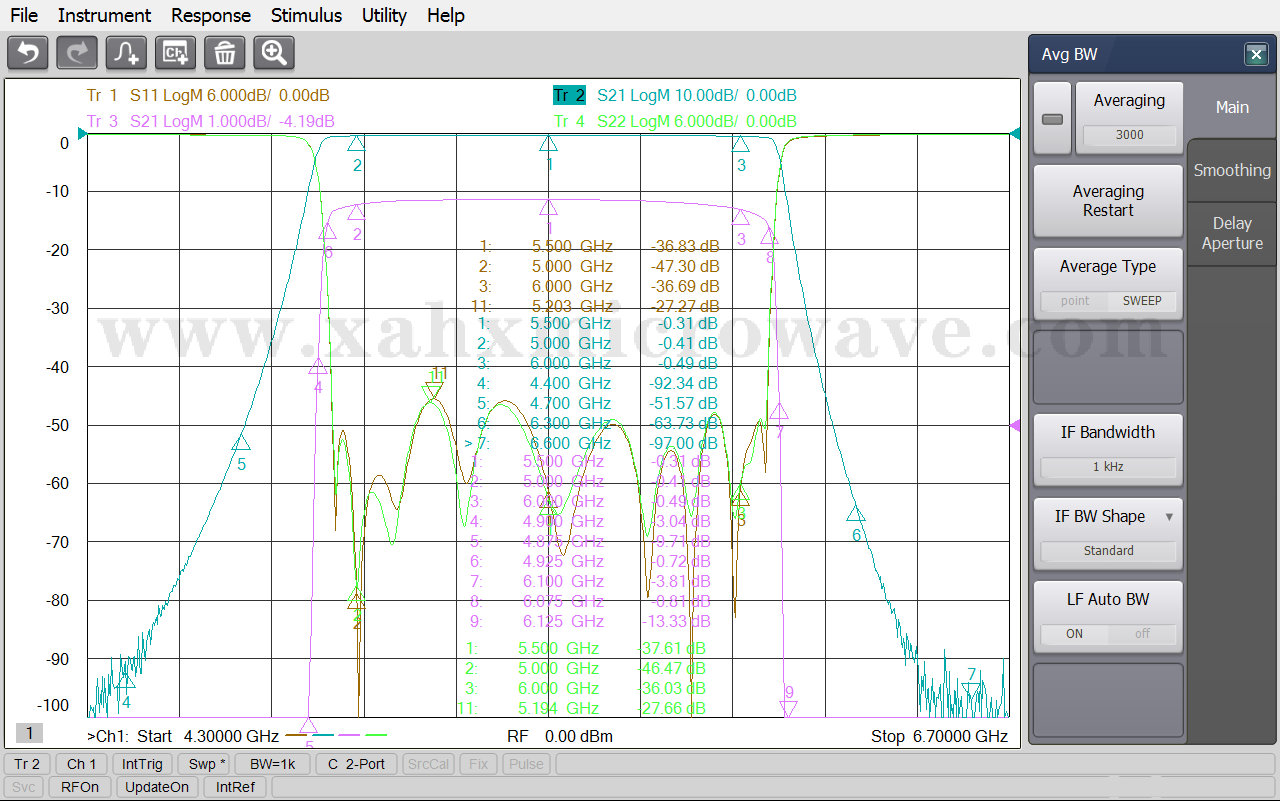

Test Curve
