| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 3450MHz | |
| ● | 3.0dB Bandwidth | 300MHz (3300 ~ 3600MHz) | |
| ● | Pass Band Bandwidth | 220MHz (3340 ~ 3560MHz) | |
| ● | Pass Band Insertion Loss | ≤1.0dB @ 3340 ~ 3560MHz | |
| ● | Pass Band Ripple | ≤0.5dB @ 3340 ~ 3560MHz | |
| ● | Pass Band Return Loss | ≥23dB @ 3340 ~ 3560MHz | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 3220MHz | ≥40dB @ 3680 ~ 8000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

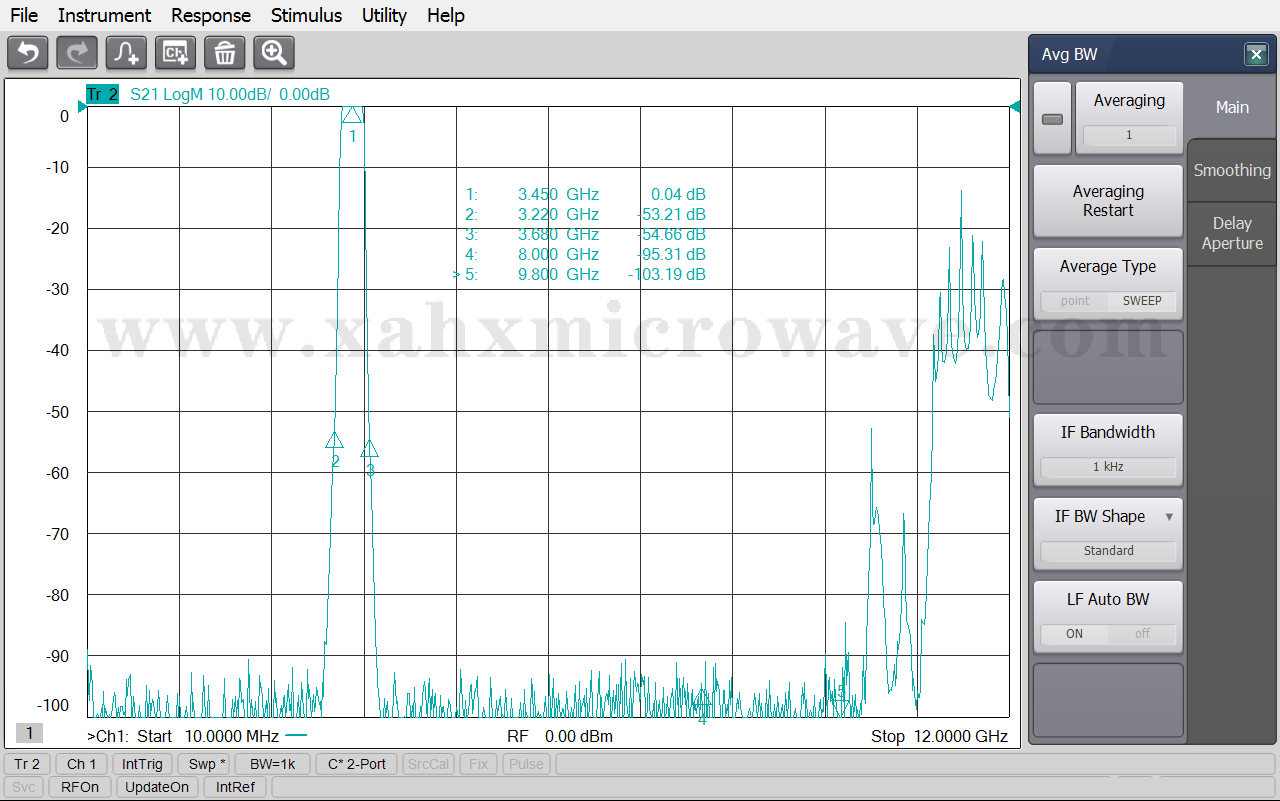

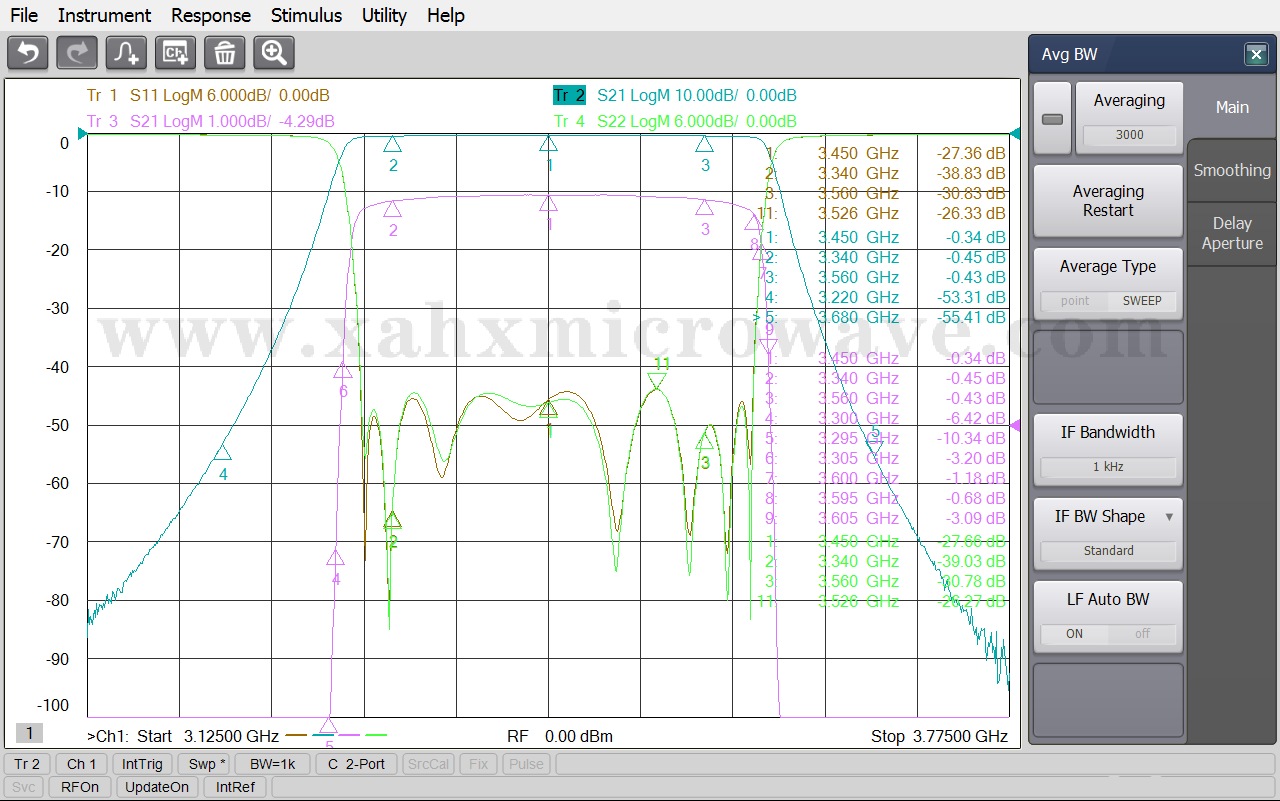

| Test Curve | |||
