| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 2850MHz | |
| ● | 3.0dB Bandwidth | 300MHz (2700 ~ 3000MHz) | |
| ● | Pass Band Bandwidth | 220MHz (2740 ~ 2960MHz) | |
| ● | Pass Band Insertion Loss | ≤1.5dB @ 2740 ~ 2960MHz | |
| ● | Pass Band Ripple | ≤0.8dB @ 2740 ~ 2960MHz | |
| ● | Pass Band Return Loss | ≥23dB @ 2740 ~ 2960MHz | |
| ● | Stop Band Rejection | ≥55dB @ DC ~ 2560MHz | ≥65dB @ 3140 ~ 9500MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

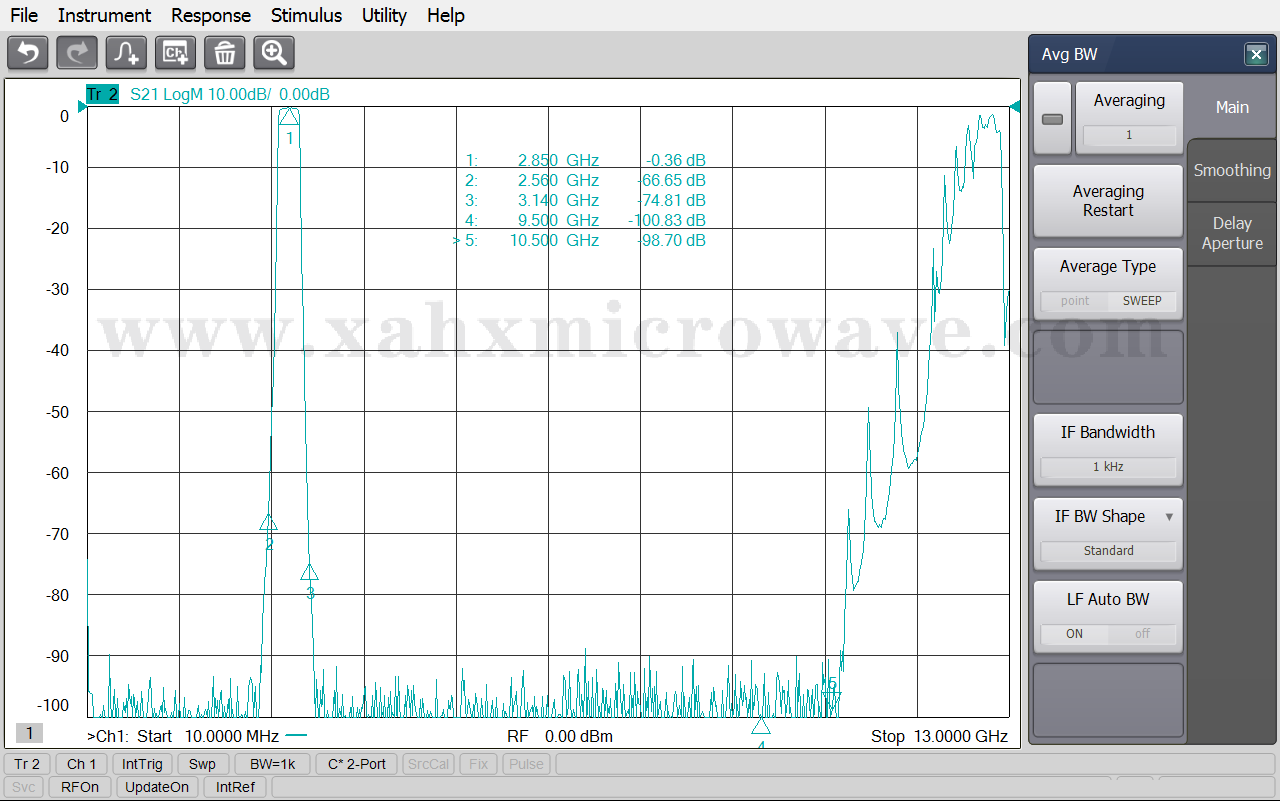

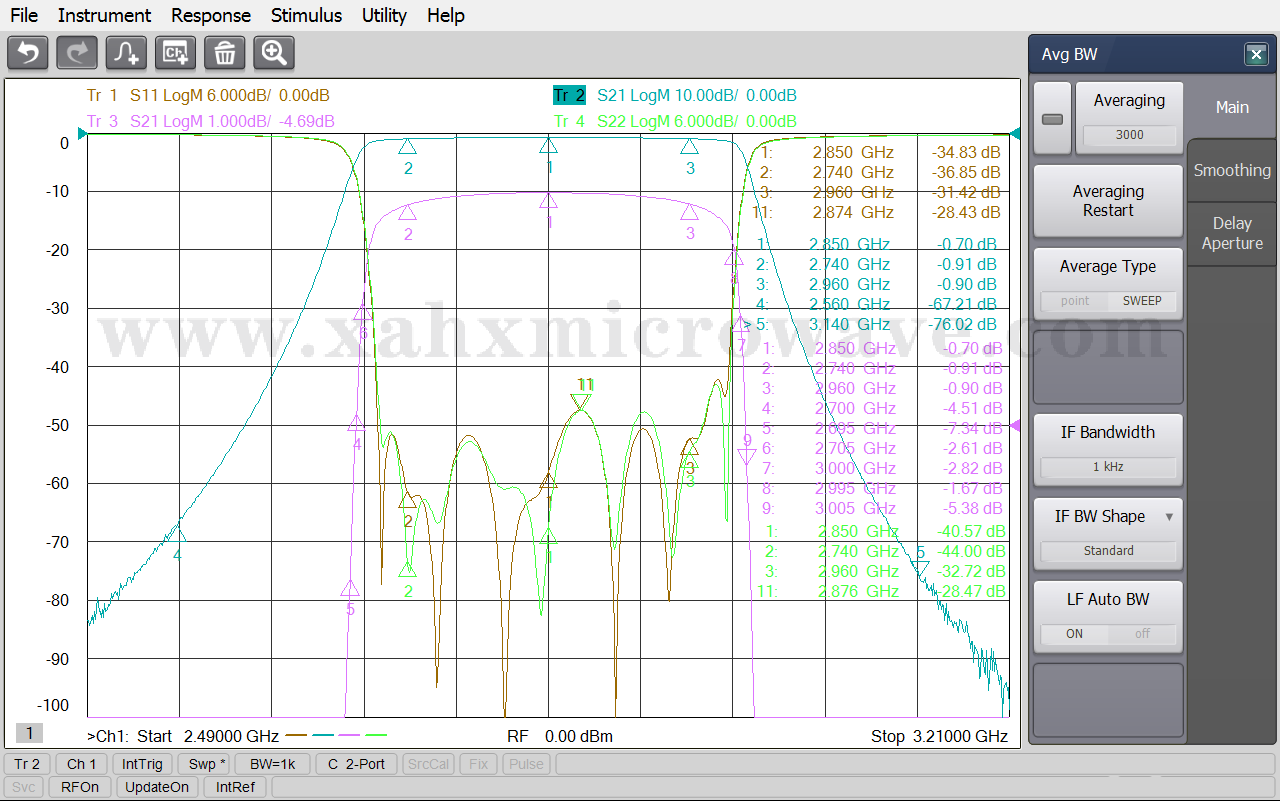

| Test Curve | |||
