  • 2400-2410MHz Cavity Band Pass Filter

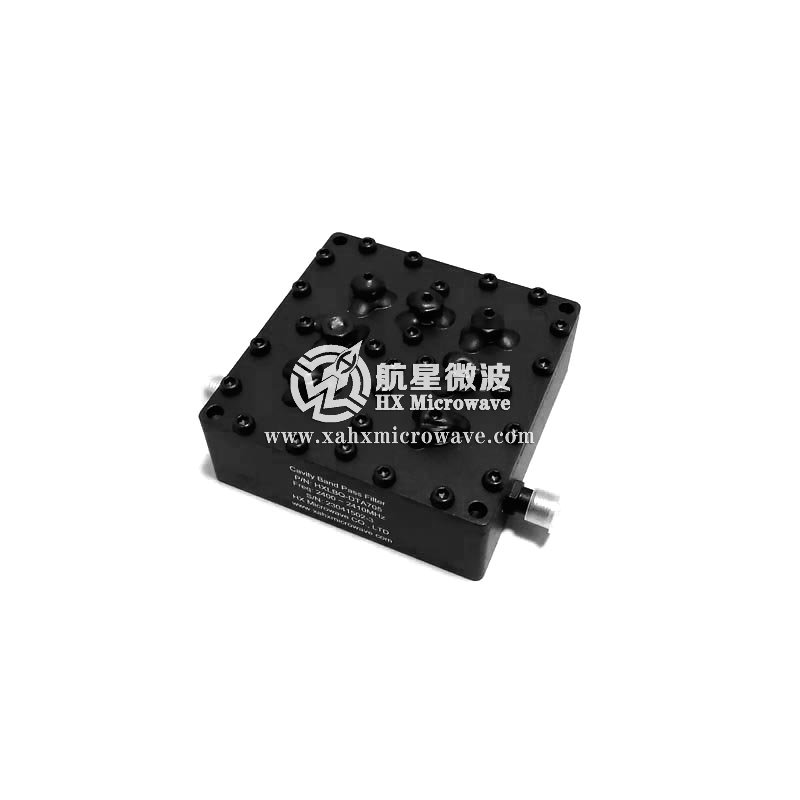

2400-2410MHz Cavity Band Pass Filter

2400-2410MHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA705
  • Pass Band Frequency:2400-2410MHz
  • Stop Band Attenuation:≥40dB
  • Connectors:SMA-Female
  • Product description:
  • PDF technical index download

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

2405MHz

2

Pass Band Frequency

2400 ~ 2410MHz **

3

Pass Band Insertion Loss

≤0.7dB

4

Pass Band Ripple

≤0.15dB

5

Pass Band Return Loss

≥23dB

6

Stop Band Rejection

≥40dB @ DC ~ 2350MHz

≥40dB @ 2460 ~ 6000MHz

7

Impedance

50 Ohms

8

Power Handling

20W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-20℃ ~ +60℃
