Band Pass Filter

  • 1150-1610MHz Comb Band Pass Filter

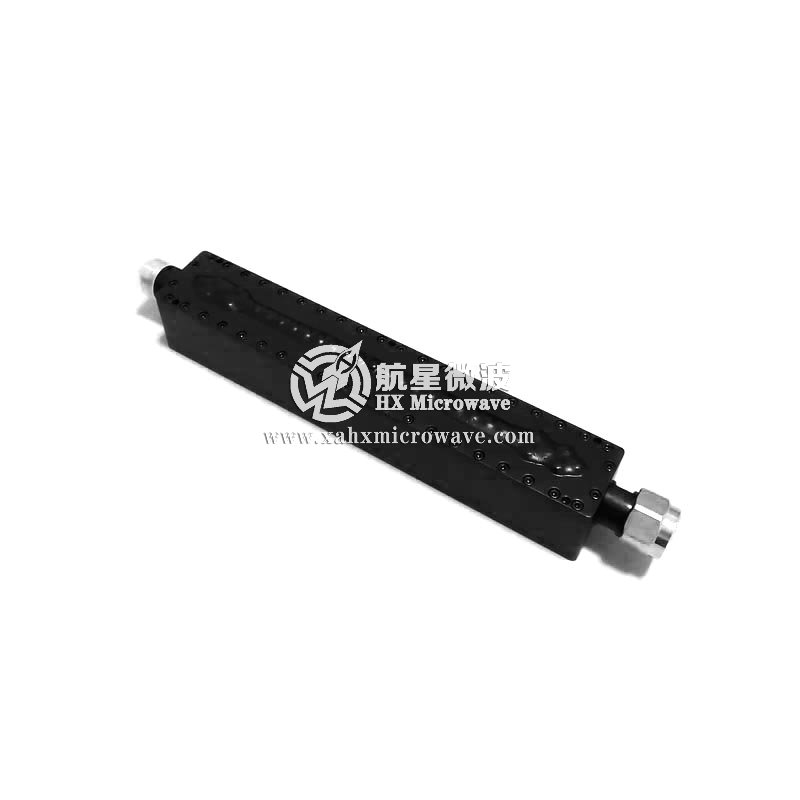

1150-1610MHz Comb Band Pass Filter

1150-1610MHz Comb Band Pass Filter

  • P/N:HXLBQ-DTA701
  • Pass Band Frequency:1150-1610MHz
  • Stop Band Attenuation:≥40dB
  • Connectors:N-Male / N-Female
  • Product description:
  • PDF technical index download

Comb Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

1380MHz

2

Pass Band Frequency

1150 ~ 1610MHz

3

Pass Band Insertion Loss

≤1.0dB

4

Pass Band Ripple

≤0.5dB

5

Pass Band Return Loss

≥18dB

6

Stop Band Rejection

≥40dB @ DC ~ 1050MHz

≥70dB @ 1710 ~ 5000MHz

7

Impedance

50 Ohms

8

Power Handling

5.0W Max.

9

Connectors

N-Male / N-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
