Band Pass Filter

  • 1300-2300MHz Interdigital Band Pass Filter
1300-2300MHz Interdigital Band Pass Filter

1300-2300MHz Interdigital Band Pass Filter

  • P/N:HXLBQ-DTA678
  • Pass Band Frequency:1300-2300MHz
  • Stop Band Attenuation:≥20dB
  • Connectors:SMA-Female
  • Product description:
  • PDF technical index download

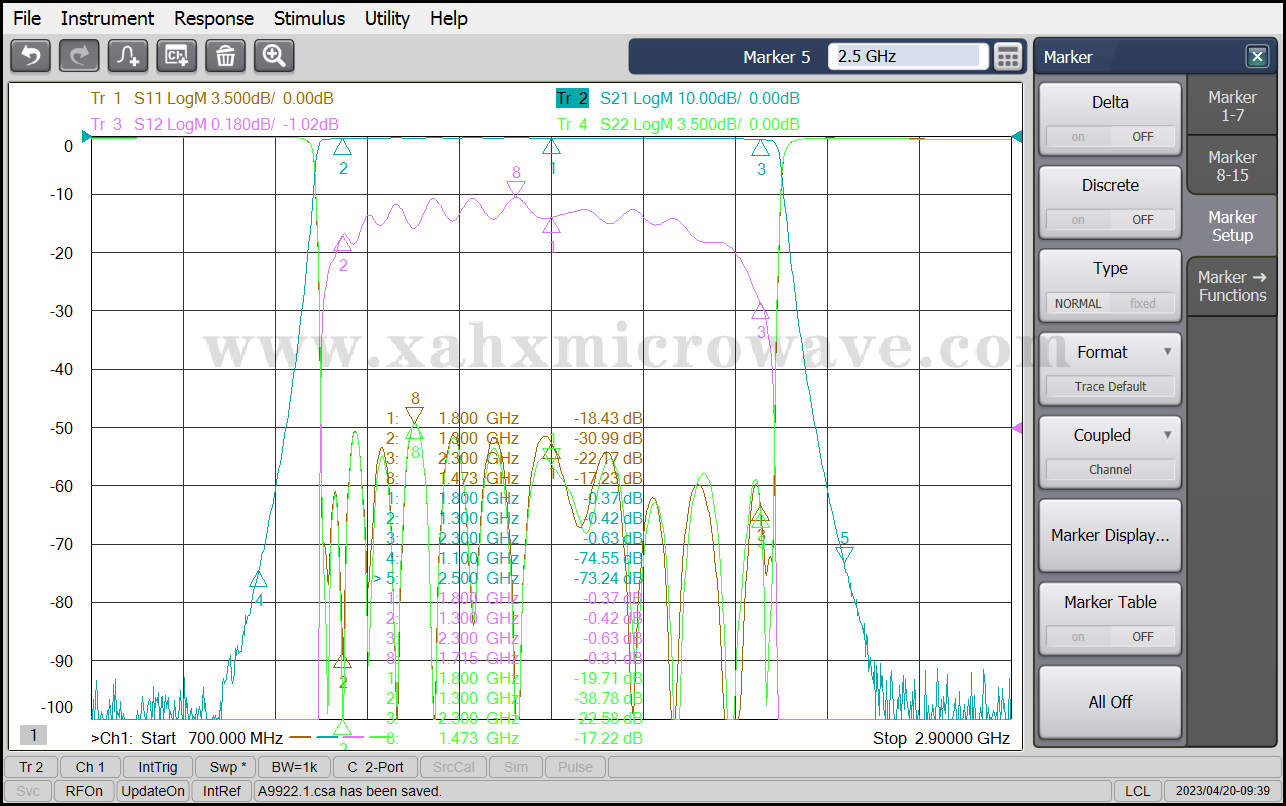

Interdigital Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

1800MHz

2

Pass Band Frequency

1300 ~ 2300MHz **

3

Pass Band Insertion Loss

≤1.0dB

4

Pass Band Ripple

≤0.7dB

5

Pass Band Return Loss

≥14dB

6

Stop Band Rejection

≥60dB @ DC ~ 1100MHz

≥60dB @ 2500 ~ 4000MHz

7

Impedance

50 Ohms

8

Power Handling

5.0W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
