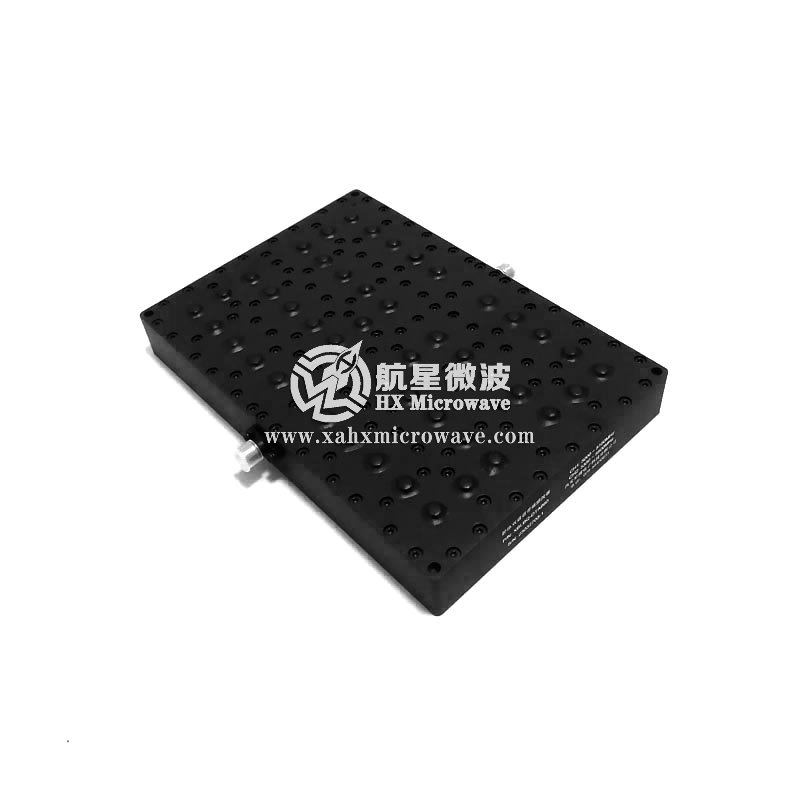

  • 5000-5150MHz 5350-5500MHz Cavity Dual Pass Band Filter
5000-5150MHz 5350-5500MHz Cavity Dual Pass Band Filter

5000-5150MHz 5350-5500MHz Cavity Dual Pass Band Filter

  • P/N:HXLBQ-DTA660
  • Pass Band Frequency:5000-5150MHz 5350-5500MHz
  • Stop Band Attenuation:≥20dB
  • Connectors:SMA-Female
  • Product description:
  • PDF technical index download

Cavity Dual Pass Band Filter
Technical Data Sheet

S/N

Item

Parameters

CH1

CH2

1

Center Frequency(F0)

5075MHz

5425MHz

2

Pass Band Frequency

5000 ~ 5150MHz

5350 ~ 5500MHz

3

Pass Band Insertion Loss

≤2.0dB

≤2.0dB

4

Pass Band Ripple

≤1.3dB

≤1.3dB

5

Pass Band Return Loss

≥18dB

≥18dB

6

Stop Band Rejection

≥20dB @ DC ~ 4980MHz , 5170 ~ 5330MHz , 5520 ~ 8000MHz

7

Impedance

50 Ohms

8

Power

10W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black
