Technical Data Sheet
●	Center Frequency(F0)	1581.5MHz
●	Pass Band Frequency	1557 ~ 1606MHz
●	Pass Band Insertion Loss	≤1.2dB
●	Pass Band Ripple	≤0.6dB
●	Pass Band Return Loss	≥20dB
●	Stop Band Rejection	≥80dB @ DC ~ 1507MHz	≥80dB @ 1656 ~ 4000MHz
●	Impedance	50 Ohms
●	Power Handling	20W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-20℃ ~ +60℃

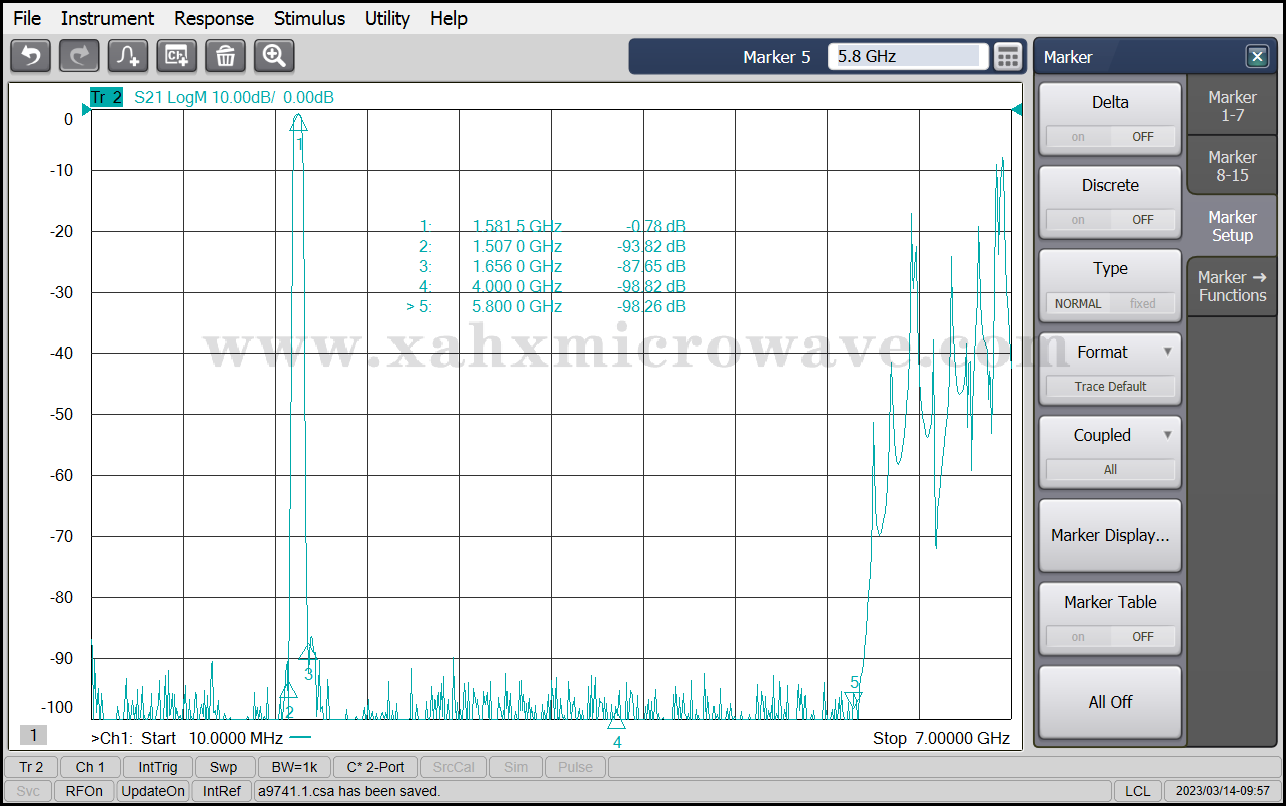

Test Curve
