Technical Data Sheet
●	Center Frequency(F0)	1842.5MHz
●	Pass Band Frequency	1805 ~ 1880MHz
●	Pass Band Insertion Loss	≤2.0dB
●	Pass Band Ripple	≤1.2dB
●	Pass Band Return Loss	≥20dB
●	Stop Band Rejection	≥80dB @ DC ~ 1765MHz	≥80dB @ 1920 ~ 3500MHz
●	Impedance	50 Ohms
●	Power	20W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	0℃ ~ +50℃

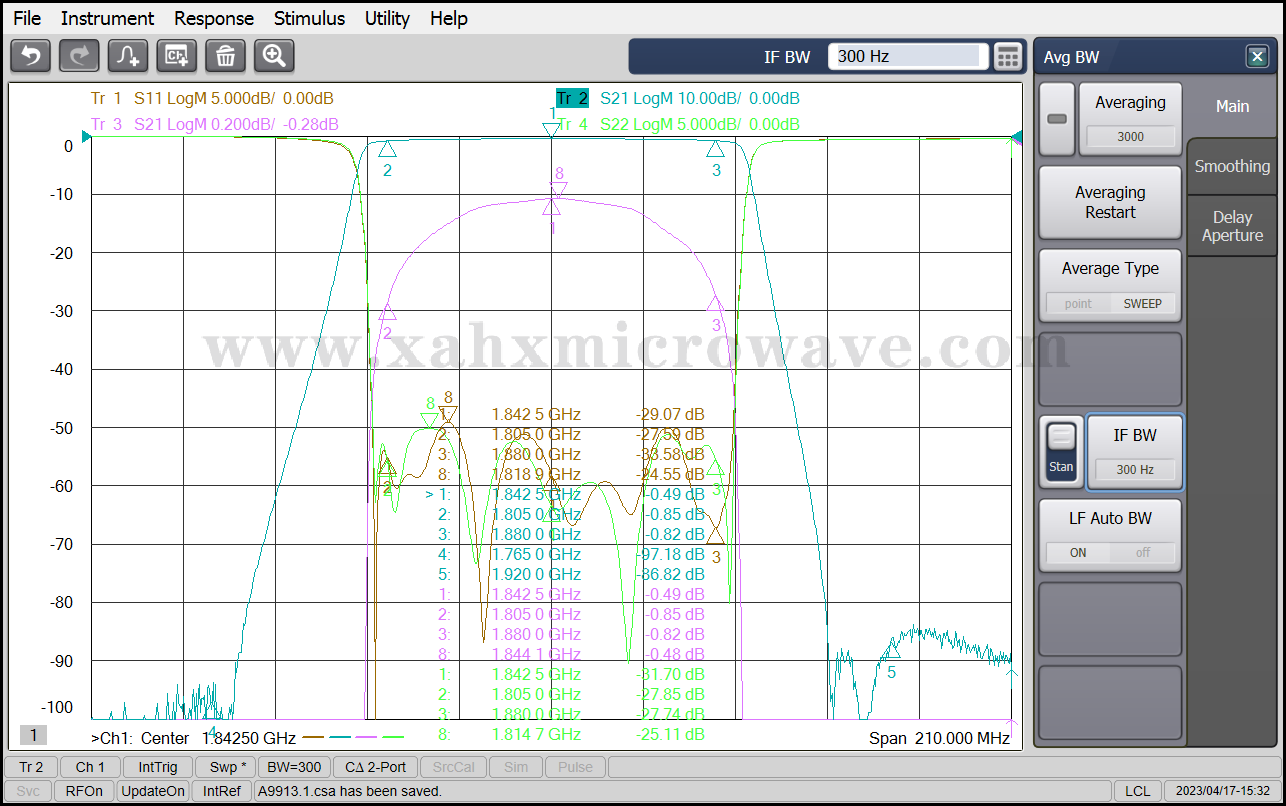

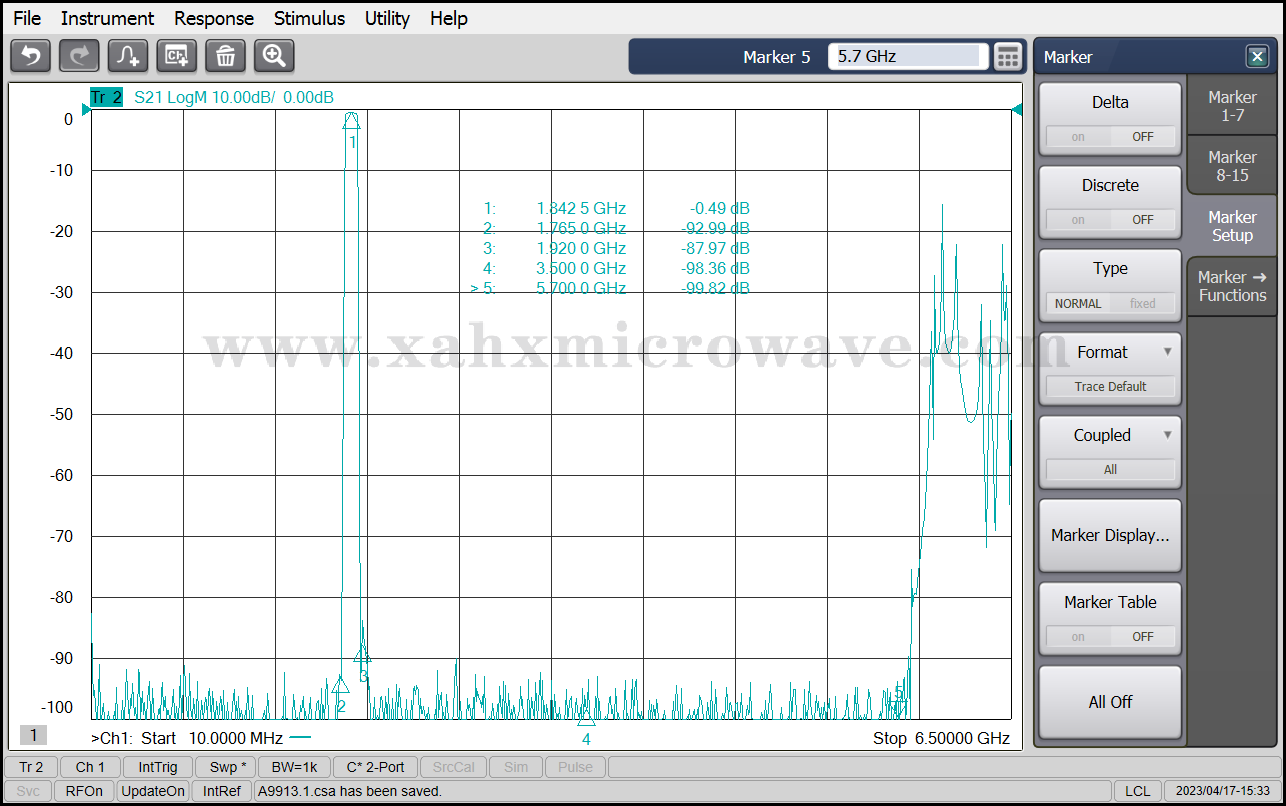

Test Curve
