  • 2620-2690MHz Cavity Band Pass Filter
2620-2690MHz Cavity Band Pass Filter

2620-2690MHz Cavity Band Pass Filter

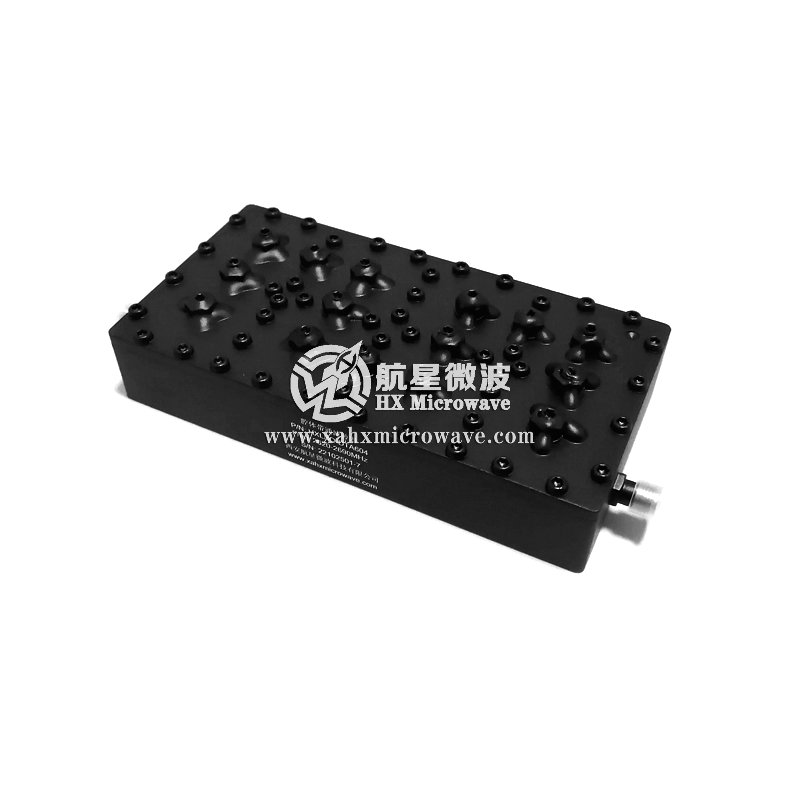

  • P/N:HXLBQ-DTA604
  • Pass Band Frequency:2620-2690MHz
  • Stop Band Attenuation:≥60dB
  • Connectors:SMA-Female
  • Product description:
  • PDF technical index download

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

2655MHz

2

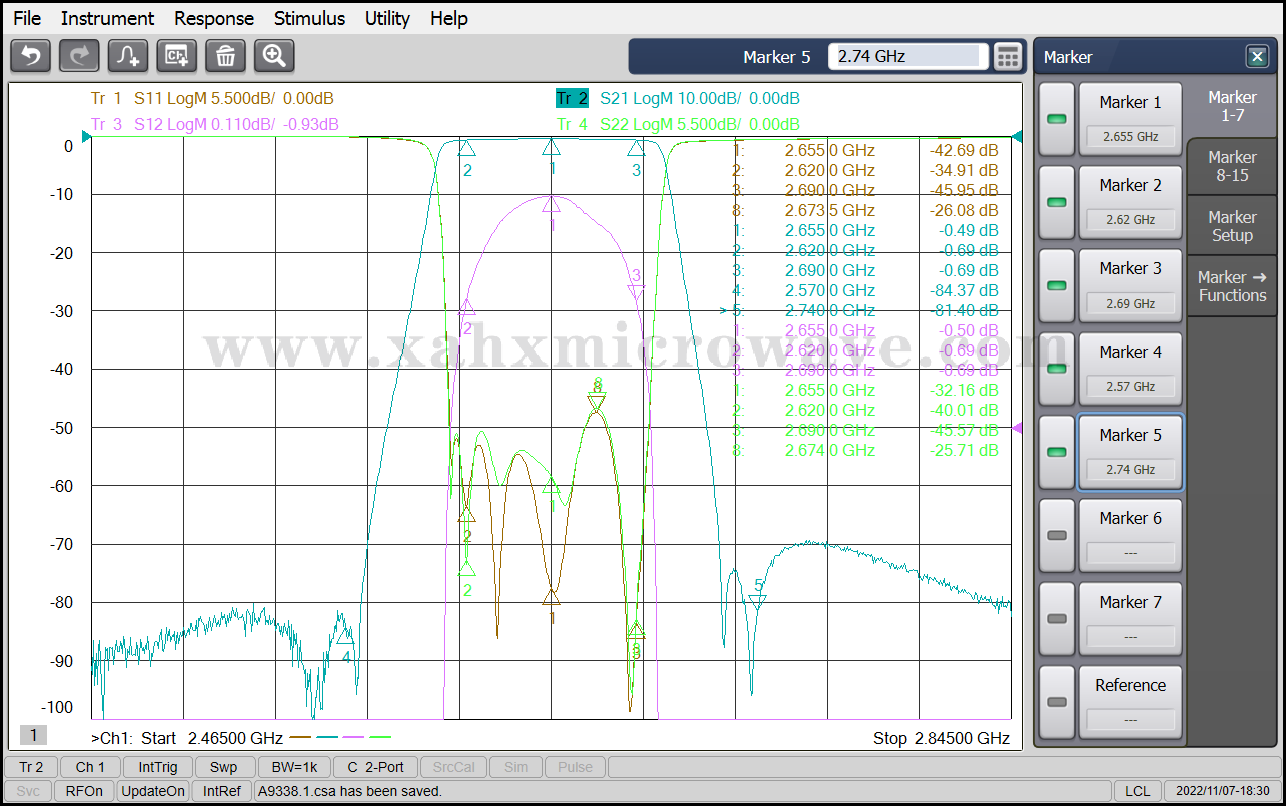

Pass Band Frequency

2620 ~ 2690MHz

3

Pass Band Insertion Loss

1.0dB

4

Pass Band Ripple

0.5dB

5

Pass Band Return Loss

≥20dB

6

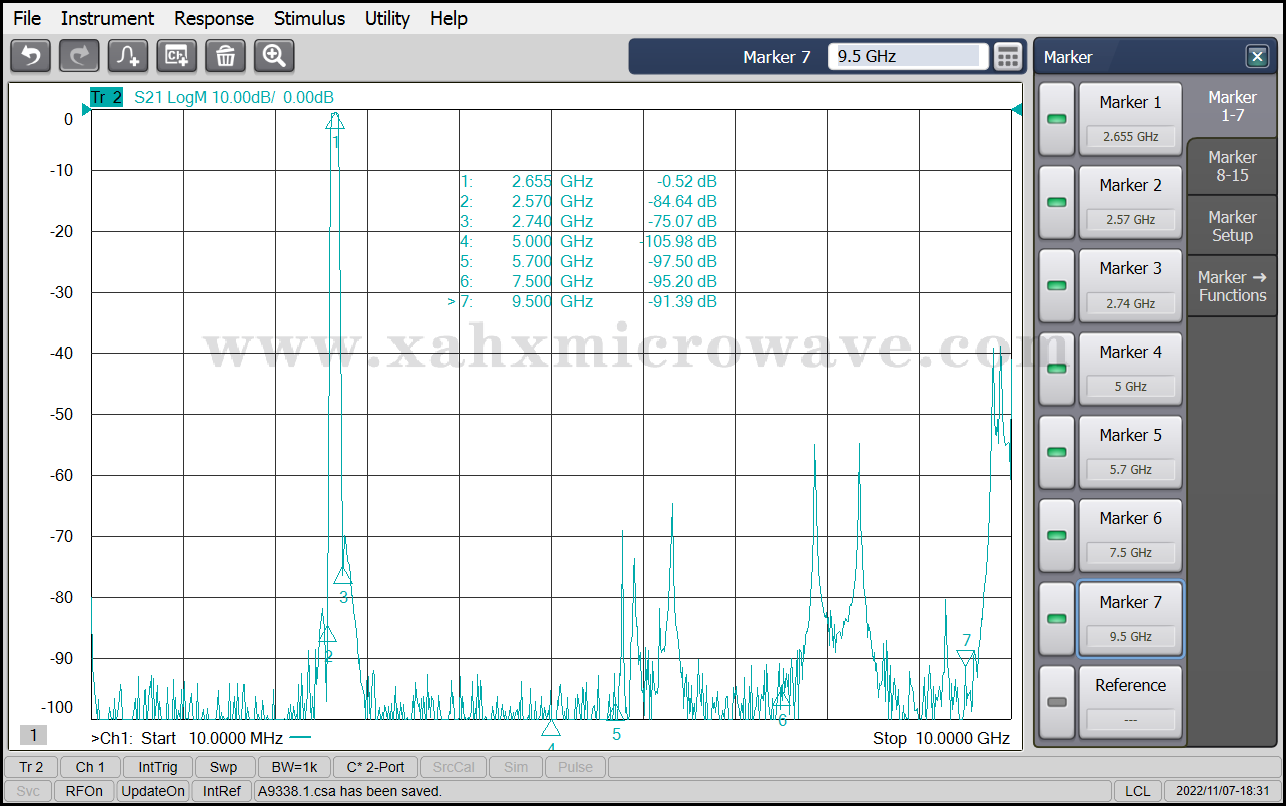

Stop Band Rejection

≥60dB @ DC ~ 2570MHz

≥60dB 2740 ~ 5000MHz

7

Impedance

50 Ohms

8

Power Handling

20W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
