Technical Data Sheet
●	Center Frequency(F0)	3450MHz
●	Pass Band Frequency	3400 ~ 3500MHz
●	Pass Band Insertion Loss	≤1.7dB
●	Pass Band Ripple	≤0.8dB
●	Pass Band Return Loss	≥20dB
●	Stop Band Rejection	≥40dB @ DC ~ 3375MHz	≥40dB @ 3525 ~ 7000MHz
●	Impedance	50 Ohms
●	Power Handling	20W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

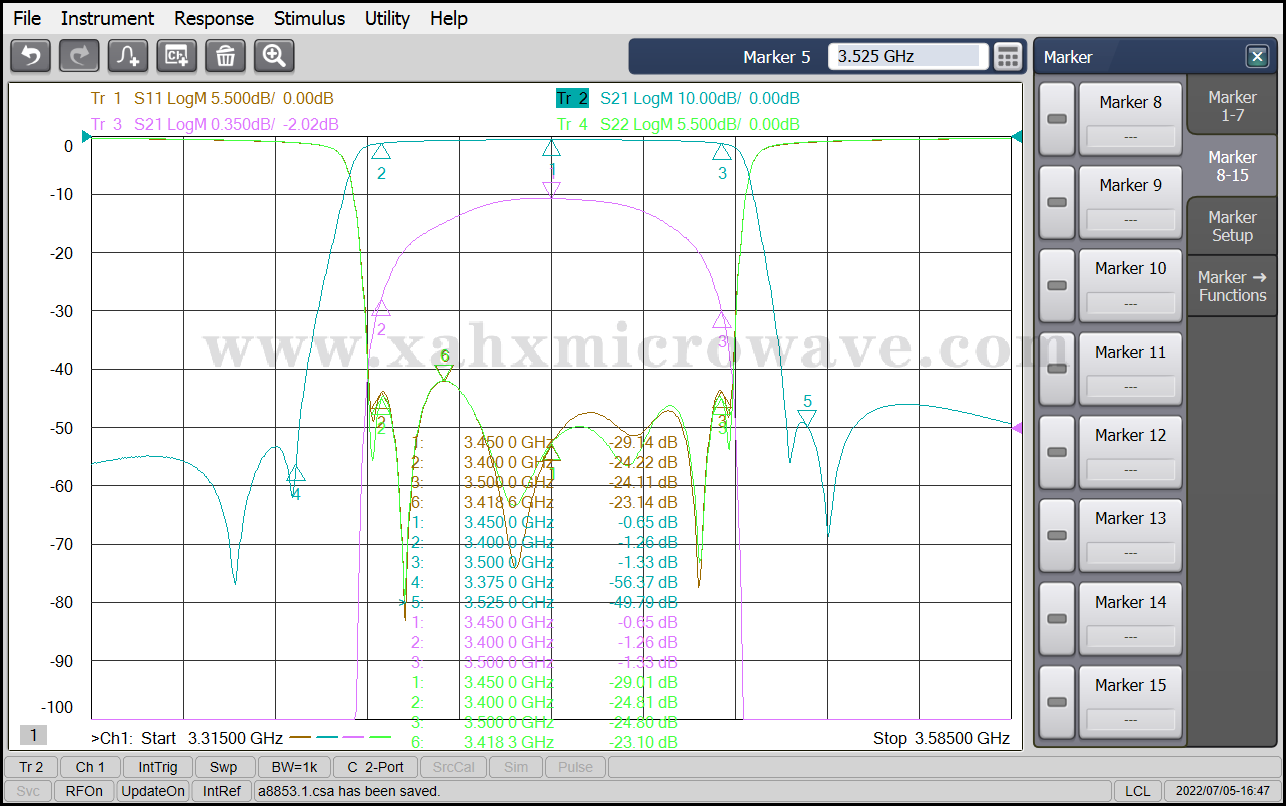

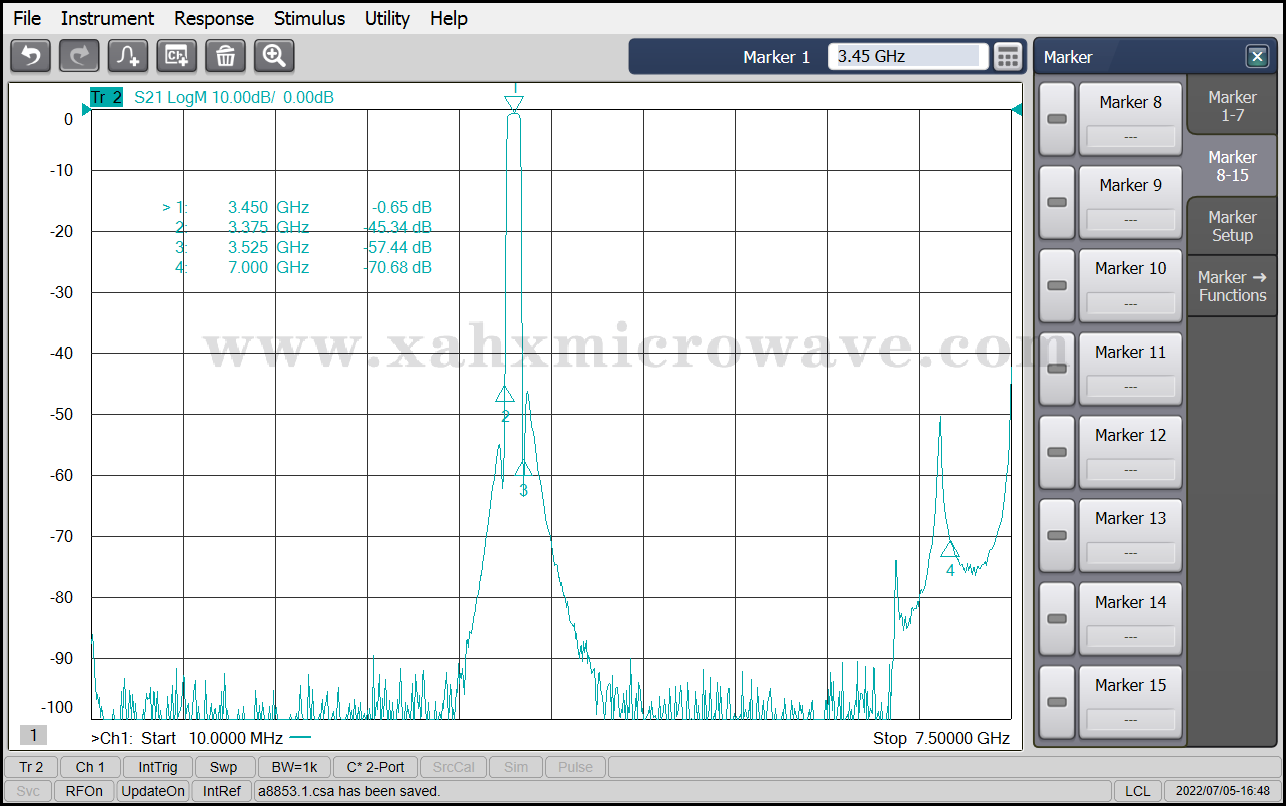

Test Curve
