  • 1065-1115MHz Cavity Band Pass Filter
1065-1115MHz Cavity Band Pass Filter

1065-1115MHz Cavity Band Pass Filter

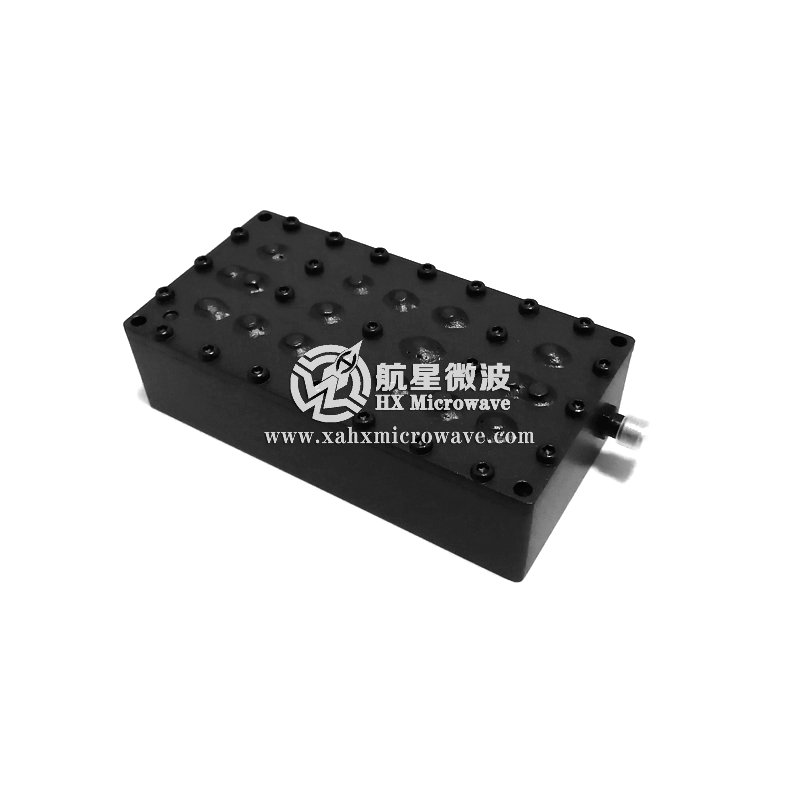

  • P/N:HXLBQ-DTA533
  • Pass Band Frequency:1065-1115MHz
  • Stop Band Attenuation:≥40dB
  • Connectors:SMA-Female
  • Product description:
  • PDF technical index download

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

1090MHz

2

Pass Band Frequency

1065 ~ 1115MHz

3

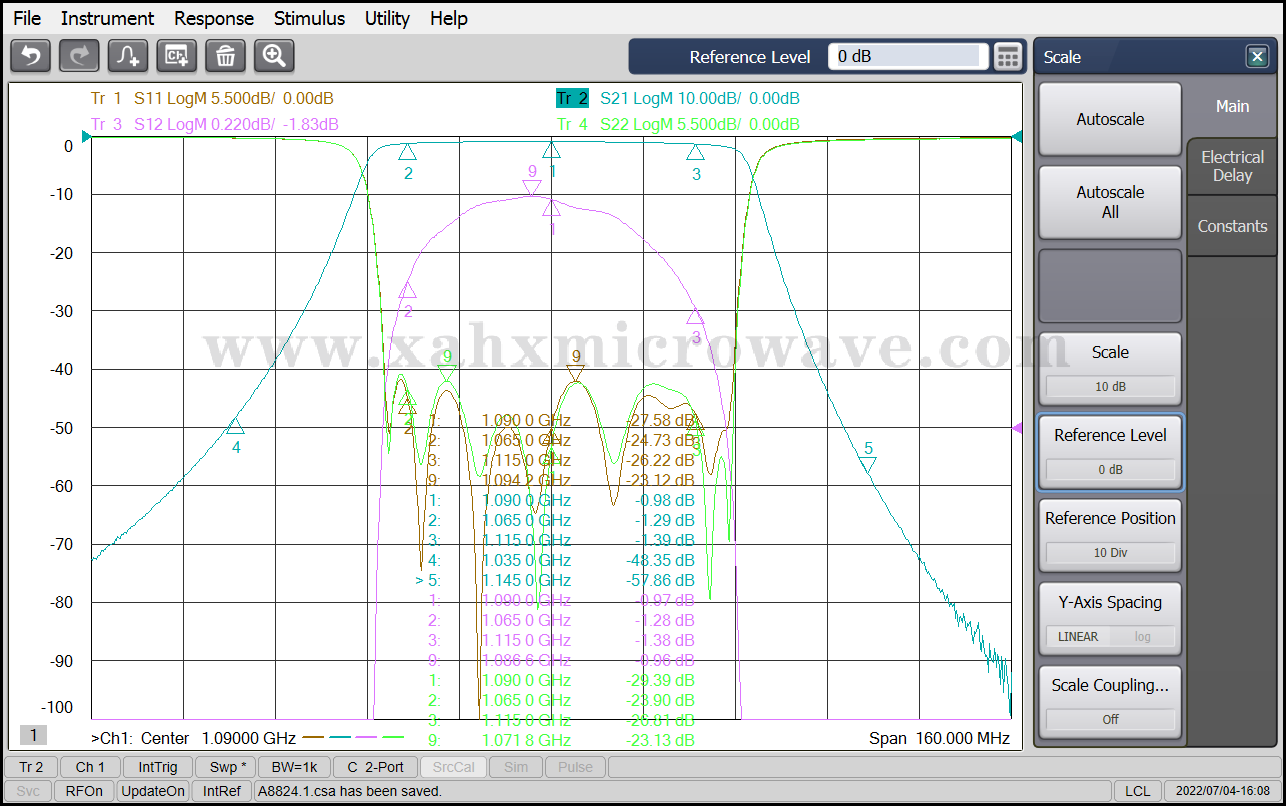

Pass Band Insertion Loss

≤1.7dB

4

Pass Band Ripple

0.5dB

5

Pass Band Return Loss

≥20dB

6

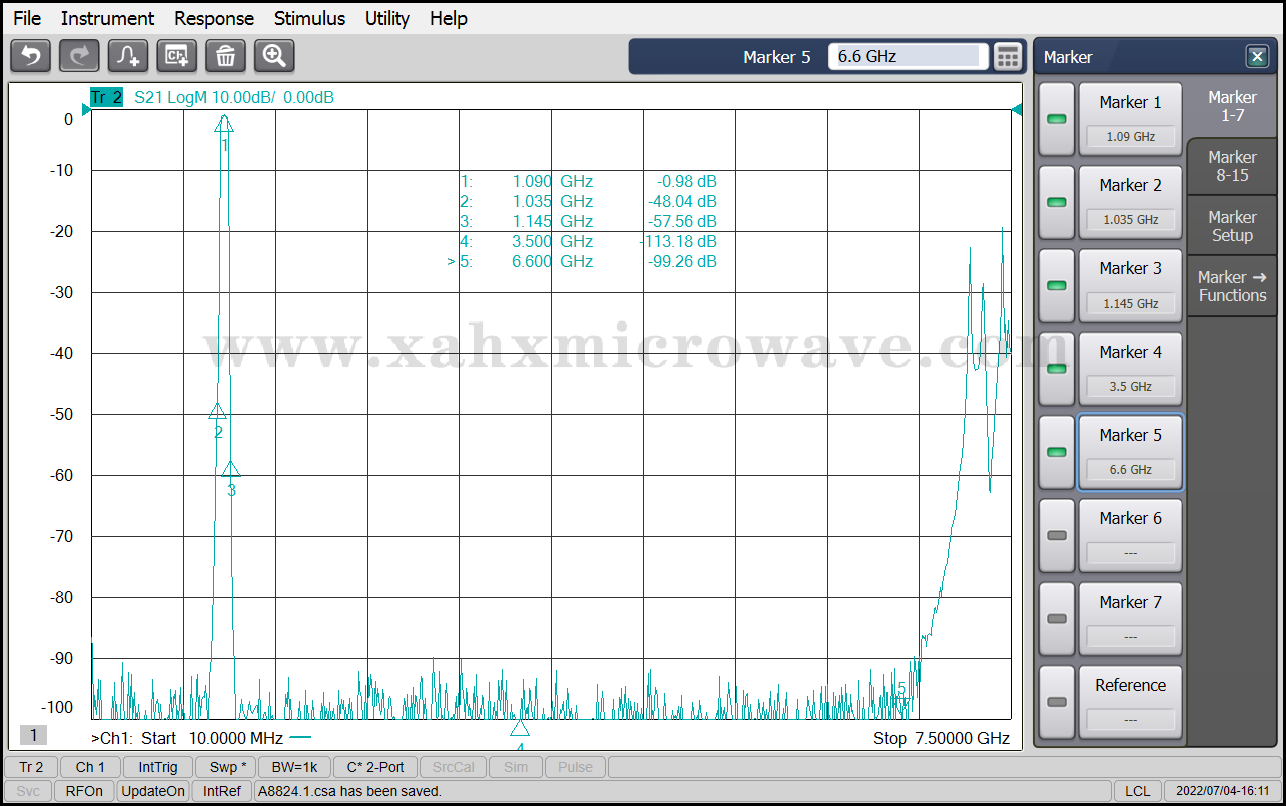

Stop Band Attenuation

≥40dB @ DC ~ 1035MHz

≥40dB @ 1145 ~ 3500MHz

7

Impedance

50 Ohms

8

Power Handling

30W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
