Technical Data Sheet
●	Center Frequency(F0)	9000MHz
●	Pass Band Frequency	8000 ~ 10000MHz
●	Pass Band Insertion Loss	≤1.0dB
●	Pass Band Ripple	≤0.45dB
●	Pass Band Return Loss	≥20dB
●	Stop Band Rejection	≥80dB @ DC ~ 7000MHz	≥80dB @ 10850 ~ 32000MHz
●	Impedance	50 Ohms
●	Power Handling	2.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

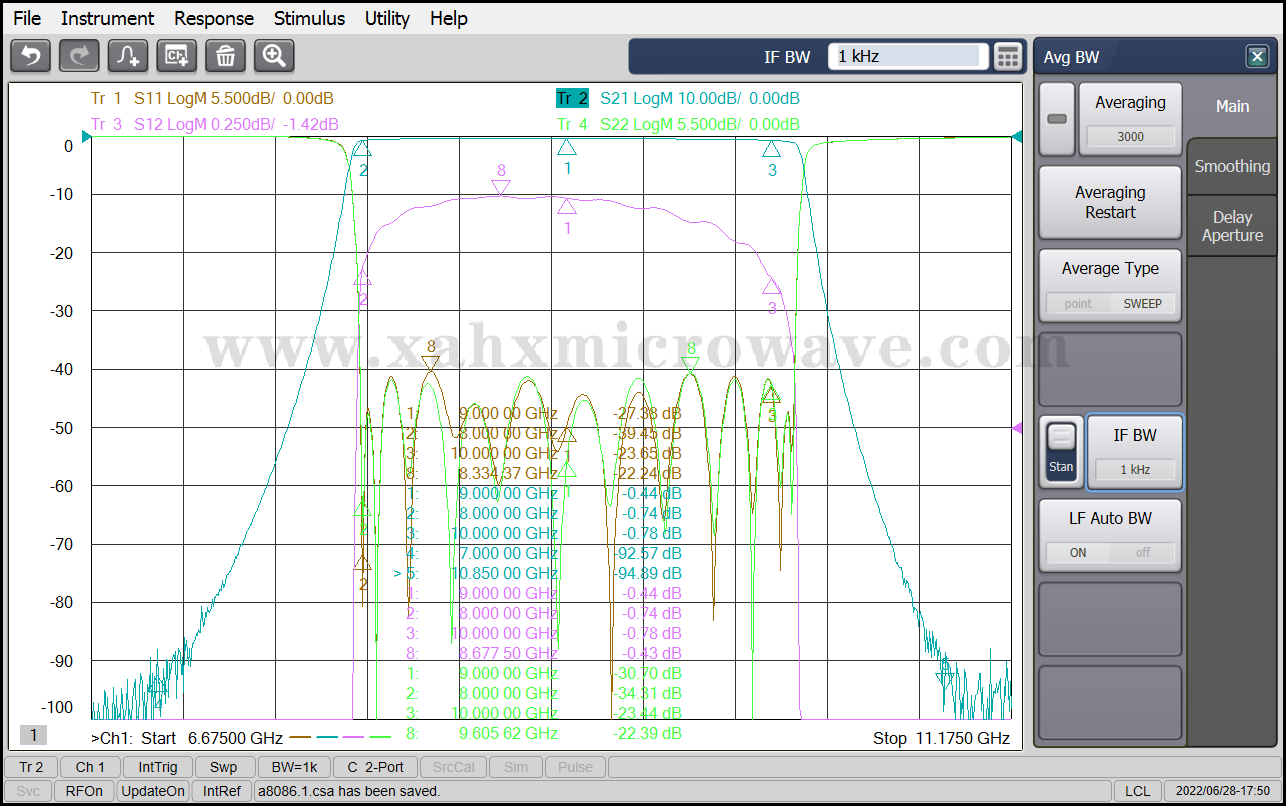

Test Curve
