Band Pass Filter

  • 566-576MHz Cavity Band Pass Filter
566-576MHz Cavity Band Pass Filter

566-576MHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA462
  • Pass Band Frequency:566-576MHz
  • Stop Band Attenuation:≥50dB
  • Connectors:N-Male / N-Female
  • Product description:
  • PDF technical index download

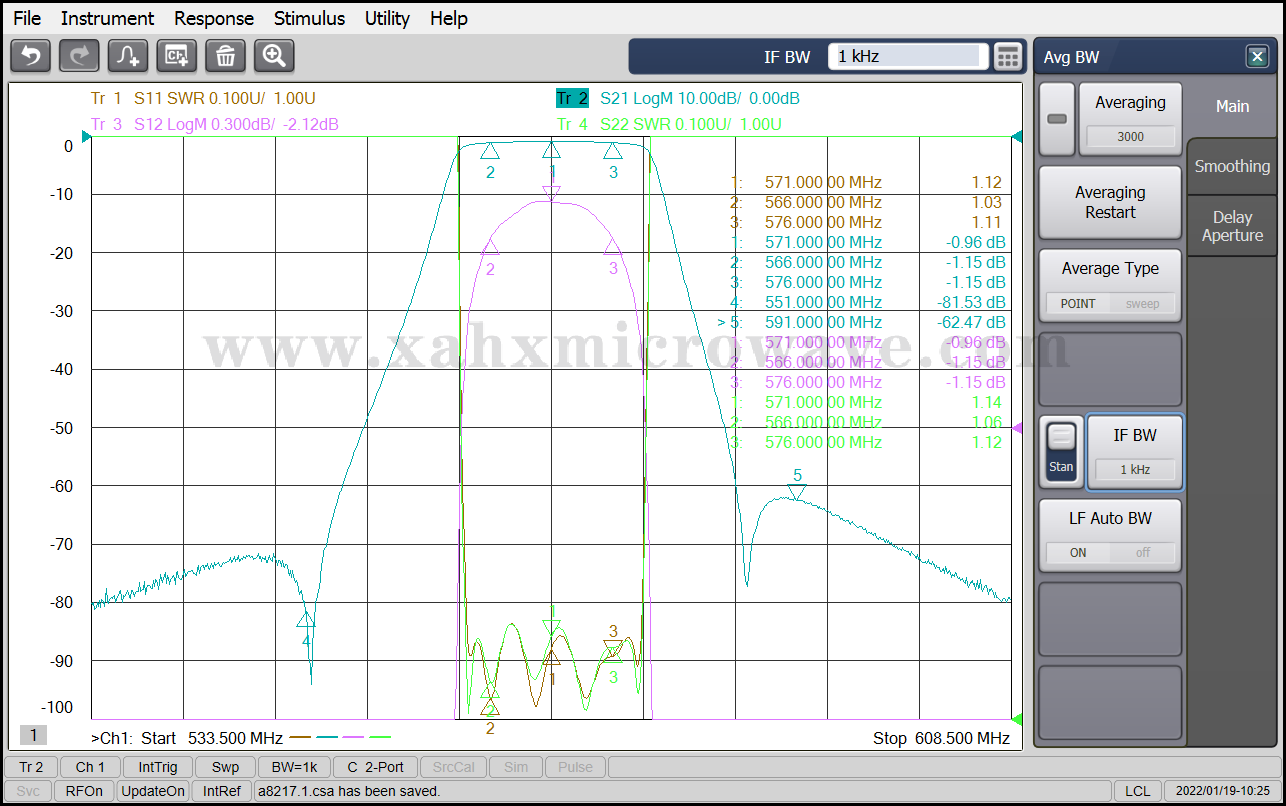

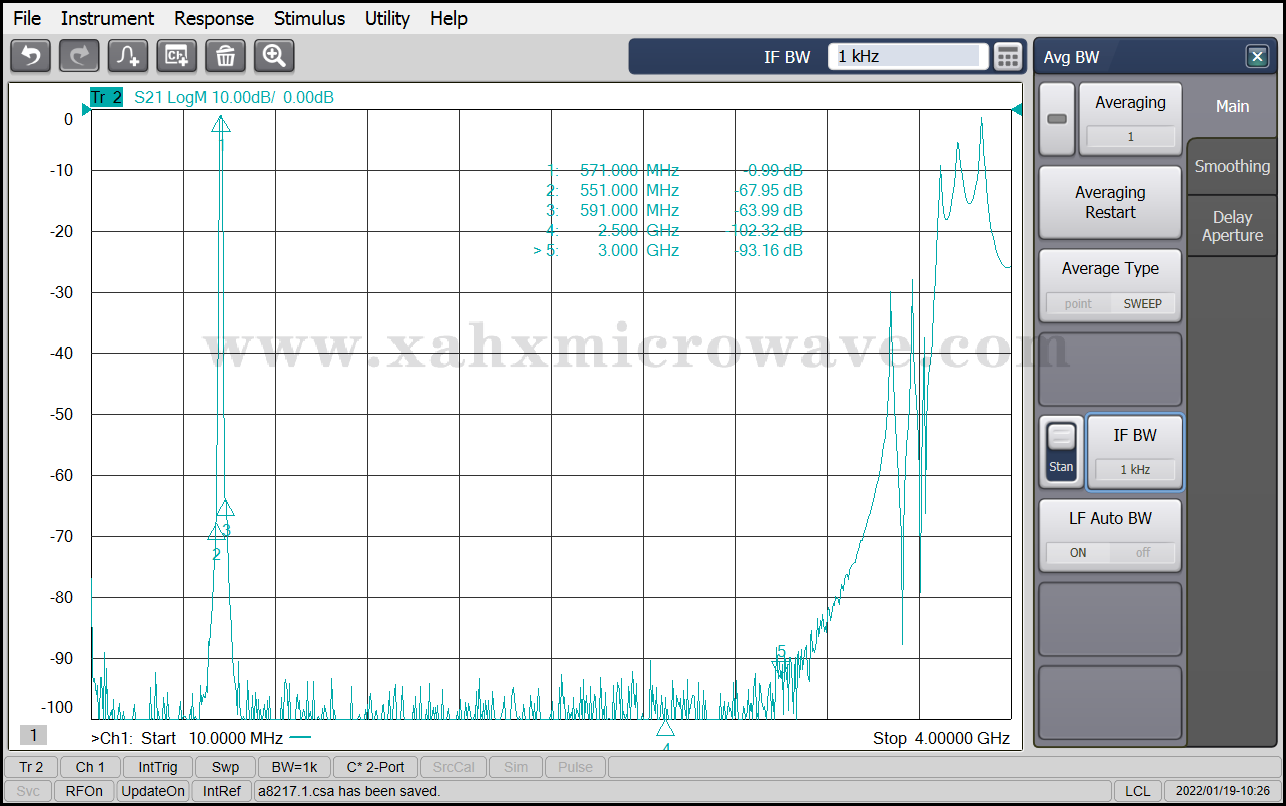

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

571MHz

2

Pass Band Frequency

566 ~ 576MHz

3

Pass Band Insertion Loss

≤1.3dB

4

Pass Band Ripple

0.6dB

5

Pass Band VSWR

≤1.22:1

6

Stop Band Rejection

≥50dB @ DC ~ 551MHz

≥50dB @ 591 ~ 2500MHz

7

Impedance

50 Ohms

8

Power Handling

30Max.

9

Connectors

N-Male / N-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
