  • 1760-1830MHz Cavity Band Pass Filter
1760-1830MHz Cavity Band Pass Filter

1760-1830MHz Cavity Band Pass Filter

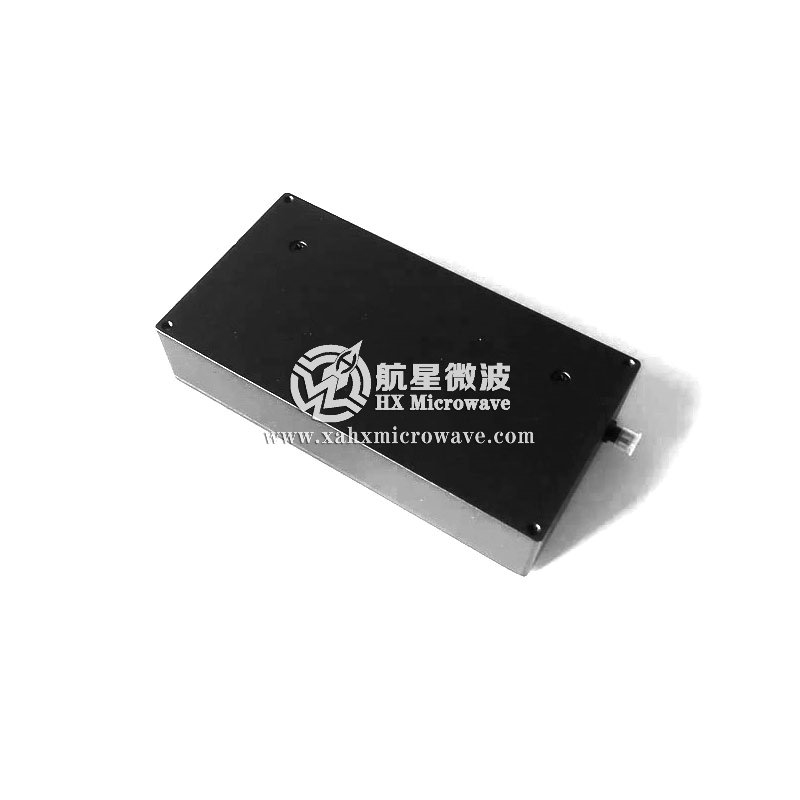

  • P/N:HXLBQ-DTA440X
  • Pass Band Frequency:1760-1830MHz
  • Stop Band Attenuation:≥40dB
  • Connectors:SMA-Female
  • Product description: Small size and high cost performance_Low standing wave and low insertion loss_Inhibition of high_Ultra Wide Band Filter_Narrow Band Filter_Suspended Stripline Filter_Cavity Filter_LC Filter_Interdigit
  • PDF technical index download

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

1795MHz

2

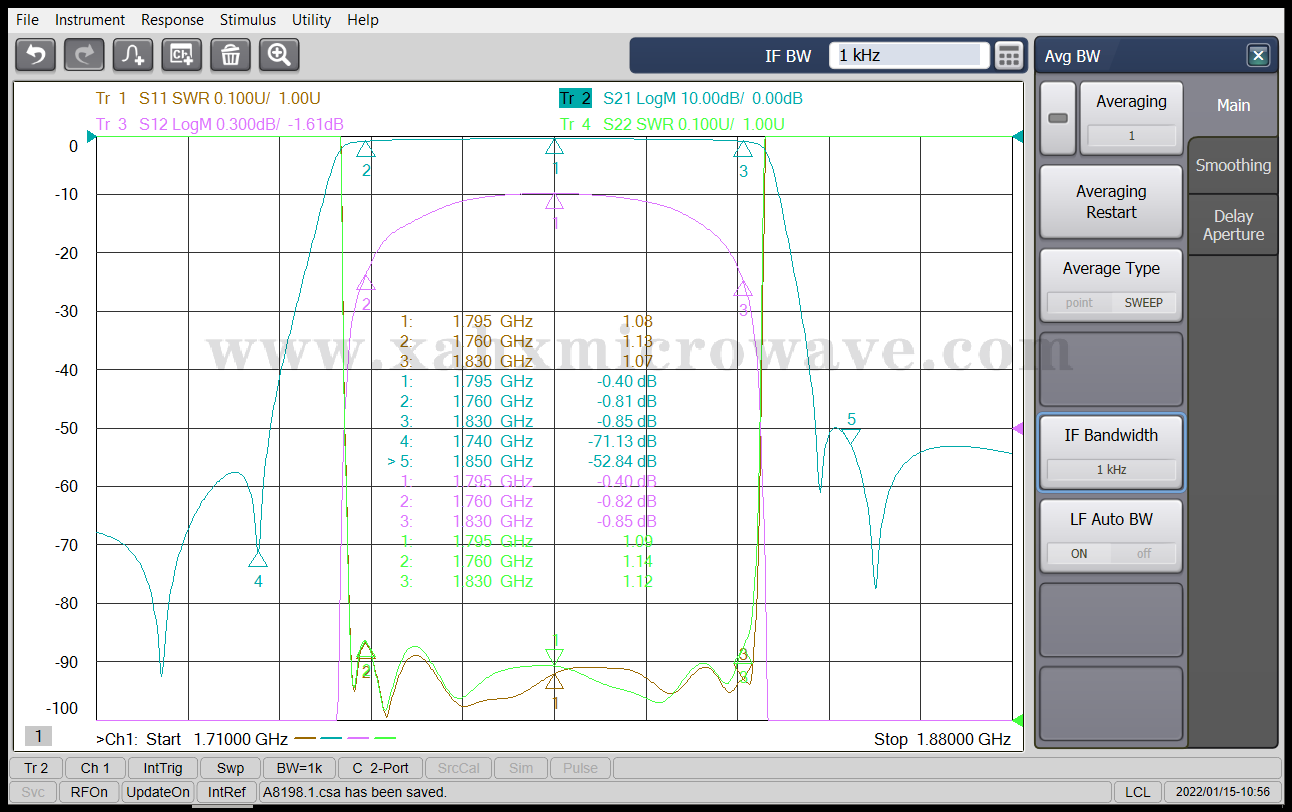

Pass Band Frequency

1760 ~ 1830MHz

3

Pass Band Insertion Loss

≤1.2dB

4

Pass Band Ripple

0.6dB

5

Pass Band VSWR

≤1.22:1

6

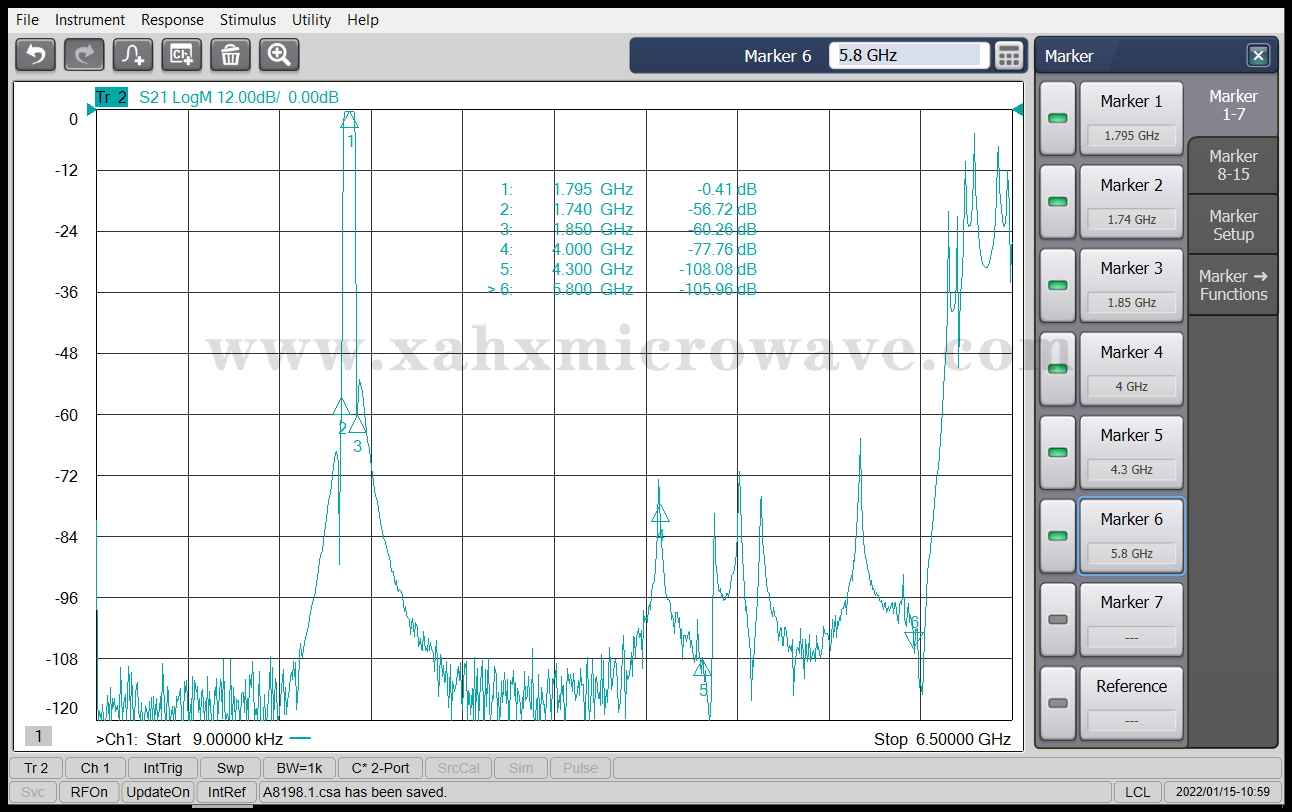

Stop Band Rejection

≥40dB @ DC ~ 1740MHz

≥40dB @ 1850 ~ 4000MHz

7

Impedance

50 Ohms

8

Power Handling

100Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
