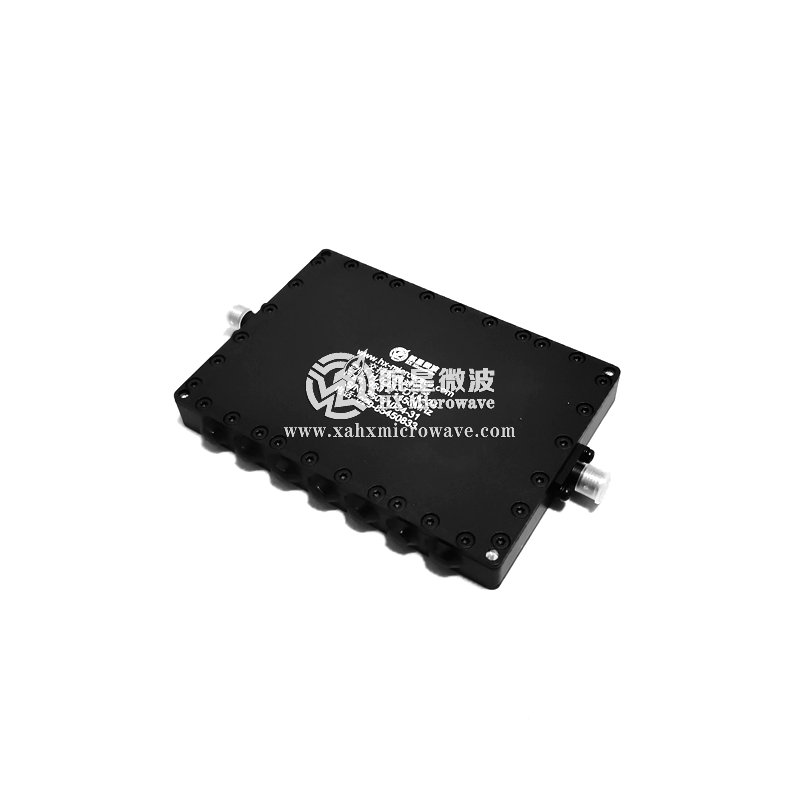

  • 950-1450MHz Interdigital Band Pass Filter
950-1450MHz Interdigital Band Pass Filter

950-1450MHz Interdigital Band Pass Filter

  • P/N：HXLBQ-DTA424
  • Pass Band Bandwidth:950 ~ 1450MHz
  • Stop Band Attenuation：≥35dB
  • Connectors：SMA-Female
  • Product description: Small size and high cost performance_Low standing wave and low insertion loss_Inhibition of high_Ultra Wide Band Filter_Narrow Band Filter_Suspended Stripline Filter_Cavity Filter_LC Filter_Interdigit
  • PDF technical index download
Technical Data Sheet
● Center Frequency(F0) 1200MHz
● Pass Band Bandwidth 500MHz (950 ~ 1450MHz)
● Pass Band Insertion Loss ≤1.5dB
● Pass Band Ripple ≤0.8dB
● Pass Band VSWR ≤1.5:1
● Stop Band Rejection ≥35dB @ DC ~ 850MHz ≥35dB @ 1550 ~ 2500MHz
● Impedance 50 Ohms
● Power Handling 2W Max.
● Connectors SMA-Female
● Surface Finish Painted Black
Test Curve
