Band Pass Filter

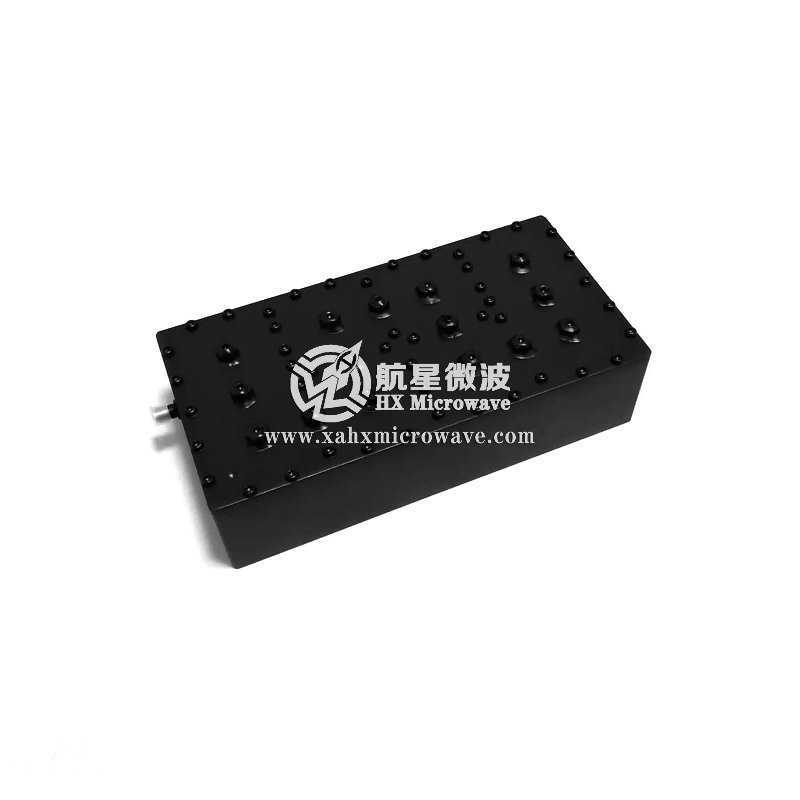

540-560MHz Cavity Band Pass Filter

P/N：HXLBQ-DTA402
Pass Band Frequency:540-560MHz
Stop Band Attenuation：≥60dB
Connectors：SMA-Female
Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
PDF technical index download

S/N	Item	Parameters
1	Center Frequency(F0)	550MHz
2	Pass Band Frequency	540 ~ 560MHz
3	Pass Band Insertion Loss	≤1.5dB
4	Pass Band Ripple	≤0.7dB
5	Pass Band VSWR	≤1.22:1
6	Stop Band Rejection	≥60dB @ DC ~ 530MHz	≥60dB @ 570 ~ 1500MHz
7	Impedance	50 Ohms
8	Power Handling	20W Max.
9	Connectors	SMA-Female
10	Surface Finish	Painted Black
11	Temperature Range	-30℃ ~ +70℃
12	Material	Housing: 6061 Aluminum alloy Cover: LY12 Aluminum alloy Tuning screw: H62 Copper alloy	Resonant column: H59 Copper alloy Connectors: Stainless Steel Other screw: Stainless Steel
13	Dimensions	1618241mm
