  • 8.9-9.9GHz Cavity Band Pass Filter

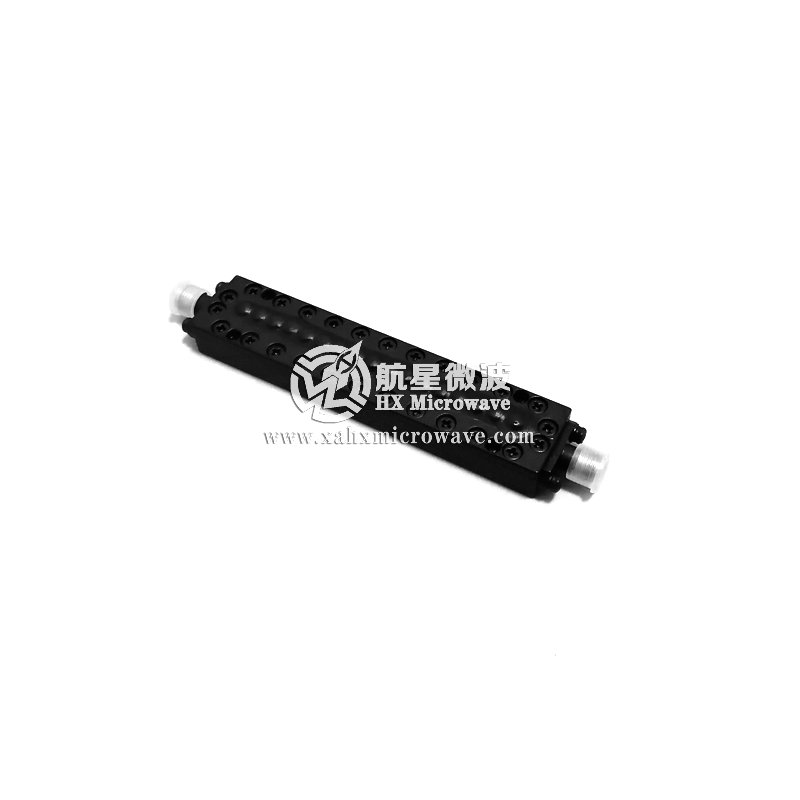

8.9-9.9GHz Cavity Band Pass Filter

8.9-9.9GHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA399
  • Pass Band Frequency:8.9-9.9GHz
  • Stop Band Attenuation:≥50dB
  • Connectors:SMA-Female
  • Product description: Small size and high cost performance_Low standing wave and low insertion loss_Inhibition of high_Ultra Wide Band Filter_Narrow Band Filter_Suspended Stripline Filter_Cavity Filter_LC Filter_Interdigit
  • PDF technical index download

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

9.4GHz

2

Pass Band Frequency

8.9 ~ 9.9GHz

3

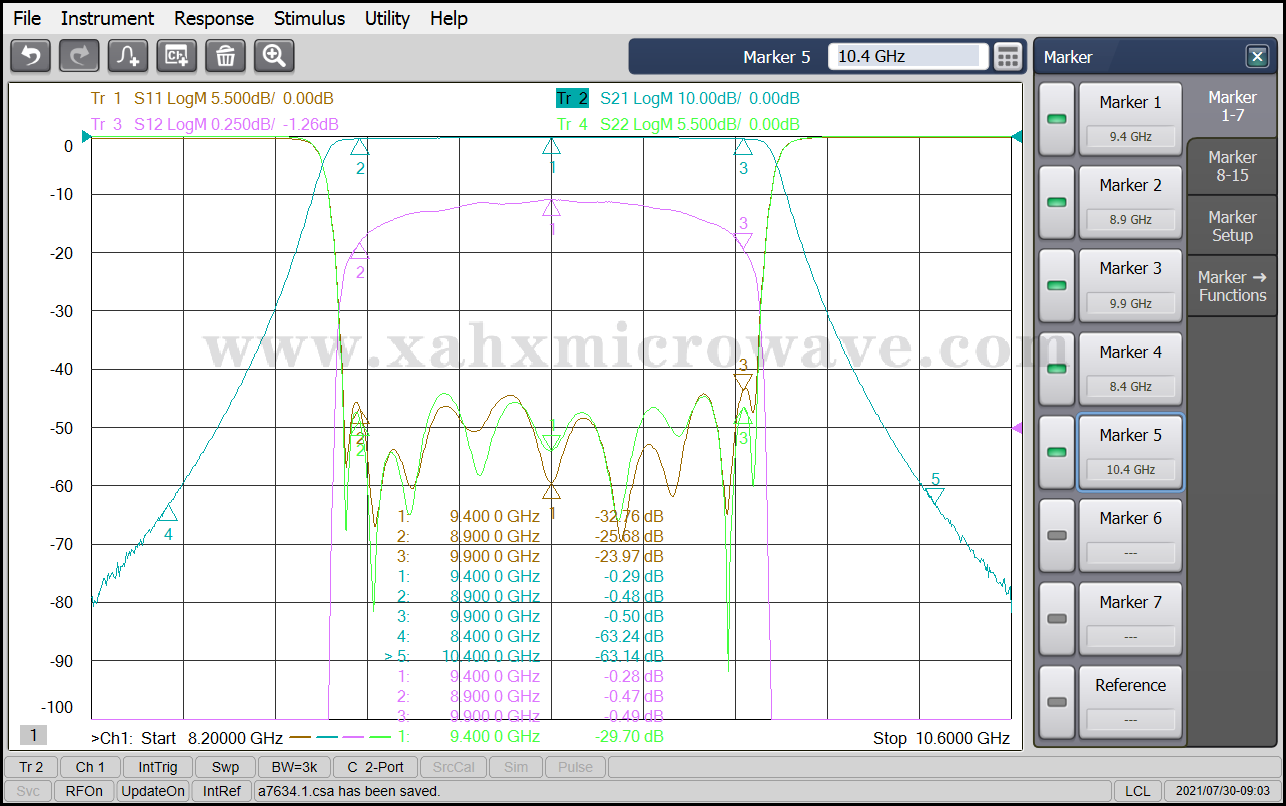

Pass Band Insertion Loss

≤1.0dB

4

Pass Band Ripple

≤0.5dB

5

Pass Band Return Loss

≥20dB

6

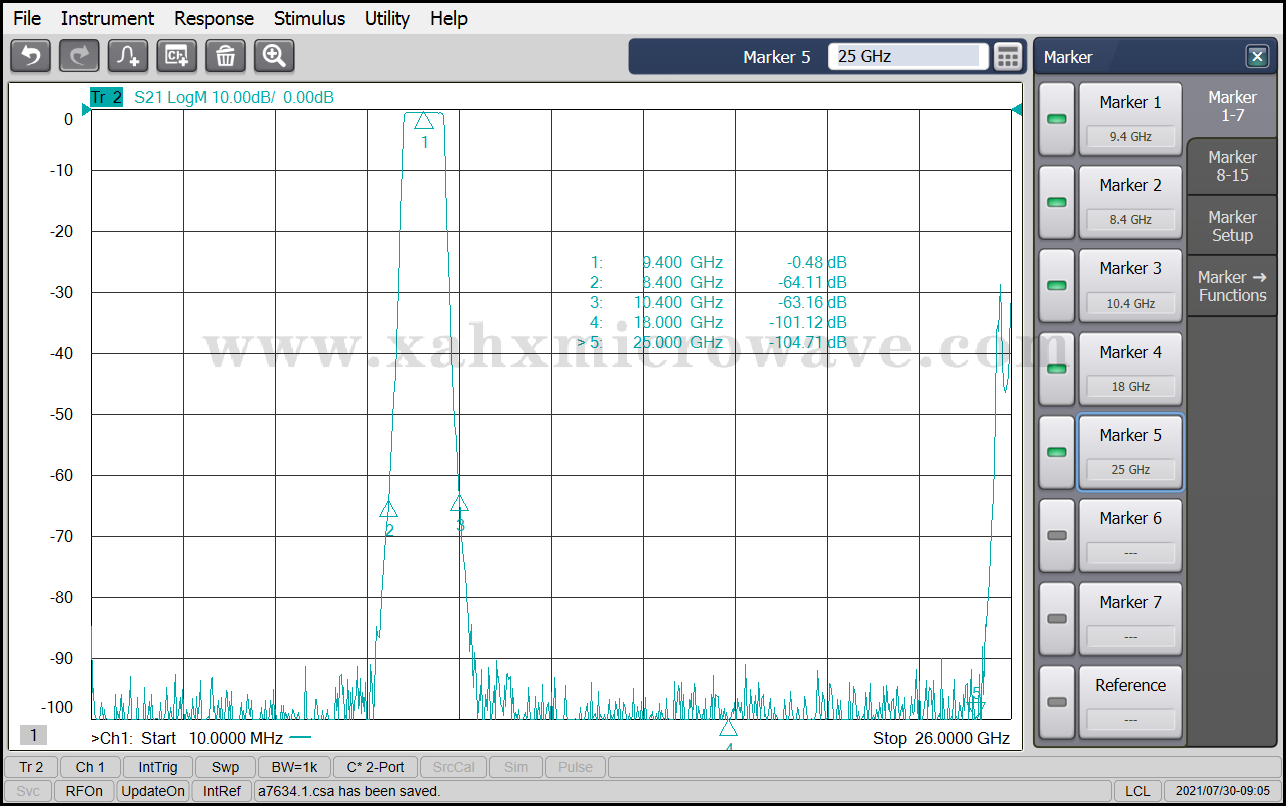

Stop Band Rejection

≥50dB @ DC ~ 8.4GHz

≥50dB @ 10.4 ~ 18GHz

7

Impedance

50 Ohms

8

Power

5W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
