Band Pass Filter

  • 2010-2025MHz Cavity Band Pass Filter

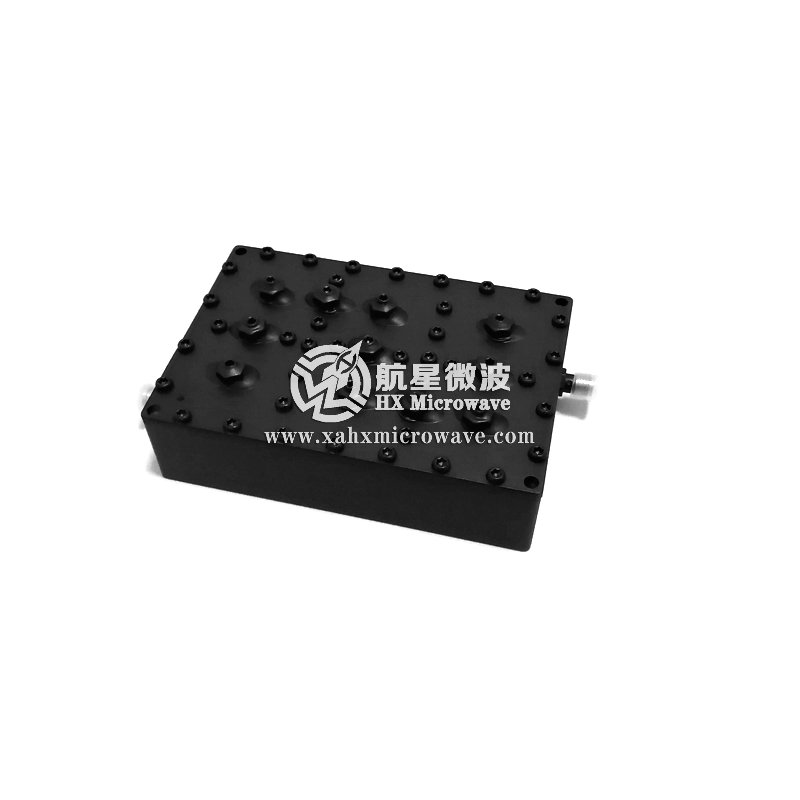

2010-2025MHz Cavity Band Pass Filter

2010-2025MHz Cavity Band Pass Filter

  • P/N: HXLBQ-DTA393
  • Pass Band Frequency:2010-2025MHz
  • Stop Band Attenuation:≥40dB
  • Connectors:SMA-Female
  • Product description: Small size and high cost performance_Low standing wave and low insertion loss_Inhibition of high_Ultra Wide Band Filter_Narrow Band Filter_Suspended Stripline Filter_Cavity Filter_LC Filter_Interdigit
  • PDF technical index download

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

2017.5MHz

2

Pass Band Frequency

2010 ~ 2025MHz

3

Pass Band Insertion Loss

≤1.0dB

4

Pass Band Ripple

≤0.3dB

5

Pass Band VSWR

≤1.22:1

6

Stop Band Rejection

≥40dB @ DC ~ 1990MHz

≥40dB @ 2045 ~ 4500MHz

7

Impedance

50 Ohms

8

Power Handling

20W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
