Band Pass Filter

  • 703-733MHz Cavity Band Pass Filter
703-733MHz Cavity Band Pass Filter

703-733MHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA386
  • Pass Band Frequency:703-733MHz
  • Stop Band Attenuation:≥40dB
  • Connectors:SMA-Female
  • Product description: Small size and high cost performance_Low standing wave and low insertion loss_Inhibition of high_Ultra Wide Band Filter_Narrow Band Filter_Suspended Stripline Filter_Cavity Filter_LC Filter_Interdigit
  • PDF technical index download

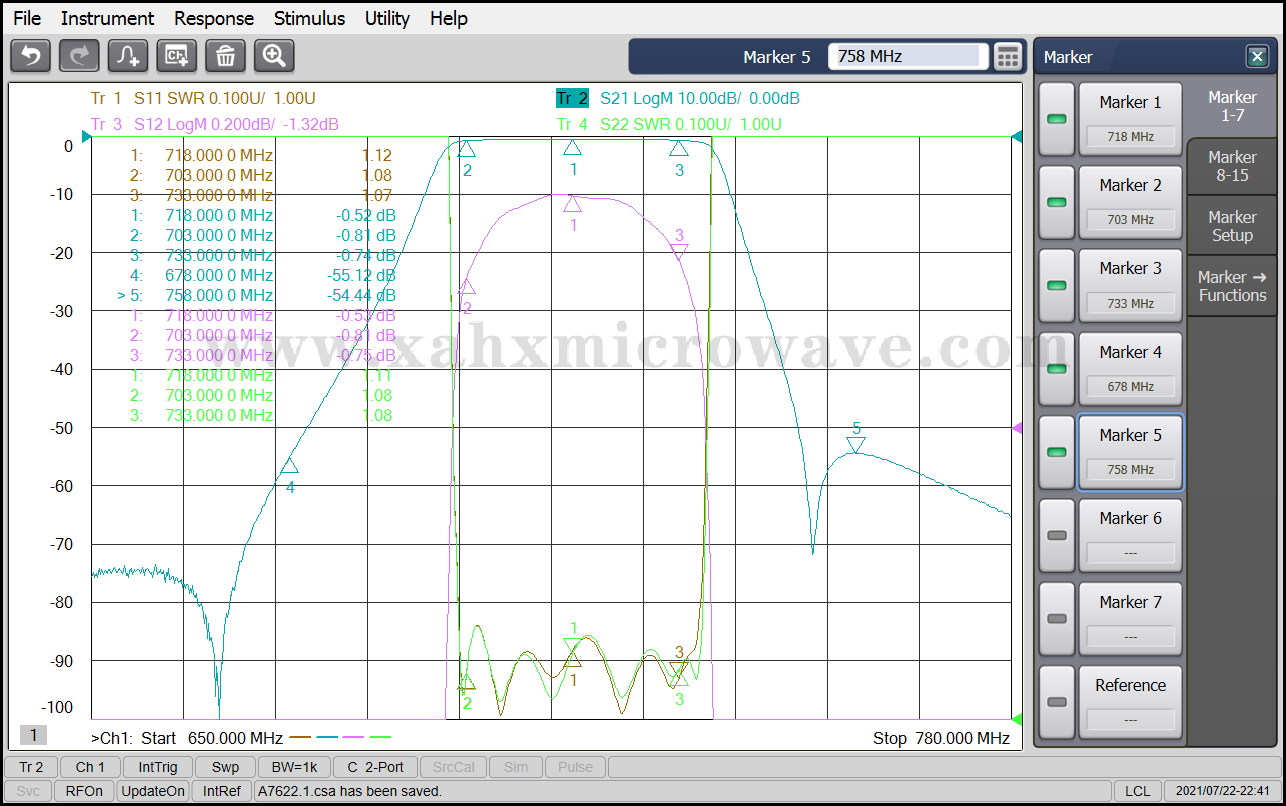

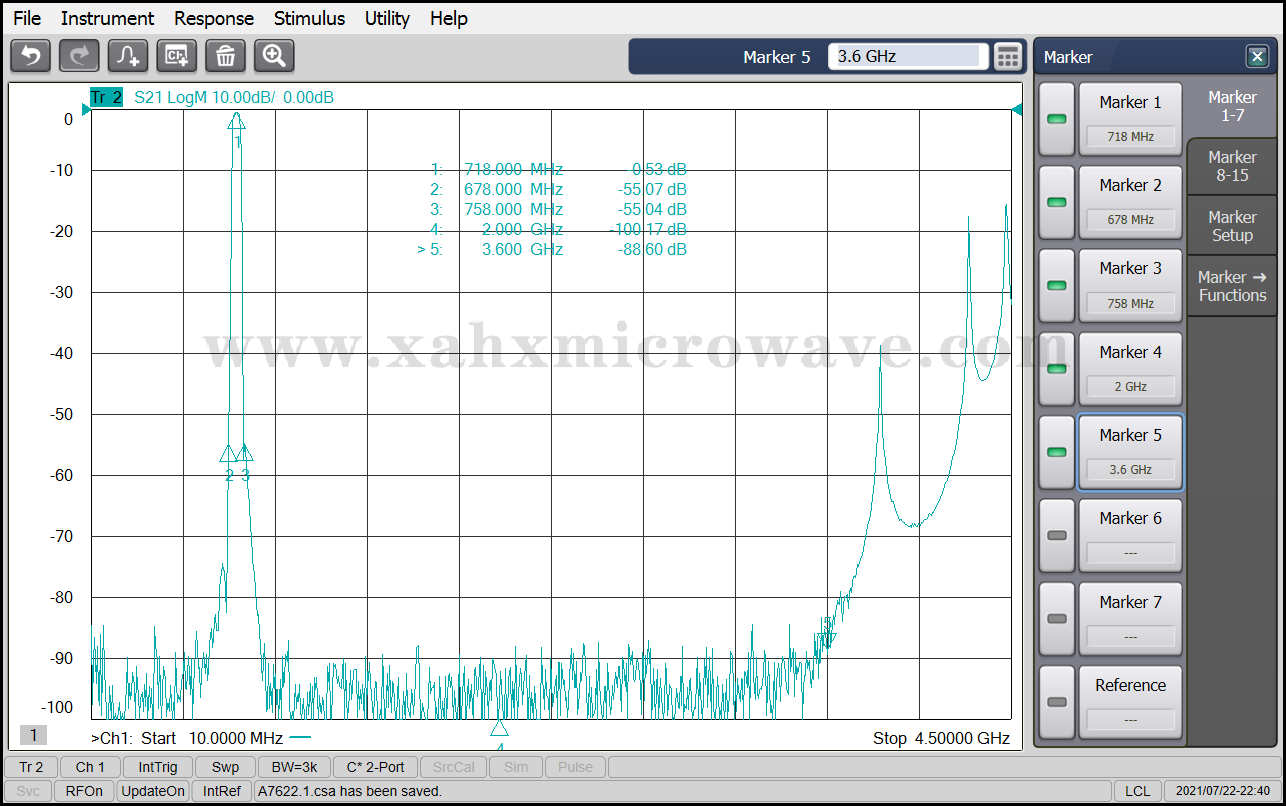

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

718MHz

2

Pass Band Frequency

703 ~ 733MHz

3

Pass Band Insertion Loss

≤1.0dB

4

Pass Band Ripple

≤0.4dB

5

Pass Band VSWR

≤1.22:1

6

Stop Band Rejection

≥50dB @ DC ~ 678MHz

≥50dB @ 758 ~ 2000MHz

7

Impedance

50 Ohms

8

Power Handling

20W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
