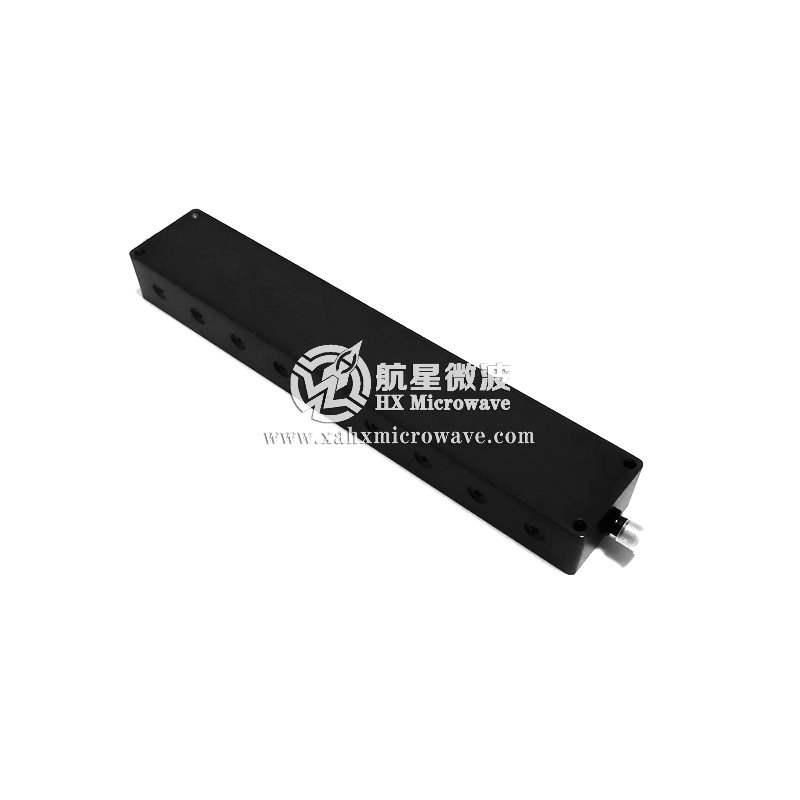

  • 2196-2306MHz Cavity Band Pass Filter
2196-2306MHz Cavity Band Pass Filter

2196-2306MHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA357X
  • Pass Band Frequency:2196-2306MHz
  • Stop Band Attenuation:≥40dB
  • Connectors:SMA-Female
  • Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
  • PDF technical index download

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

2251MHz

2

Pass Band Frequency

2196 ~ 2306MHz

3

Pass Band Insertion Loss

2.0dB

4

Pass Band Ripple

0.8dB

5

Pass Band VSWR

≤1.22:1

6

Stop Band Rejection

40dB @ F0±100MHz (DC ~ 2151MHz , 2351 ~ 4500MHz)

7

Impedance

50 Ohms

8

Power

20W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
