  • 2213-2223MHz Cavity Band Pass Filter
2213-2223MHz Cavity Band Pass Filter

2213-2223MHz Cavity Band Pass Filter

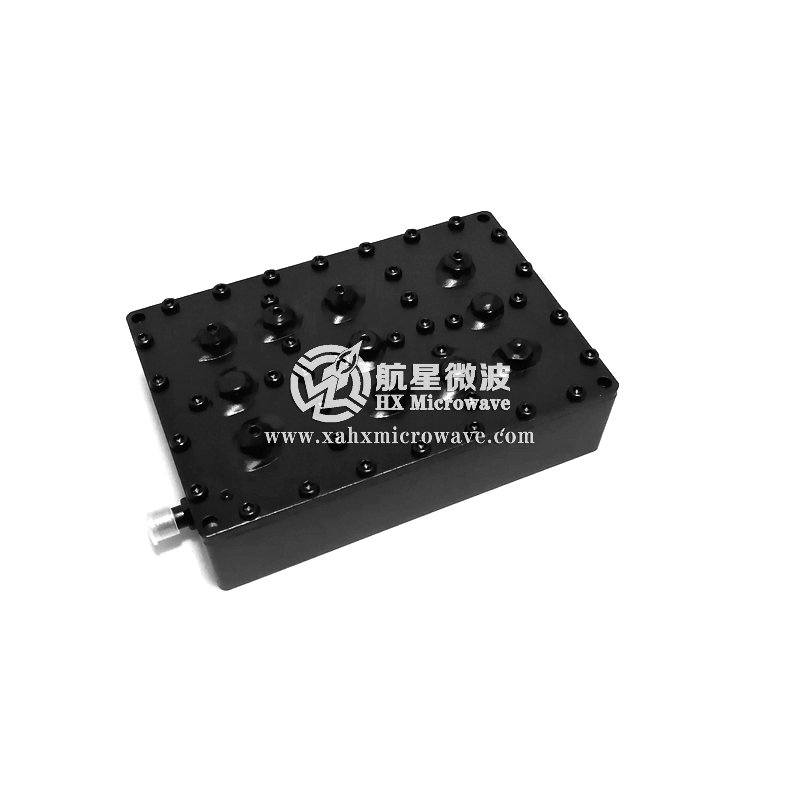

  • P/N:HXLBQ-DTA355X
  • Pass Band Frequency:2213-2223MHz
  • Stop Band Attenuation:≥40dB
  • Connectors:SMA-Female
  • Product description: Small size and high cost performance_Low standing wave and low insertion loss_Inhibition of high_Ultra Wide Band Filter_Narrow Band Filter_Suspended Stripline Filter_Cavity Filter_LC Filter_Interdigit
  • PDF technical index download

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

2218MHz

2

Pass Band Frequency

2213 ~ 2223MHz

3

Pass Band Insertion Loss

2.0dB

4

Pass Band Ripple

0.5dB

5

Pass Band VSWR

≤1.22:1

6

Stop Band Rejection

40dB @ F0±20MHz (DC ~ 2198MHz , 2238 ~ 5000MHz)

7

Impedance

50 Ohms

8

Power

10W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
