Band Pass Filter

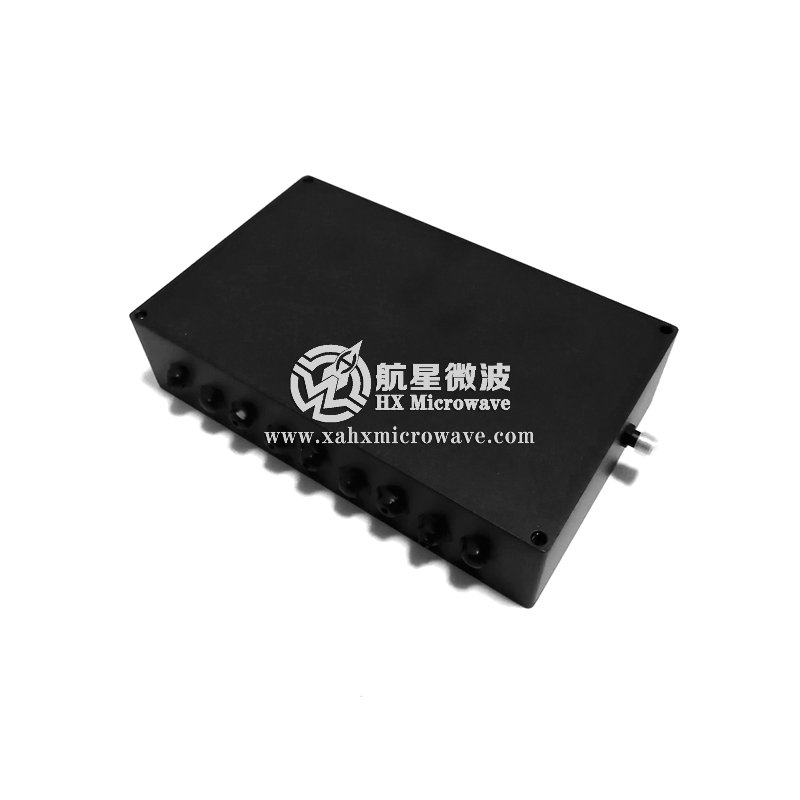

368-372MHz Cavity Band Pass Filter

P/N： HXLBQ-DTA315
Pass Band Frequency：368-372MHz
Stop Band Rejection：≥40dB
Connectors：SMA-Female
Product description: Small size and high cost performance_Low standing wave and low insertion loss_Inhibition of high__Ultra Wide Band Filter_Narrow Band Filter_Suspended Stripline Filter_Cavity Filter_LC Filter_Interdigi
PDF technical index download

S/N	Item	Parameters
1	Center Frequency(F0)	370MHz
2	Pass Band Frequency	368 ~ 372MHz
3	Pass Band Insertion Loss	≤1.0dB
4	Pass Band Ripple	≤0.3dB
5	Pass Band VSWR	≤1.3:1
6	Stop Band Rejection	≥50dB @ DC ~ 348MHz	≥50dB @ 392 ~ 1000MHz
7	Impedance	50 Ohms
8	Power Handling	20W Max.
9	Connectors	SMA-Female
10	Surface Finish	Painted Black
11	Temperature Range	-30℃ ~ +70℃
12	Material	Housing: 6061 Aluminum alloy Cover: LY12 Aluminum alloy Tuning screw: H62 Copper alloy	Resonant column: H59 Copper alloy Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel
13	Dimensions	1539335mm
